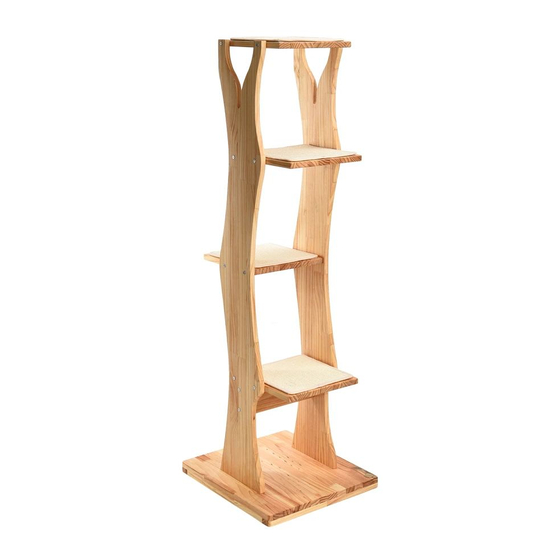

Meowingtons PERCH TREE Instructions

NOTE: 2-person assembly required. It is suggested that you have a Building Buddy to help you assemble this tree (and maybe a glass of wine).
And no matter what your Building Buddy says, yes, you do need the instructions. If you're more of a visual person, check out our instructional
1
– 2PCS
A – 2PCS B – 24PCS
8mmX40mm 6mmX35mm

STEP 1

Insert Wooden Dowels (A) into
bottom of both Side Panels (1).
P E R C H T R E E C AT TO W E R I N S T R U C T I O N S
video at https://www.meowingtons.com/pages/help
2
– 1PCS
C – 1PC

STEP 2

Holding Side Panels (1), Insert
Bolts (B) into bottom of Base
Platform (2) and into bottom-most
holes of Side Panels (1). Lightly
Tighten with Allen Wrench. Do not
overtighten bolts.

PARTS LIST

3
– 1PCS
D – 1PC E – 1PC
4.8mmX30mm 5mmX30mm

STEP 3

Insert Bolts (B) into the 2 bottom-
most holes on both Side Panels
(1) and attach to Support Bar (3).
Lightly tighten Bolts (B) with
Allen Wrench.
4 5
– 3PCS – 1PCS
F – 1PC
4mm

STEP 4

Starting at the bottom of tree
and working up, attach 3 Middle
Platforms (4) to both Side Panels
(1) using Bolts (B). Lightly tighten
Bolts (B) with Allen Wrench.
6
– 4PCS
G – 1PC
