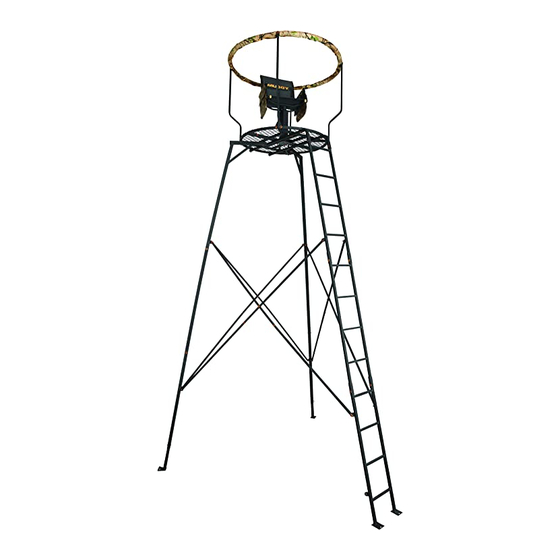

The 4 foot extension kit for liberty

Advertisement

INSTRUCTION MANUAL
The 4 Foot Extension Kit
ATTENTION!! WHEN YOU SEE A "
THE INFORMATION CONTAINED IN THESE MESSAGES CAN SAVE YOUR LIFE!!
!
WARNING
Failure to read and strictly comply with the instructions contained in this Instruction Manual may result in serious injury or death!
!
WARNING
FALLS FROM A FREESTANDING PLATFORM CAN OCCUR ANYTIME AFTER LEAVING THE GROUND. THESE FALLS RESULT IN EITHER
SERIOUS INJURY OR DEATH! FOR YOUR PERSONAL SAFETY, PLEASE TAKE A MOMENT TO CAREFULLY READ THIS PRODUCT INSTRUCTION
MANUAL IN ITS ENTIRETY BEFORE ATTEMPTING TO ASSEMBLE, SET UP, INSTALL, REMOVE AND/OR OTHERWISE USE THIS MUDDY® PRODUCT.
AT LEAST ANNUALLY, REVIEW THE CONTENTS OF THIS INSTRUCTION MANUAL. ADDITIONALLY, KEEP THESE INSTRUCTIONS FOR THE ENTIRE
DURATION THAT YOU OWN THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH!
!
WARNING
THE SAFE USE AND OPERATION OF THIS PRODUCT IS THE SOLE RESPONSIBILITY OF THE USER. IT IS ALSO THE SOLE
RESPONSIBILITY OF THE OWNER TO PROVIDE ANY PERSON(S) WHO BORROW OR PURCHASE THIS PRODUCT WITH THIS INSTRUCTION
MANUAL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH! ADDITIONALLY, FAILURE TO FOLLOW THIS
INSTRUCTION MAY SUBJECT YOU TO PERSONAL LIABILITY PENALTIES AS DETERMINED BY THE U.S. JUDICIAL SYSTEM.
!
WARNING
DO NOT use this or any other Muddy® product(s) if you have a history of heart problems, back problems, impaired vision, joints that lock
up, spinal fusions, equilibrium problems, high blood pressure, are not well-rested and/or any other physical impairment that may limit your ability to
use and/or operate this product(s) in the safe manner outlined in this Instruction Manual. Additionally, do not use this or any other Muddy® product(s)
if you are currently taking any medication (including prescription) and/or using and/or consuming any substance, including alcohol, that may limit your
ability to use this Muddy® product(s) as outlined and described in the Instruction Manual. Never use a freestanding platform when feeling ill, nauseous
or dizzy. Failure to follow these instructions may result in serious injury or death!
!
WARNING
Do not remove, modify and/or omit any portion or otherwise mechanically modify this product(s) or its assemblies in any manner.
Modification, misuse and/or part substitution shall immediately void your factory warranty and may result in serious injury or death! If you suspect
that a part(s) is missing and/or defective, immediately contact Muddy® at (844) 745-7723 for replacement of missing or defective parts. ALWAYS
USE GENUINE FACTORY AUTHORIZED REPLACEMENT PARTS. USE OF ANY REPLACEMENT PARTS OTHER THAN GENUINE PARTS VOIDS YOUR
WARRANTY AND MAY RESULT IN SERIOUS INJURY OR DEATH!
PO Box 454 • Windom, MN 56101 • (844) 745-7723 • 507-832-8322
This Instruction Manual complies with the Treestand Manufacturers Association's TMS 04 - Standard Practice for Treestand Instructions and
TMS 02 - Standard Test Method for Treestand Fall Arrest Systems
for Liberty
Model MTA3004-EX
www.GoMuddy.com
March 2015. Published by Premier Outdoor Equipment, LLC, Windom, Minnesota.
© 2015 Premier Outdoor Equipment, LLC All rights reserved.
WARNING!" BE SURE TO HEED THE MESSAGE!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTA3004-EX and is the answer not in the manual?

Questions and answers

Summary of Contents for Muddy MTA3004-EX

  • Page 1 WARNING DO NOT use this or any other Muddy® product(s) if you have a history of heart problems, back problems, impaired vision, joints that lock up, spinal fusions, equilibrium problems, high blood pressure, are not well-rested and/or any other physical impairment that may limit your ability to use and/or operate this product(s) in the safe manner outlined in this Instruction Manual.
  • Page 2 WARNING! Do not attempt to use this or any other Muddy® product(s) when ice, snow and/or freezing rain has deposited or formed on any portion of the stand you intend to climb. Do not attempt to use this or any other Muddy® product(s) when thunderstorms are threatening and/or present within five (5) miles.
  • Page 3 MTA3004-EX 4 Foot Extension Kit for Liberty WARNING! Read all assembly, field assembly and safety instructions associated with the Liberty Tripod prior to using this product. Failure to follow these instructions and warnings may result in serious injury or death! IMPORTANT NOTES: These instructions assume you have fully assembled your existing MTP3000 Liberty Tripod.
  • Page 4 STEP 9. Using (2) 5/16’’ x 2 1/4’’ hex bolts [D], (4) nylon washers and (2) 5/16’’ MTA3004-EX FIG 5 nylock nuts secure the cross supports and x supports to the ladder section extension. (Fig. 6) STEP 10. SECURELY TIGHTEN ALL NUTS AND BOLTS.
