IBOX AURORA K-2R MECHANICAL
KEYBOARD
SPECIFICATION
• Mechanical gaming keyboard
• USB interface, Plug & Play
• Number of keys: 87
• Content Blue Switch
• Stroke height: 4 mm
• Press force: 60 grams
• Insertion distance: 2.2 mm for activation
• N-Key Rollover
• RGB backlight
• Laser print on the keys
• Key lifetime: 50 million clicks
• Braided cable: 1.5 m
• Size: 358 x 137 x 37 mm
• Weight: 1.01 kg
• Compatible with Windows 7/8/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AURORA K-2R and is the answer not in the manual?

Questions and answers

Related Manuals for iBox AURORA K-2R

Summary of Contents for iBox AURORA K-2R

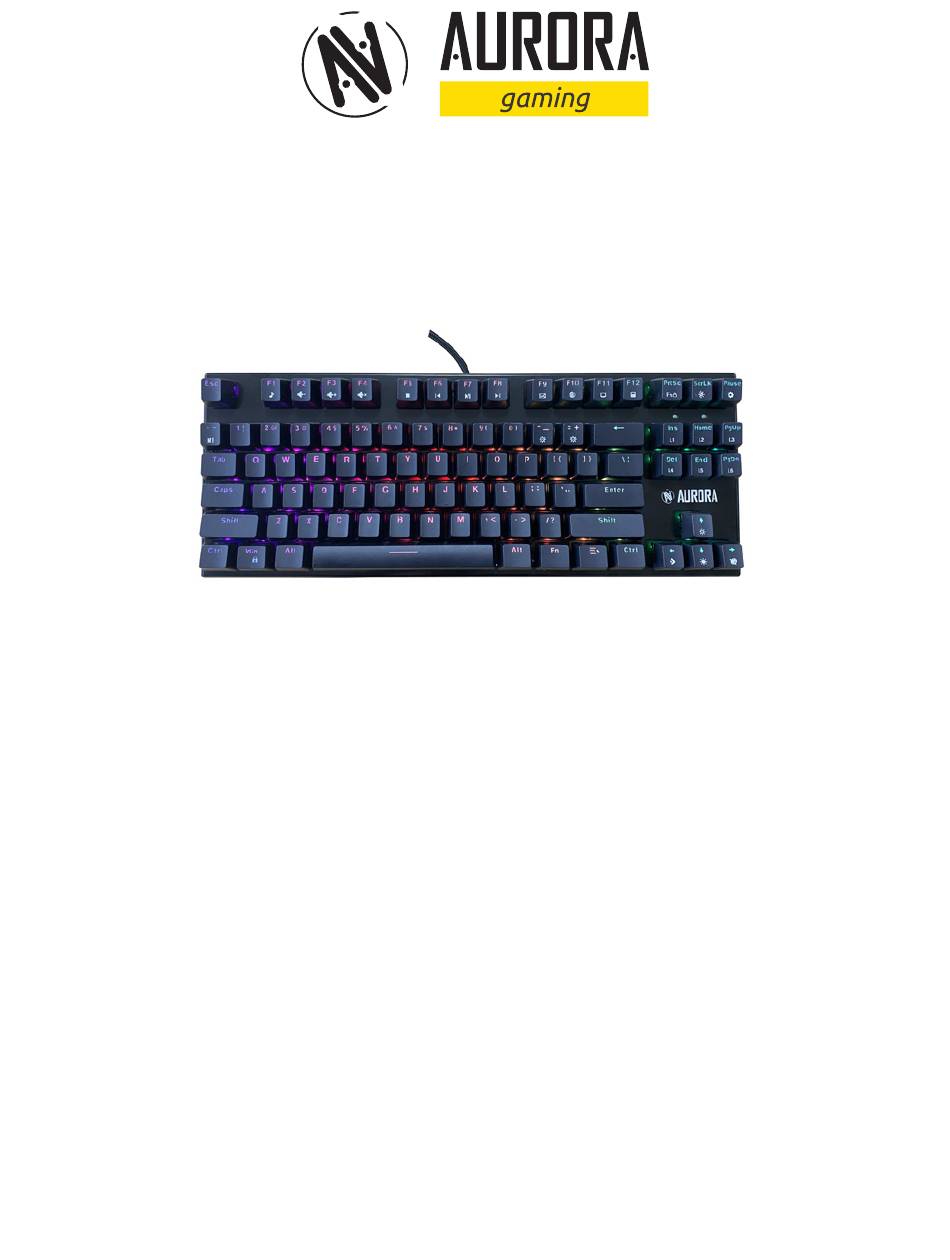

  • Page 1 IBOX AURORA K-2R MECHANICAL KEYBOARD SPECIFICATION • Mechanical gaming keyboard • USB interface, Plug & Play • Number of keys: 87 • Content Blue Switch • Stroke height: 4 mm • Press force: 60 grams • Insertion distance: 2.2 mm for activation •...

  • Page 2: Installation

    INSTALLATION Plug and Play keyboard. After connecting with a USB cable, the PC will detect the keyboard automatically. To use the macro function please install the software available on web site: www.ibox.eu FUNCTIONS AVAILABLE KEYBOARD SHORTCUTS Fn + F1 – Media Player...
  • Page 3 Fn + PrtSc – Lock Fn button Fn + ScrLk - Turn off/on the backlight Fn + Win – disable accidental pressing of the Win + L buttons (Windows button lock) Fn + Pause - Reset to factory settings (hold for 3 sec.) CHANGE LIGHTING EFFECTS The choice of effects is made by a combination of buttons: Fn+Insert / Fn+Home / Fn+PgUp / Fn+Del / Fn+End / Fn+PgDn...

  • Page 4: Color Setting

    Fn + M1 combination. SOFTWARE INTERFACE Download the software from our website and install it in the PC supporting Windows system. Website: https://ibox.pl/en/keyboards/2376-aurora-k2rgb.html Thanks to the software, you can program macro functions and easily manage the lighting effects and key colors.
  • Page 5 1. Profile name/Adding new profile 2. Light settings 3. Assign button functions 4. Assign macro settings 5. System settings 6. Rename a profile 7. Profile management 8. Manage lighting effects 9. Preview of keyboard settings...
  • Page 6 Light settings In this section, you can choose a lighting effect (e.g. corrugated) and cho- ose the colors, brightness, speed of the effects and direction (from right to left or from left to right).
  • Page 7 Button Settings In this section, after selecting the button, you can assign a selected function: - running the macro command (registered in the macro management section); - office tools like copy/paste etc.; - multimedia functions; - mouse button etc. After selecting the appropriate option, press the floppy disk icon on the right side of the screen.
  • Page 8 Macro Management In this section you can register macro command. Pressing the REC button will start to record commands. The button changes to STOP and this is where we finish recording. In the tools panel, we can change the delay time, the order of individual commands and remove them.
  • Page 9 Other Settings In this section, you can disable the Windows key. So accidental pressing Win+L does not interfere with the game. It is also possible to swap the action of the directional arrow keys with WSAD keys as well as enable / disable the N-Key Rollover function (which allows the keyboard to register simultaneous pressing of many keys).
  • Page 10 Environmental protection guidelines This device has been marked in accordance with the European Directive 2012/19/EU and Polish Act on waste electric and elec- tronic equipment with a crossed-out waste bin symbol. This sign informs that the equipment must not be disposed of together with other household waste after its service life has expired.

  • Page 11: Eu Declaration Of Conformity

    EU DECLARATION OF CONFORMITY (no. IKGMK2R/2020/CE/1) Product: PC keyboard iBOX Aurora K-2R (model no. IKGMK2R) Manufacturer: Impet Computers Sp. z o.o. ul. Marywilska 34 03-228 Warszawa Poland This declaration of conformity has been issued upon total respon- sibility of the manufacturer. The aforesaid subject of the declara- tion complies with the Electromagnetic Compatibility Directive 2014/30/EU.
