Teknim TFCM-1801 User Manual

Programming Unit

General Information

TFCM-801 programming module is developed to read
and write the parameters of the terminal units such as
TFP-12XX series addressable detector, input-output
modules.
User friendly menu interface and controls provide easy
to use.

Usage areas:

•
Read existing addresses of the end units and
change their addresses
•
Read versions of end points.

Technical information

Battery Type
Operating temperature
Weight

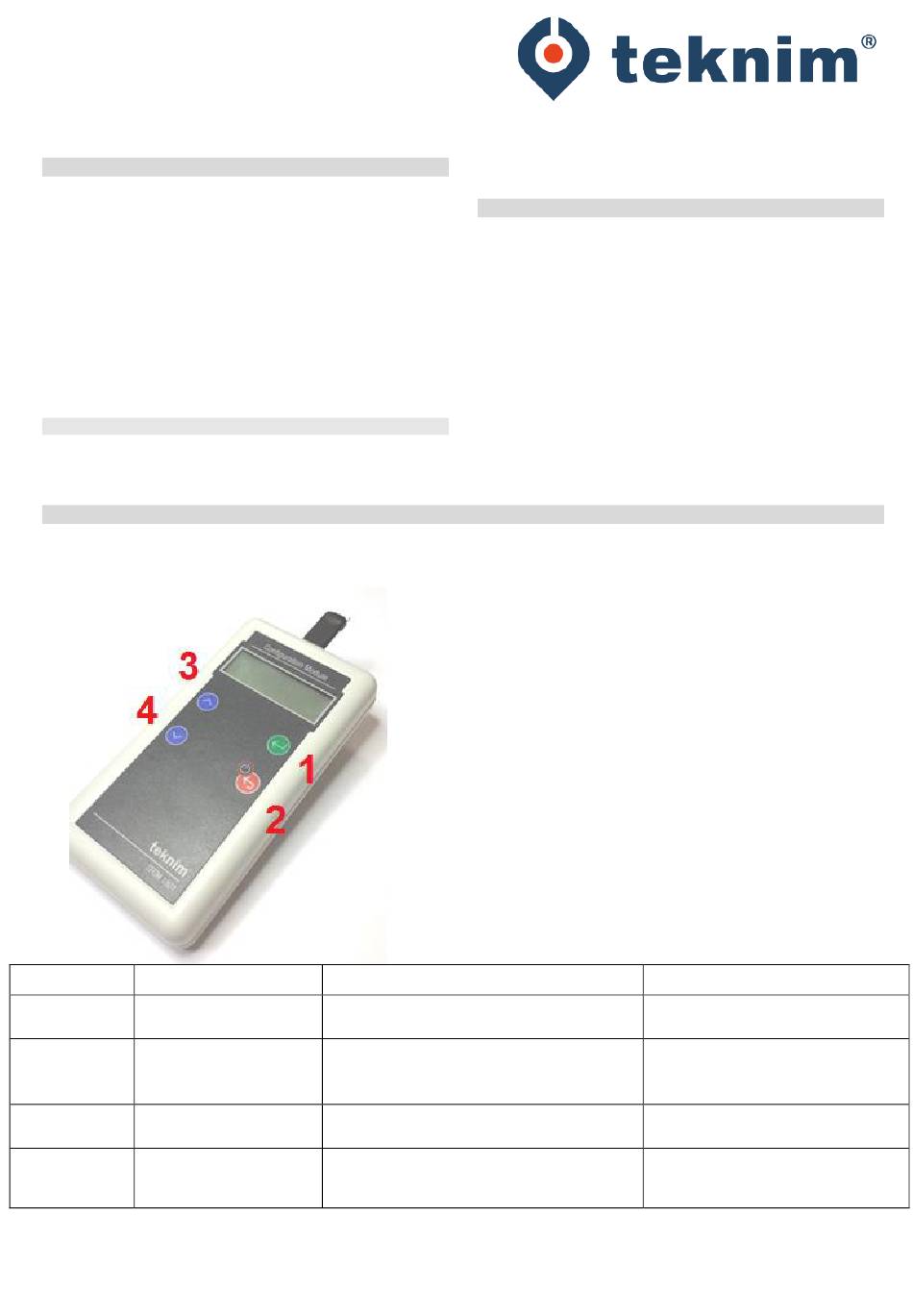

DEVICE PROPERTIES

Teknim analog analogue addressable systems endpoints have a pair of 4-wire female to 8-pin connectors for
control via the programming module. The data exchange of the endpoint is done via this connector.
Button Function1 (Menu)
Enter (Green) - Access sub-menu
(1)
Back (Red) - Back to top menu
(2)
Up (Blue) - Show previous menu
(3)
Down (Blue) - Show next menu
(4)
1
TFCM-1801
USER MANUAL
: 9V ( 6LR61 )
: -10°C / +50°C
: 95,2 gr (without battery)
Function2 (in the submenu)
- Confirm
- Refresh the value on the screen
- Exit the menu
- Increase count (during write operations)
- Reset screen (during reading)
-Decrease count (during write operations)
Issue Date: 28 / 09 / 2017 R:02

Battery Assembly

A 9V battery is required for operation of the
programming module (provided with the product). The
battery supplied for the first time must be installed
correctly. Steps for installing the battery:
1) Remove the battery case cover at the back of
the box.
2) Connect connector correctly
3) Install in the battery socket
4) Close the cover
After this, the programming module is available.
Caution: Do not leave the endpoints plugged
into the programming module, which will cause
the battery to run out quickly.
Additional function
-
- Close programming
(long press)
- Run the programming module
-
-
module
