Summary of Contents for E&P HYDRAULICS LEVEL SYSTEM CARAVAN

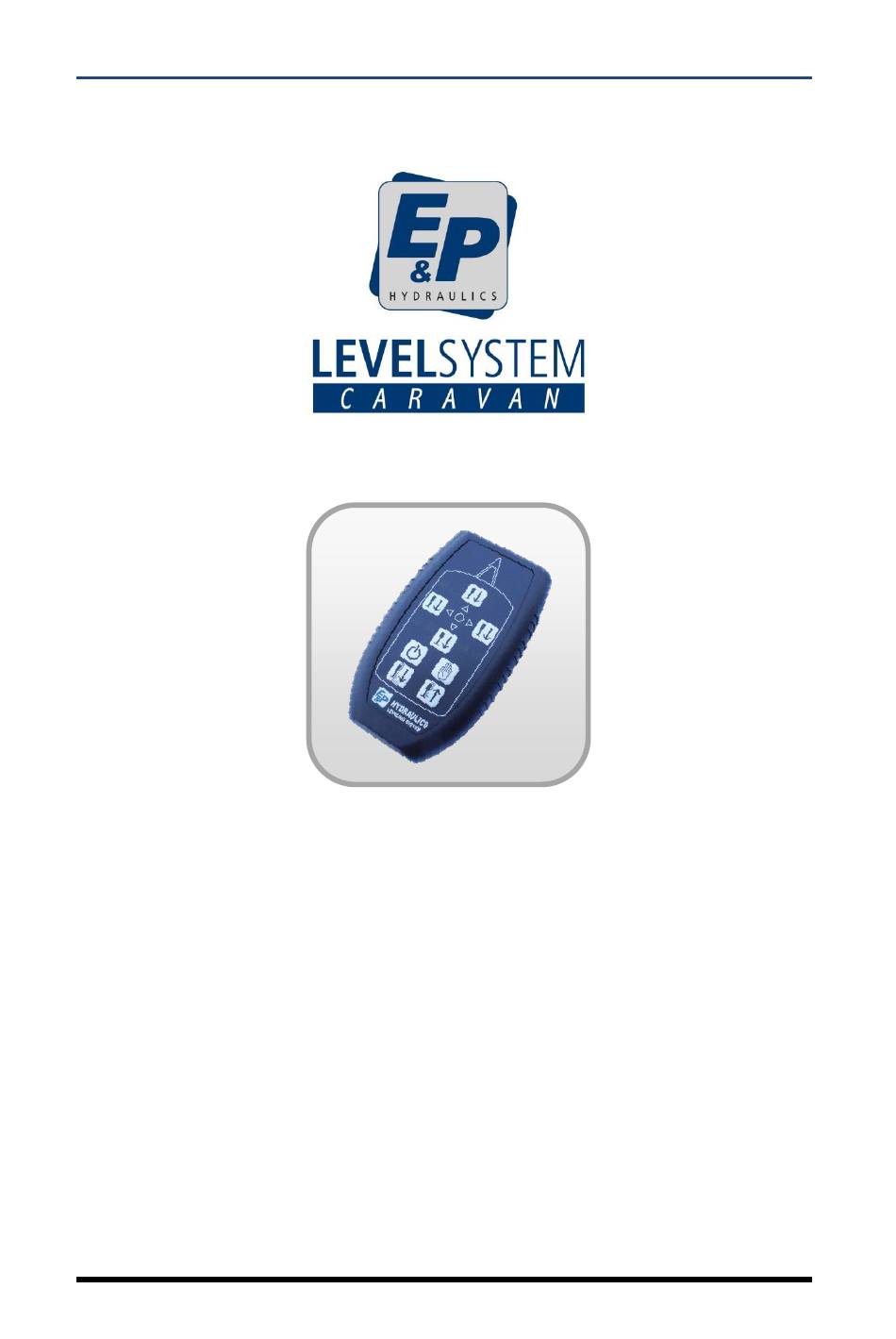

- Page 1 User manual E&P HYDRAULICS • Remote control Caravan...
- Page 2 User manual E&P HYDRAULICS Copyright © 2013, E&P Hydraulics This manual is copyrighted, with all rights reserved. Under the copyright laws, this may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable from without prior written consent of E&P Hydraulics. Limited Warranty Under all circumstances this manual should be read thoroughly, before installing and/or using the product.
-
Page 3: Table Of Contents
User manual E&P HYDRAULICS Table of contents Preface ………………………………………………………………………………... Chapter 1 Remote control caravan EPRC-02 …………… Unpacking the remote control …………… Specific features of the remote control …………… Product labelling Chapter 2 Installation …………… Before …………… Programming the remote control ……………………………………….. -
Page 4: Preface
User manual E&P HYDRAULICS Preface The E&P Hydraulics Remote control combines the demand for fixed (built in operating unit) and remote controlled operation of the Caravan level system. The ergonomic design ensures effortless handling and the sympathetic good looks will automatically enhance your working environment It is based on proven E&P Hydraulics technology which forms the basis of all our E&P Hydraulics products. -
Page 5: Unpacking The Remote Control
User manual E&P HYDRAULICS 1.1 Unpacking the remote control Remove the remote control and it’s accessories from the box and packing material. Refer to the packing list to make sure you have received all the items ordered. Visually inspect the remote control and accessories for any evidence of physical damage. Immediately contact E&P Hydraulics if anything appears to be damaged. -
Page 6: Specific Features Of The Remote Control
User manual E&P HYDRAULICS 1.2 Specific features of the remote control Topview remote control caravan (12) (14) (10) (13) (15) (11) EXPLANATION: BUTTONS & LEDS (1) LED: slope to steep (10) Button: extension supports left-hand-side (2) LED: battery power (11) Button: extension supports rear-side (3) LED: front wheel (12) Button: extension supports front-side (4) LED: supports not withdrawn... - Page 7 User manual E&P HYDRAULICS 1.2 Specific features of the Remote control (continued) INDICATOR LEDS EXPLANATION: LEDS SLOPE IS TO In this position the caravan cannot be levelled, STEEP as the ground on which it is standing is too uneven. Switch over if necessary to manual control. INSUFFICIENT The battery has insufficient power.
-
Page 8: Product Labelling
User manual E&P HYDRAULICS 1.3 Product labelling The product CE label is present on the back side of the product as indicated in the illustration below. Another registration label is not directly visible, but is located inside the product, behind the battery cover. All labels are attached by the manufacturer and should not be removed. -
Page 9: Chapter 2 Installation
User manual E&P HYDRAULICS 2. Installation 2.1 Before The procedure described below has already occurred with your installer/dealer. So you do NOT need to perform this procedure itself. E&P Hydraulics has chosen to add this additional chapter in this user’s guide just in case of failure and or after service/repair. -
Page 10: Programming The Remote Control
User manual E&P HYDRAULICS 2.2 Remote control programming Step 1. In order to pair the remote control to the system, remove the fuse (30Amp.) out of the cable assembly from the hydraulic levelsystem or disconnect the de 9 pins cable connector from the main unit. (do this by gently pressing the two hooks on the side of the connector) “deploy jacks... -
Page 11: Chapter 3 Technical Specifications
User manual E&P HYDRAULICS 3. Specifications Electrical: Power 9V. PP3 (battery) Compatibility: 868MHz. EN300220 – EN301489 – EN60950 Physical: Weight (Remote control) 145 Gr. Weight (Holder) 10 Gr. Dimensions: Length x Width x Height 140 x 83 x 24 mm. Environmental: Operating temperature -20˚C - 40˚C... -
Page 12: Chapter 4 Users Advices (Tips)
User manual E&P HYDRAULICS 4. Users advices (tips) 4.1 Antenna The main-unit (operating system) and the antenna are build in together with the hydraulic pump in a plastic casing (pumphousing). At older systems (before 2013) it is likely that the main unit (operating system) is of an older type. - Page 13 E&P HYDRAULICS www.ep-hydraulics.co.uk Made in Holland...
