MOTORSCAN 5950 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.obd2express.co.uk

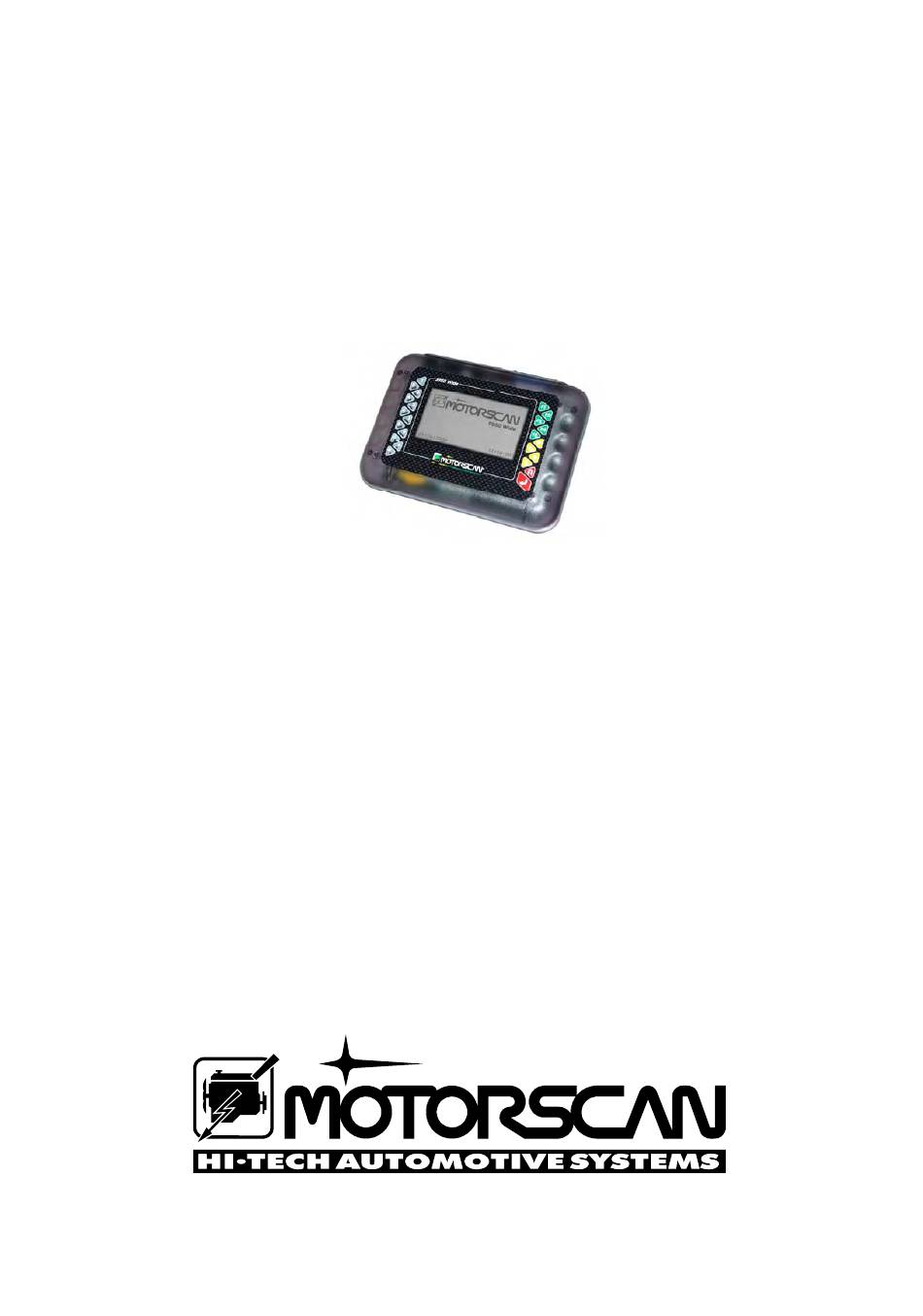

WIDE
135950HUK*B
March, 2012
PART NUMBER. 5950
OPERATING MANUAL
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5950 and is the answer not in the manual?

Questions and answers

Summary of Contents for MOTORSCAN 5950

  • Page 1 WIDE 135950HUK*B March, 2012 PART NUMBER. 5950 OPERATING MANUAL ®...
  • Page 2 ® WIDE 5950 Dear Customer, This product is part of the MOTORSCAN ® family of products. It is the result of many years of research and development. MOTORSCAN ® is glad to have you as a customer. Please contact one of our authorized distributors or our customer service department for any technical questions.

  • Page 3: Table Of Contents

    135950HUK*B ® WIDE 5950 INDEX   INDEX ................................... i   INTRODUCTION ................................1   IMPORTANT INFORMATION ABOUT PERSONAL SAFETY ................2   IMPORTANT INFORMATION ABOUT PRODUCT SAFETY ................. 5   GENERAL INFORMATION ............................. 5   INSTALLATION ..............................5  ...
  • Page 4 135950HUK*B ® WIDE 5950 ®   HARLEY-DAVIDSON QUICK START PROCEDURE..................... 45   4.1 STEP 1: USING THE VEHICLES LIST ......................45   4.2 STEP 2: CONNECTING THE HARLEY DAVIDSON CABLE TO THE SCANNER ........45   4.3 STEP 3: LOCATING THE MOTORCYCLE DIAGNOSTIC PORT ..............46  ...

  • Page 5: Introduction

    Brand names and products mentioned in the document are registered brands of the relevant owners. MOTORSCAN S.p.A. is not responsible to third parties for specific, collateral, accidental, direct, or indirect damage related to, or deriving from the product purchase and use.

  • Page 6: Important Information About Personal Safety

    135950HUK*B ® WIDE 5950 IMPORTANT INFORMATION ABOUT PERSONAL SAFETY GENERAL SAFETY IN the WORKSHOP. DANGER OF SUFFOCATION GASOLINE ENGINES Exhaust gases from gasoline vehicles contain Carbon Monoxide, a colorless and odorless gas which, in case of inhalation, can cause serious physical injury or death. When working under a vehicle, be very careful. Some components of exhaust gases are heavier than air.
  • Page 7 135950HUK*B ® WIDE 5950 DANGER OF BURNS Some of the components in engines (exhaust gas manifold, etc.) can become very hot, as can certain sensors. Remember to never touch these parts. SAFETY MEASURES: Wear protective gloves. Never allow the test instrument connection wires to rest on or near hot parts. Never keep the engine running after the tests.
  • Page 8 135950HUK*B ® WIDE 5950 DANGEROUS VOLTAGE Work safely on vehicle electrical systems. Do not touch electrically “live” parts of engines. Be aware of the risk of shock from damaged connections. SAFETY MEASURES: Only use the cables supplied with the test instrument. Make sure that the insulation is not damaged.

  • Page 9: Important Information About Product Safety

    WIDE 5950 IMPORTANT INFORMATION ABOUT PRODUCT SAFETY This MOTORSCAN product provides a high level of protection against the risk of electric shock. The installer is responsible for connecting it to a correctly grounded electrical socket. Seek technical assistance before using an adapter or extension cable. These devices could interfere with the grounding circuit.

  • Page 10: Symbols

    135950HUK*B ® WIDE 5950 SYMBOLS Symbols used in the DEVICE: ALTERNATING CURRENT GROUND PROTECTION CONSULT THE INSTRUCTION MANUAL RISK OF BURNS RISK OF ELECTROCUTION NEVER ATTEMPT TO REMOVE THE COVER (operation only to be carried out by qualified technicians) CE CONFORMITY MARK It indicates compliance with the relevant European Union Directives.

  • Page 11: Product Description

    PRODUCT DESCRIPTION 1.1 GENERAL The WIDE 5950 is a compact, user-friendly scan tool. This state-of-the-art technology that allows diagnostics on all types of motorcycle communication protocols. The tool comes in a handy carrying case, to protect the tool and carry diagnostic cables.

  • Page 12: Specifications

    135950HUK*B ® WIDE 5950 1.2 SPECIFICATIONS DIMENSIONS: 240 mm x 190 mm x 50 mm WEIGHT: 1 kg approx. (tool only, without accessories) POWER SUPPLY: 8 ÷ 45 Vcc (typically 12 V from battery or vehicle diagnostic socket) or (15 V with power supply) 3.5 W @ 12 V...

  • Page 13: Front / Connections View

    135950HUK*B ® WIDE 5950 1.3 FRONT / CONNECTIONS VIEW PRODUCT DESCRIPTION ENGLISH...

  • Page 14: Regulating Contrast

    135950HUK*B ® WIDE 5950 1.4 ADJUSTING CONTRAST The display on the scan tool can be adjusted by the operator by increasing or decreasing the contrast as required. To adjust contrast, proceed as follows: turn on the device by pressing one of the arrows underlined in the picture.

  • Page 15: Standard Accessories

    135950HUK*B ® WIDE 5950 1.5 STANDARD ACCESSORIES Next to each motorcycle model in the “Vehicles List” you can find the part number for the cable required for a particular function. DESCRIPTION and PART N°. PICTURE Carrying case Carrying case varies by region/ country of sale...
  • Page 16 135950HUK*B ® WIDE 5950 DESCRIPTION and PART N°. PICTURE Master Cable Part number: SL010474 Required for the following cables: KAWASAKI 4 Pin SL010458 KAWASAKI 8 Pin SL010459 HONDA 4 Pin SL010460 HONDA 3 Pin SL010461 HONDA 2 Pin SL010462...
  • Page 17 135950HUK*B ® WIDE 5950 DESCRIPTION and PART N°. PICTURE BMW Slave Cable Part number: SL010478 Harley-Davidson Slave Cable Part number: SL010480 OBDII Slave Cable Applications: Triumph Part number: SL010481 Packard Slave Cable Applications: Aprilia , Bimota, Cagiva , Ducati, Gas...

  • Page 18: Optional

    135950HUK*B ® WIDE 5950 1.6 OPTIONAL The part number for the cable required for a particular function is next to each motorcycle model in the “Vehicles List”. Exact cables included vary by kit. Consult distributor. DESCRIPTION and PART N°.
  • Page 19 135950HUK*B ® WIDE 5950 DESCRIPTION and PART N°. PICTURE HONDA 2 Pin Slave Cable Part number: SL010462 SUZUKI 6 Pin Slave Cable Part number: SL010463 SUZUKI 4 Pin Slave Cable Part number: SL010464 YAMAHA 3 Pin Slave Cable Part number:...
  • Page 20 135950HUK*B ® WIDE 5950 DESCRIPTION and PART N°. PICTURE APRILIA/DITECH Slave Cable Applications: Aprilia Ditech system. Part number: SL010483 WARNING: do not use on Honda systems with blinking codes. KTM Slave Cable Part number: SL010489 APRILIA/SAGEM Slave Cable Applications: Aprilia Sagem system.
  • Page 21 135950HUK*B ® WIDE 5950 DESCRIPTION and PART N°. PICTURE KAWASAKI 4 Pin/2007 Slave Cable Part number: SL010500 BRP Slave Cable Part number: SL010501 KAWASAKI REG. INJ. Slave Cable Part number: SL010502 BENELLI 6 Pin SLAVE CABLE Part number: SL010505...
  • Page 22 135950HUK*B ® WIDE 5950 DESCRIPTION and PART N°. PICTURE DUCATI CAN 4 Pin SLAVE CABLE Part number: SL010508 KAWASAKI 6 Pin SLAVE CABLE Part number: SL010509 KAWASAKI MY 2010 6 Pin SLAVE CABLE Part number: SL010510 SYM 3 Pin SLAVE CABLE...

  • Page 23: Connecting

    135950HUK*B ® WIDE 5950 CONNECTING WARNING! NEVER CONNECT THE THREE CLIPS (BLACK, RED AND YELLOW) ON THE SL010342 CABLE TO THE BATTERY. WHEN STARTING A DIAGNOSTIC PROCEDURE ON A MOTORCYCLE, THE VCC CLAMPS ON THE SL010051 CABLE MUST BE CONNECTED ONLY TO THE BATTERY ON THE MOTORCYCLE BEING TESTED.

  • Page 24: Powering The Tool

    135950HUK*B ® WIDE 5950 2.1 POWERING THE TOOL To turn the tool on, power it through the power supply, which comes with the tool, or through the battery cable SL010051 (red clamp on the positive terminal and black clamp on the negative terminal.) Plug the female jack into the “12VDC”...
  • Page 25 135950HUK*B ® WIDE 5950 Follow the connection procedures below: VEHICLE LIST SECTION CABLES PART NUMBER CODE Connecting to the motorcycle using “UNIVERSAL” SL010342 cable (section 2.4). 478 + M SL010478 + SL010474 Connecting to the motorcycle using BMW SLAVE cable (section 2.5).

  • Page 26: Connecting To The Motorcycle Using A Master/Slave Cable

    135950HUK*B ® WIDE 5950 2.3 CONNECTING TO THE MOTORCYCLE USING A MASTER/SLAVE CABLE 1) Connect the MASTER SL010474 cable to the tool. 2) Connect the 14 pin connector on the MASTER cable to the SLAVE cable indicated in the vehicles list.

  • Page 27: Connecting To The Motorcycle Using "Universal" Cable

    135950HUK*B ® WIDE 5950 2.4 CONNECTING TO THE MOTORCYCLE USING THE “UNIVERSAL” CABLE If the correct cable is missing, or when it is explicitly indicated in the “VEHICLE LIST”, use the universal cable: Connect the SL010342 cable to the tool.

  • Page 28: Connecting To The Motorcycle Using Bmw Slave Cable

    135950HUK*B ® WIDE 5950 2.5 CONNECTING TO THE MOTORCYCLE USING BMW SLAVE CABLE 1) Connect the MASTER SL010474 cable to the tool. 2) Connect the 14 pins connector on the MASTER cable to the SLAVE cable SL010478. If the SL010051 cable is indicated in the vehicle list, connect it to the jack on the SLAVE cable and to the battery terminals on the vehicle being tested (red clamp on the positive terminal and black clamp on the negative terminal).

  • Page 29: Operation

    135950HUK*B ® WIDE 5950 OPERATION After connecting the tool to the diagnostic socket or to the power supply the following screen is displayed: dd/mm/yyyy hh/mm/ss The menu shown below appears after pressing any key on the scan tool. - MAIN MENU -...

  • Page 30: Setup Menu

    135950HUK*B ® WIDE 5950 3.1 SETUP MENU Select the SETUP function to bring up the following menu. - SETUP MENU - Language selection Screenshot management Videosoftware System of units Display SW release Update ME0149 Set time & date Display Barcode...

  • Page 31: Help Function

    135950HUK*B ® WIDE 5950 3.2 HELP FUNCTION Help screens (similar to those below) can be accessed by pushing the F1 key at any point in the software with the following exceptions: Image display. Graphic animation display. - HELP -...

  • Page 32: Diagnostic Functions

    135950HUK*B ® WIDE 5950 3.3 DIAGNOSTIC FUNCTIONS After selecting the make of the motorcycle to be tested, the diagnostic function selection menu appears. - KAWASAKI - Inj. blinking codes Injection ...... EXIT ---------------------------------------- KAWASAKI The menu being displayed is not always the same. It varies by the manufacturer selected in the "MAIN MENU".

  • Page 33: Selecting The Search Mode For Systems Installed

    135950HUK*B ® WIDE 5950 3.4 SELECTING THE SEARCH MODE FOR SYSTEMS INSTALLED After selecting the diagnostic module, select the mode for searching for systems installed on the motorcycle and for connecting to the motorcycle: - INJECTION - Manual search...

  • Page 34: Manual Search By Vehicle Selection

    135950HUK*B ® WIDE 5950 3.4.1.1 MANUAL SEARCH BY VEHICLE SELECTION This function lists the models covered for the manufacturer selected, and supported by the current software version. - VEHICLE SELECTION - ………… ………… KX 450F (KX450E9F) ………… ………… …………...
  • Page 35 135950HUK*B ® WIDE 5950 MODEL: Name of the selected motorcycle TYPE OF DIAGNOSTICS: Type of diagnostics supported by the system on the model selected. The types of diagnostics supported by the tool are the following: Serial communication; Blinking codes;...
  • Page 36 135950HUK*B ® WIDE 5950 If the ECU is equipped with serial communication, a connection is attempted. Connecting If the ECU search is successfully, a screen appears similar to the one below. - INJECTION - Connected ID received ECU recognised:...

  • Page 37: Manual Search By Ecu Selection

    135950HUK*B ® WIDE 5950 3.4.1.2 MANUAL SEARCH BY ECU SELECTION This function lists the ECUs for the manufacturer selected and supported by the current software version installed on the scanner. - ECU SELECTION - Kawasaki DFI (4P/6P) Kawasaki DFI (8P)
  • Page 38 135950HUK*B ® WIDE 5950 WARNING! WRONG CONNECTIONS CAN IRREPARABLY DAMAGE THE TOOL. If the ECU is equipped with serial communication, a connection is attempted. Connecting If the ECU search is successful, a screen appears similar to the one below.

  • Page 39: Automatic Search Connection

    135950HUK*B ® WIDE 5950 3.4.2 AUTOMATIC SEARCH CONNECTION Use this function to connect automatically to the selected manufacturer if that manufacturer supports automatic connection. The user should be familiar with the position, type of diagnostic socket and connection instructions beforehand.
  • Page 40 135950HUK*B ® WIDE 5950 If the automatic search is successful, a screen appears similar to the one: - SEARCHING ECU - Connected ID received ECU recognised: Kawasaki DFI (4P/6P) --------------------------------------------------------------- KAWASAKI Injection If the automatic search fails, error messages are displayed.

  • Page 41: Ecu Menu

    135950HUK*B ® WIDE 5950 3.5 ECU MENU If the system search is successful, a menu appears similar to the one below. - KAWASAKI DFI (4P/6P) - ECU data Parameters Reading stored faults Erasing stored faults Diagnostic procedure EXIT ---------------------------------------------------...

  • Page 42: Ecu Data

    135950HUK*B ® WIDE 5950 3.5.1 ECU DATA By selecting "ECU data" from the "ECU MENU", a screen appears similar to the one below. - ECU DATA - - ECU DATA - ECU part #: Model year: xxxxxxxxxxxxx 2) 'xx...

  • Page 43: Reading Stored Faults

    135950HUK*B ® WIDE 5950 After confirming the selection, a table (see below) displays the data in real time. - PARAMETERS - Ignition switch Throttle angle x,xxU Use the arrows ( ) to move the cursor to scroll long texts.
  • Page 44 135950HUK*B ® WIDE 5950 If faults are present in the ECU, a screen appears similar to the one below, indicating the number of saved DTCs. - STORED FAULTS - Stored Diagnostic Fault Codes --------------------------------------------------------------- KAWASAKI Injection KX 450F (KX450E9F)

  • Page 45: Erasing Stored Faults

    135950HUK*B ® WIDE 5950 3.5.4 ERASING STORED FAULTS Selecting "Erasing stored faults" in the "ECU MENU" deletes faults stored in the ECU. Before deleting fault codes, confirm by pressing PROCEED. - DELETING FAULTS - This deletes faults from ECU memory...

  • Page 46: Diagnostic Procedures

    135950HUK*B ® WIDE 5950 3.5.5 DIAGNOSTIC PROCEDURES Select "Diagnostic procedures" in the "ECU MENU", to display the list of tests of components controlled by the ECU and supported by the scan tool. - DIAGNOSTIC PROCEDURES - Fuel pump Ignition coil 1...

  • Page 47: Configurations

    135950HUK*B ® WIDE 5950 3.3.6 CONFIGURATIONS Select "Configurations" in the "ECU MENU" to display the list of setup and adjustment operations controlled by the ECU and supported by the scan tool. - CONFIGURATIONS - TPS zero setting CO calibration...
  • Page 48 135950HUK*B ® WIDE 5950 Blank Page ENGLISH OPERATION...

  • Page 49: Harley-Davidson ® Quick Start Procedure

    135950HUK*B ® WIDE 5950 ® HARLEY-DAVIDSON QUICK START PROC. Follow these instructions to use the scan tool on a Harley-Davidson motorcycle. 4.1 STEP 1: USING OF THE VEHICLES LIST 1) In the Harley Davidson section, search for the motorcycle in the MODEL column.

  • Page 50: Step 3: Locating The Motorcycle Diagnostic Port

    135950HUK*B ® WIDE 5950 4.3 STEP 3: LOCATING THE MOTORCYCLE DIAGNOSTIC PORT 1) Identify the Harley-Davidson motorcycle series: Sportster, Dyna, Softail, VRSC or Touring. 2) With the Sportster series, remove the seat and the left side panel, use the pictures below to identify the 4 pin diagnostic connector, remove the cap and go to STEP 4.
  • Page 51 135950HUK*B ® WIDE 5950 3) With the Dyna series, remove the left side panel and, use the pictures below to identify the 4 pin diagnostic connector. Remove the cap and go to STEP 4. HARLEY-DAVIDSON® QUICK START PROC. 47...
  • Page 52 135950HUK*B ® WIDE 5950 4) With the Softail series, remove the seat, using the pictures below to identify the 4 pin diagnostic connector. Remove the cap and go to STEP 4. ENGLISH 48 HARLEY-DAVIDSON® QUICK START PROC.
  • Page 53 135950HUK*B ® WIDE 5950 HARLEY-DAVIDSON® QUICK START PROC. 49 ENGLISH...
  • Page 54 135950HUK*B ® WIDE 5950 5) For VRSC series motorcycles, remove the left side panel on the steering column. Use the pictures below to, identify the 4 pin diagnostic connector, remove the cap and jump to STEP 4. ENGLISH 50 HARLEY-DAVIDSON® QUICK START PROC.
  • Page 55 135950HUK*B ® WIDE 5950 6) With the Touring series, remove the right hand case and the right hand panel. Use the diagrams below to identify the 4 pin diagnostic connector, and remove the cap. HARLEY-DAVIDSON® QUICK START PROC. 51...
  • Page 56 135950HUK*B ® WIDE 5950 ENGLISH 52 HARLEY-DAVIDSON® QUICK START PROC.

  • Page 57: Step 4: Connecting The Scanner To The Motorcycle

    135950HUK*B ® WIDE 5950 4.4 STEP 4: CONNECTING THE SCANNER TO THE MOTORCYCLE 1) Connect the SL010480 Harley-Davidson cable to the motorcycle diagnostic socket. 2) If the motorcycle has an immobilizer security system, turn it off. 3) If the lock-set is not installed, turn the key into "IGN" (or IGNITION) position and go to step 5.

  • Page 58: Step 5: Starting Diagnostic Work On The Motorcycle

    135950HUK*B ® WIDE 5950 4.5 STEP 5: STARTING DIAGNOSTIC WORK ON THE MOTORCYCLE 1) Check that the scan tool is turned on. 2) Press any key and select "Harley-Davidson" in the MAIN MENU. 3) Select the applicable system for the motorcycle, as defined in the SYSTEM column in the VEHICLES LIST (STEP 1).

  • Page 59: Suzuki/Cagiva Injection Adjustment

    135950HUK*B ® WIDE 5950 SUZUKI/CAGIVA INJECTION ADJUSTMENT Follow these instructions to use the optional cable SL010477 to adjust the injection system on SUZUKI and CAGIVA motorcycles, where the ECU has this capability. WARNING ! PLEASE READ THE NEXT SET OF INSTRUCTIONS IN DETAIL. THESE DESCRIBE HOW TO USE THE SUZUKI/CAGIVA CABLE PROPERLY.
  • Page 60 135950HUK*B ® WIDE 5950 - MANUAL SEARCH- - VEHICLE SELECTION - Vehicle selection ………… ECU selection GSX-R1000 . . . EXIT GSX-R1000 Black L.E..GSX-R1000 Limited Edition ………… --------------------------------------------------- ------------------------------------------ SUZUKI SUZUKI Injection adjustment Injection adjustment...

  • Page 61: Adjusting The Injection System Using The Suzuki / Cagiva Cable

    135950HUK*B ® WIDE 5950 5.2 ADJUSTING THE INJECTION SYSTEM USING THE SUZUKI / CAGIVA CABLE The operations described in this section must be carried out only by a qualified technician. This function adjusts the motorcycle injection timing. The smaller openings of the throttle valve should be adjusted first, as the idling and 10% affect the bigger openings (50%, 75%, 100%).

  • Page 62: Original Values Reset

    135950HUK*B ® WIDE 5950 5.2.1 ORIGINAL VALUES RESET This function resets the ECU to its original factory settings. This is necessary when working on a particular motorcycle for the first time. After selecting “Original values reset” the following screens appear in sequence.

  • Page 63: Idling Adjustment

    135950HUK*B ® WIDE 5950 5.2.2 IDLING ADJUSTMENT This function adjusts the idling injection. It is possible to adjust the idling on each cylinder, and on all cylinders at the same time. Setting a value between +10% - +40% is preferable.

  • Page 64: Regulation At 10

    135950HUK*B ® WIDE 5950 5.2.3 REGULATION AT 10% This function adjusts the injection opening to 10% of the throttle valve. This function requires the engine to be warmed up. Make sure 93° C (200 °F) is not reached, as this will cause the ECU will try to compensate the overheating and the set adjustments will be incorrect.

  • Page 65: Regulation At 25% - 50% - 75

    135950HUK*B ® WIDE 5950 5.2.4 REGULATION AT 25% - 50% - 75% These functions adjust the injection opening to 25%, 50%, or 75% of the throttle valve. Warm up the engine. Make sure 93° C (200 °F) is not reached, as this will cause the ECU will try to compensate the overheating and whatever adjustments made will not be saved.
  • Page 66 135950HUK*B ® WIDE 5950 - CONFIGURATIONS - - CONFIGURATIONS - Adjustment value to increase to reduce Data storage in process … to confirm. to cancel. --------------------------------------------------- --------------------------------------------------------------- SUZUKI SUZUKI Injection adjustment Injection adjustment GSX-R1000 Black L.E..

  • Page 67: Regulation At 100

    135950HUK*B ® WIDE 5950 5.2.5 REGULATION AT 100% This function adjusts the injection opening at 100% of the throttle valve. To find the optimal value it is advisable make adjustments of +/- 20% of the desired value. Road tests with a complete opening of the throttle valve are required.
  • Page 68 135950HUK*B ® WIDE 5950 Blank Page ENGLISH SUZUKI/CAGIVA INJECTION ADJUSTMENT...

  • Page 69: Appendix

    135950HUK*B ® WIDE 5950 APPENDIX 6.1 SCREEN T This section describes the main types of screens displayed when using the diagnostic software. The screens shown in the following sections are examples and may be subject to modification. 6.1.1 “MENU” SCREEN...

  • Page 70: Proceed - Exit" Screen

    135950HUK*B ® WIDE 5950 6.1.2 “PROCEED – EXIT” SCREEN - CONFIGURATION - This function regulate the idling Highlighted item injection PROCEED EXIT SUZUKI Injection adjustment GSX-R1000 Black L.E..SUZUKI (REG) Use the “PROCEED – EXIT” command to continue by selecting PROCEED or to stop by selecting EXIT.

  • Page 71: Message" Screen

    135950HUK*B ® WIDE 5950 6.1.4 “MESSAGE” SCREEN - CONFIGURATION - Indicates the presence of additional invisible text Refer to the next picture. Read on the lines Motorcycle display the position of the Dash located to the left of the “c00”...

  • Page 72: Multiple Selection" Screen

    135950HUK*B ® WIDE 5950 6.1.5 “MULTIPLE SELECTION” SCREEN Selection arrow - PARAMETER - Ignition switch Throttle angle Intake pressure Intake air temperature Atmospheric pressure ........ -------------------------------------------- XXXXXXXX Xxxxxxxxxxxx Xxxxxxxxxxxxxxxx Selection arrow direction The “MULTIPLE SELECTION” screen allows one or more options to be selected from a list.

  • Page 73: Help" Screen

    135950HUK*B ® WIDE 5950 6.1.6 “HELP” SCREEN - HELP - Confirms item indicated Exits the list Moves item indicator up 1 line Moves item indicator down 1 line Moves item indicator up 6 lines Moves item indicator down 6 lines Press any key .

  • Page 74: Parameters Table" Screen

    135950HUK*B ® WIDE 5950 6.1.7 “PARAMETERS TABLE” SCREEN - PARAMETERS - Ignition switch Throttle angle X,XXU Water temperature. XX.X°C Intake air temperature XX.X°C Engine rpm XRPM Battery voltage XX.XV The "PARAMETERS TABLE" screen displays live data from the ECU.

  • Page 75: Types Of Diagnostics

    135950HUK*B ® WIDE 5950 6.2 TYPES OF DIAGNOSTICS 6.2.1 SERIAL COMMUNICATION Serial communication is the most advanced diagnostics mode. A communication handshake is established automatically between the scan tool and the ECU. This type of diagnostic capability also allows the display of live data from the ECU and may support the adjustment of certain functions.

  • Page 76: Display Codes

    135950HUK*B ® WIDE 5950 6.2.3 DISPLAY CODES Display codes identify fault codes stored in the ECU. Fault codes are indicated by a number or by an alphanumeric code shown on the display of the motorcycle dashboard. If more than one fault is present, the ECU stores all fault codes, which are then displayed in sequence. Codes are repeated in sequence until the autodiagnostics mode is activated.
  • Page 77 www.obd2express.co.uk...
  • Page 78 www.obd2express.co.uk...
