Thermocover of transport trolley Combi-Duo
Units
SelfCooking Center®/Combi Master 61 – 102
concerned:
Required tools: Spanner 10 mm, scissor
Labour time approx. 60 minutes
1
2
3
Retrofi t instructions
SCC Line
1. Adjust the transport trolley to the
2. Remove upper transport frame:
3. Put thermocover over the transport trolley
- 1 -
Number: 16/2005
Date: 21.09.2005
required height of the corresponding type
of the Combi-Duo.
- First set the lower transport frame to the
necessary position (Combi-Duo on rolls,
on wheels, on legs or 61/61 on stand.
- Second set the height of the upper trans-
port frame to the corresponding height of
the upper unit if the Combi Duo.
- Hang out spring of lever mechanism
- Loosen combi-nuts
- Remove upper transport frame

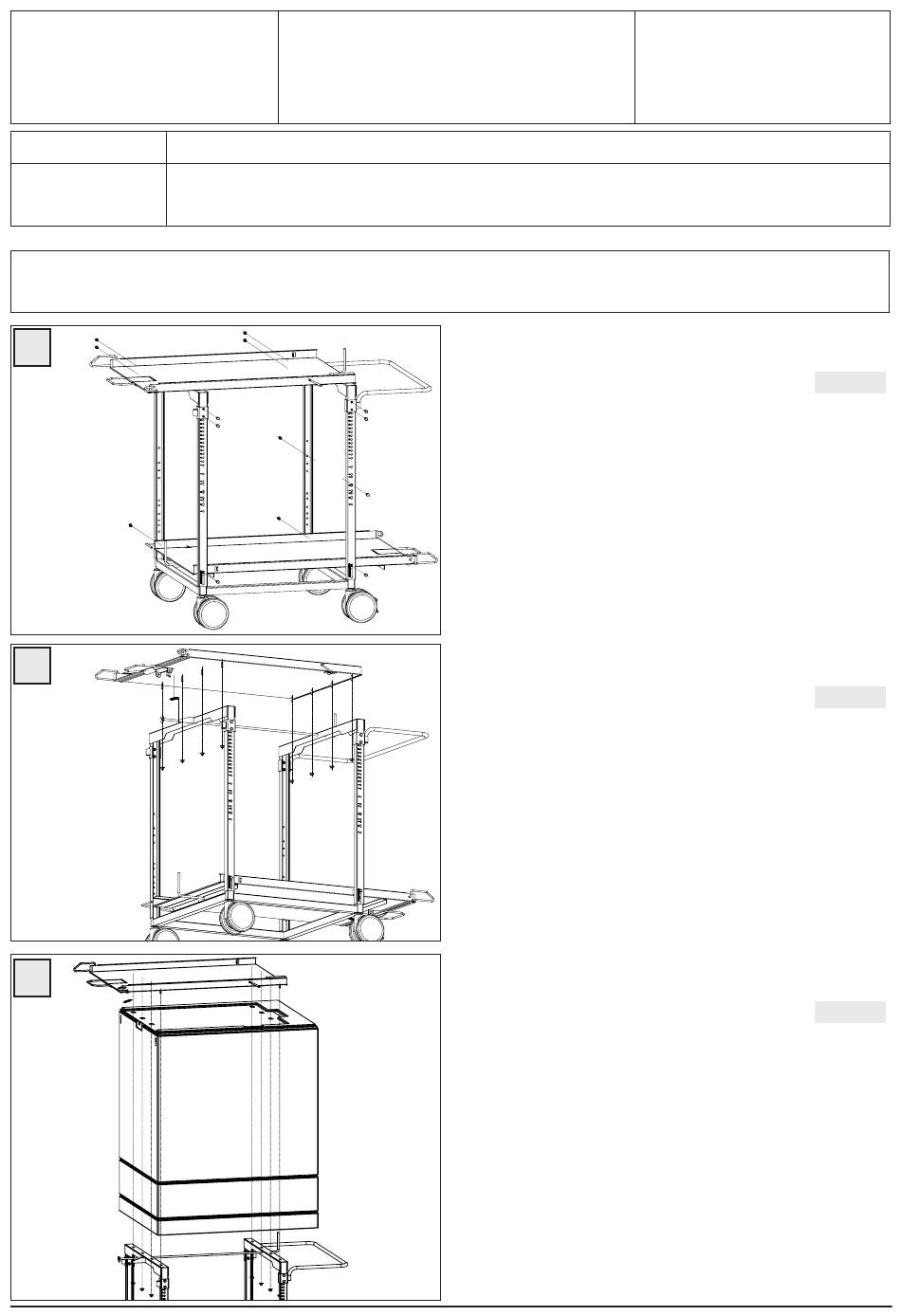

pic. 1
pic. 2
pic. 3
