ULP-DB1955 Product weight:3kg; TV size support: 32"-65"; Distance to the
wall: 100-340mm; Maximum load: 30kg; For VESA standard: 400x400mm
of or have any questions regarding the proper installation of this wall mount, contact a
ULP-DB1955
4
H
I
IMPORTANT SAFETY INSTRUCTIONS
Check your TV user manual instructions to see if there are any special requirements for mounting your TV. If you
do not understand these instructions or have doubts about the safety of the installation, assembly or use of this
product, contact:
INTERFOTO CC
Website: www.ultralink.co.za
Email: service@interfoto.co.za
Address: 362 Roan Crescent,
Corporate Park North, Midrand
Tel: +2786 006 1046

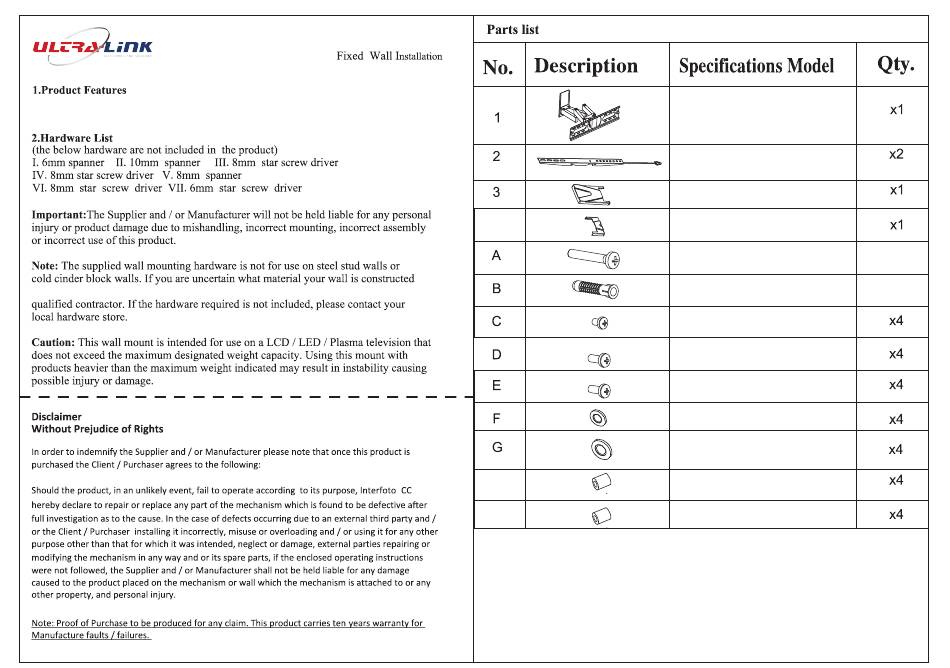

Aluminum siding agencies
Arm
Dust cover1
Dust cover2
M6x55mm Wallboard screw
M10 Plastic screw
M8x16mm Cross round screw
M6x20mm Cross round screw
M8x50mm Cross round screw
Ф6x16 washer
Ф8 washer
Ф6 plastic spacer
Ф8 plastic spacer
x3
x3
Advertisement
Related Manuals for ULTRA-LINK ULP-DB1955
Summary of Contents for ULTRA-LINK ULP-DB1955
- Page 1 ULP-DB1955 ULP-DB1955 Product weight:3kg; TV size support: 32”-65”; Distance to the wall: 100-340mm; Maximum load: 30kg; For VESA standard: 400x400mm Aluminum siding agencies Dust cover1 Dust cover2 M6x55mm Wallboard screw of or have any questions regarding the proper installation of this wall mount, contact a...
- Page 2 Using the bubble level to ensure the wall plate is level, pre-drill 3 holes with a 10mm bit to 50mm deep. Insert wall anchors into the holes, then use long bolts to mount the wall to studs. Under the direction of the arrow, Fix the dust cover on the wall plate.
