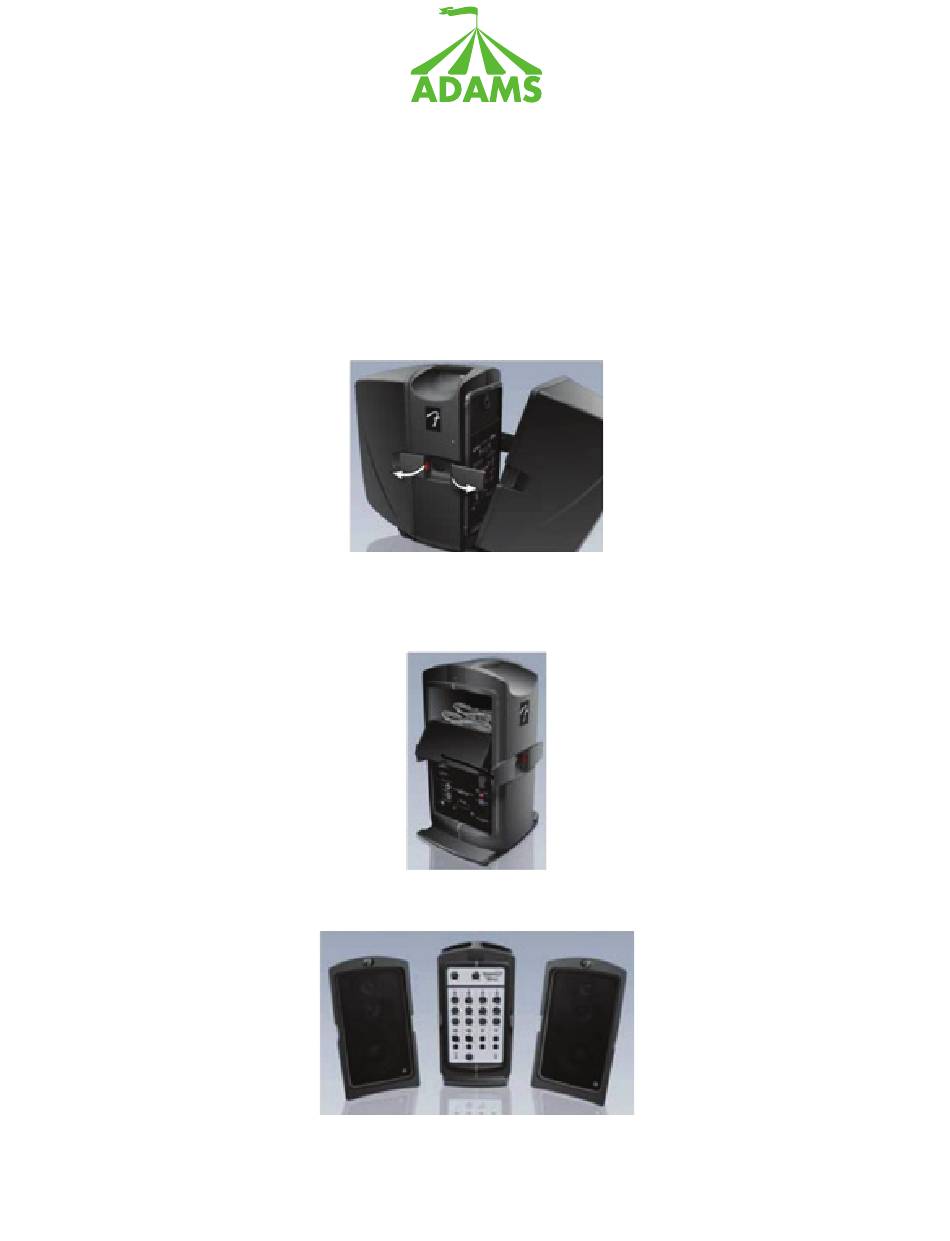

PASSPORT 150 PRO SOUND SYSTEM
The Passport 150 Pro is a self-contained, portable audio system that includes everything you need for great
sound. Carry this sound system as you would a suitcase.

SYSTEM SET-UP

1.
Flip open the cabinet latches on the sides of the Passport and detach the speaker cabinets from the powered
mixer section.
2. For optimal results, elevate the speaker cabinets on sturdy tables and place the speakers far apart to
maximize stereo separation. Position the mixer close to where you will be performing so you will have easy
access to the control panel.
3. Open the storage compartment on the rear of the mixer and remove the power cord and speaker cables.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PASSPORT 150 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Adams PASSPORT 150 PRO

  • Page 1 PASSPORT 150 PRO SOUND SYSTEM The Passport 150 Pro is a self-contained, portable audio system that includes everything you need for great sound. Carry this sound system as you would a suitcase. SYSTEM SET-UP Flip open the cabinet latches on the sides of the Passport and detach the speaker cabinets from the powered mixer section.
  • Page 2 PASSPORT 150 PRO SOUND SYSTEM 4. Plug the speaker cables into the left and right speaker jacks on the back of the mixer, then connect the corresponding left and right speakers. Make sure the power switch is off, then plug the supplied power cord into the power socket on the back of the mixer and the other end into a grounded AC power outlet.
  • Page 3 PASSPORT 150 PRO SOUND SYSTEM 8. Turn the master Volume knob up to volume. 9. Pick up a microphone (or other source) and use it at the intended level while slowly turning up the corresponding channel Level knob. Watch the signal LED above the Level knob occasionally. It illuminates green with an input signal level present, yellow when the input signal gets closer to clipping, and red during clipping (distorting).
  • Page 4 PASSPORT 150 PRO SOUND SYSTEM MASTER CONTROLS A. VOLUME - Use to adjust the overall loudness of your Passport Pro. When this knob is rotated fully counter- clockwise, there will be no sound coming out of the Passport speakers. B. TONE - Use to adjust the overall tone character of your Passport Pro. Select the center position for no equalization.
