Summary of Contents for AGT AGT-SSRC72

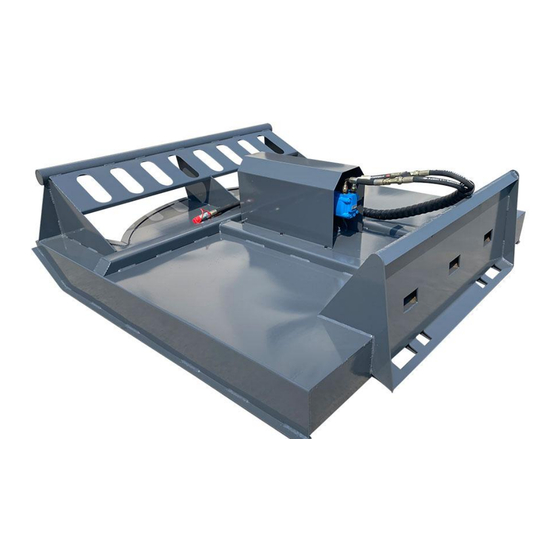

- Page 1 AGT Industrial Product manuals Skid Steer Brush Cutter Model:AGT-SSRC72 Ver.1.1.4 https://www.agrotkindustrial.com/...
-
Page 2: Product Manual
PRODUCT MANUAL Skid Steer Brush Cutter Model:AGT-SSRC72 Please read the product manual completely before assembly Check against the parts list to make sure all parts are received Wear proper safety goggles or other protective gears while in assembly ... - Page 3 https://www.agrotkindustrial.com/ Directory Product introduction 1/16 Operator 2/16 Safety precautions 3/16 Technical parameters 4/16 Installation 7/16 Handing safety 9/16 Limited Warranty 16/16...
-
Page 4: Product Introduction
https://www.agrotkindustrial.com/ Product introduction 1. RC72 Brush cutter has a direct drive one-way check valve hydraulic motor 2. Skid rails run along the entire mower deck sides 3. Hydraulic hoses and 1/2" flat-faced couplers included 4. Front-opening mowing, alloy steel blades. It is easier to cut shrubs We provide blade replacement, you don't need to worry. - Page 5 https://www.agrotkindustrial.com/ Operator Congratulations on owning this Skid Steer Brush Cutter! Your Skid Steer Brush Cutter are carefully designed and manufactured to provide you with years of reliable service. Your Skid Steer Brush Cutter will need some minor maintenance to keep it in excellent working condition.
-
Page 6: Safety Precautions
https://www.agrotkindustrial.com/ Safety precautions BEFORE OPERATION 1. The operator must read the operation manual carefully before installation, operation or maintenance. Improper operation will cause the machine damaged or the operator dead. 2. Read all the safe signs and safe declarations. Obey all the professional safe terms, local laws or the professional directions. -
Page 7: Technical Parameters
https://www.agrotkindustrial.com/ Technical parameters Model: SSRC72 Working Width 67.91″ Cutting Height 1.57″ Blade：（PCS） Total Length: 77.95″ Total Height: 74.8″ Total Length： 18.5″ Working Pressure：（MPA） 17 Flow（L/min）（GPM） 45-60（12-16） Weight： 780.43Ibs Work environment： Temperature: - 20 ~ 50 ℃ Height: 100 meters or less Relative humidity :≤85% sales@agrotkindustrial.com... - Page 8 https://www.agrotkindustrial.com/ Technical parameters sales@agrotkindustrial.com...
- Page 9 https://www.agrotkindustrial.com/ PART DESCRIPTION QTYS NOTE Frame Gear Box Sprocket Chain Locking Nut （M12） Motor fixing seat weldment Bolt （M12*45） Bolt （M16*60） Rotor Pin（φ4*35） slotted nut （M16） Shim Blade Opening bolt Locking Nut （M16） Complete Gear Box Motor Sprocket Gear Box Housings weldment Inner hexagon head bolt（M8*12）...
-
Page 10: Installation
https://www.agrotkindustrial.com/ Installation Unpack and check Check for missing or damaged components according to the packing list. If you have any questions, please contact the supplier. List of details As the table above: Machine installation Equipment must be installed on a solid concrete floor or similar. If the ground is not firm, it will not be able to connect to the loader. - Page 11 https://www.agrotkindustrial.com/ Installation Note: this drawing does not represent the appearance of the equipment For actual purchase, this figure is only for installation location reference. Oil pipe connection: Skid Steer Brush Cutter is equipped with 2 oil pipes, which inlet oil pipe and outlet oil pipe. Connect the tubing to the loader tubing connection.
-
Page 12: Handling Safety
NOTICE Improper maintenance or modifications to the design or performance of this machine will void the warranty. ONLY use genuine AGT equipment manufacturing replacement parts on this machine. Safety Instructions Obey the following safety instructions when servicing or repairing this machine. - Page 13 https://www.agrotkindustrial.com/ Handling safety Maintenance Schedule This brush cutter attachment will provide years of dependable service if routine maintenance procedures are performed. The maintenance tasks listed below are based on normal operating conditions. More frequent maintenance may be necessary with intense use or when operating in adverse environmental conditions. BEFORE EACH MAINTENANCE TASK WEEKLY...
-
Page 14: Storage Tips
https://www.agrotkindustrial.com/ Handling safety Storage Tips To get years of quality use out of your brush cutter, follow these storage tips: Ensure brush cutter is free of debris, dirt, grime and grease. Store your brush cutter in a dry shed or garage. When storing your brush cutter for the season, cover with a weather proof tarp to protect it from the elements. - Page 15 https://www.agrotkindustrial.com/ Handling safety First Time Use Procedure Before operating the brush cutter, check the skid steer’s hydraulic oil level and add oil if necessary. If you are operating the brush cutter ensure the case drain hose is properly attached to the prime mover’s case drain connection. DO NOT operate this attachment WITHOUT the case drain hose attached.
- Page 16 The first-aid kit information below was directly obtained from OSHA regulations. Having a kit available at the job site is required by OSHA for logging operations and is highly recommended by AGT Manufacturing. The following list sets forth the minimally acceptable number and type of first-aid supplies for first-aid kits required under paragraph (d)(2) of the logging standard.
-
Page 17: Inspection Checklist
https://www.agrotkindustrial.com/ Handling safety Inspection Checklist This checklist is to be completed prior to every use of the tree shear. DO NOT use a tree shear that fails inspection until it has been repaired. Check for damaged hoses or hydraulic leaks. See hydraulic safety precautions in this manual. Grease all Imbrication points. - Page 18 https://www.agrotkindustrial.com/ Handling safety Safely Checking for Hydraulic Leaks WARNING: There is significant risk of injection from the high pressure spray at hydraulic leaks The tremendous energy used to operate the machine and attachments can be stored in the hydraulic system even when the machine engine is off. Very serious injuries from hydraulic fluid injection can seem insignificant at first.
-
Page 19: Limited Warranty
AGT Auger attachments extensions and adaptors.The use of attachments other than AGT Auger Teeth, Pilots, attachments, extensions and/or adaptors, will void all warranty on Auger Drive and Bits.The use of AGT adaptors on unapproved attachments is not sanctioned.A “home-made” or non-standard attachment outside the specifications for the machine will void the warranty. - Page 20 https://www.agrotkindustrial.com/ sales@agrotkindustrial.com...
