OMT724 UHF Reader/writer RS232

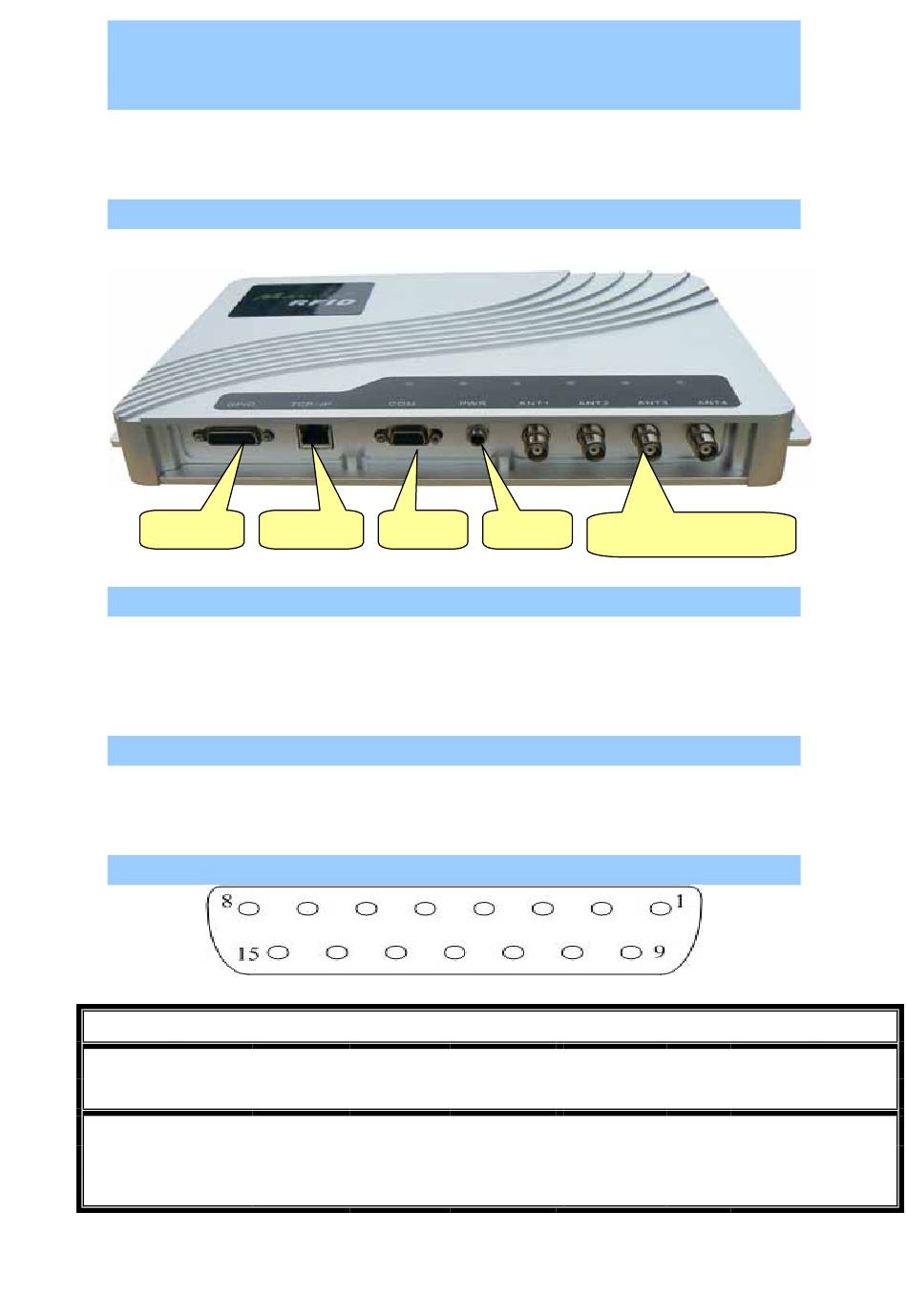

Connection diagram
GPIO
RS232
The reader provides RS232 communication interface to communicate with PC
The data format of RS232 is 8 data bits, one start bit , one stop bit and no parity bit;
Data rate can be 9600,19200,57600 and 115200.
TCP-IP
This reader supports RJ45 (Ethernet) interface.
DB15 definition :
Pin
1
function Output 2 Output 1
Pin
9
function
GND
A+(RS485) B-(RS485)
4 port UHF RFID reader/writer
User manual
TCP/IP
RS232
DB15 pin assignment
2
3
GND
10
11
power
4 antenna port
4
5
Output 4
Output 3
12
13
GND
spare
6
7
GND
Input 1
Input 2
14
15
spare spare
8
Advertisement
Related Manuals for Omnitech OMT724
Summary of Contents for Omnitech OMT724
- Page 1 OMT724 UHF Reader/writer RS232 4 port UHF RFID reader/writer User manual Connection diagram GPIO TCP/IP RS232 power 4 antenna port RS232 The reader provides RS232 communication interface to communicate with PC The data format of RS232 is 8 data bits, one start bit , one stop bit and no parity bit;...
- Page 2 RS485 : RS485 can be connected with PC interface using the RS232-RS485 converter. With this mode, RS485 interface supports all the functions as RS232 . GPIO Port : This reader support 4 output port （0-3）, user can set it to high or low level : (when power up default is high level output）...
- Page 3 Tag operate ISO18000-6B Tag : Multi-tag identification: search all the tags in the detection range and read the UID of 8 bytes. Multi-tag reading: search all the tags in the detection range and read the 8 bytes data of the appointed address Single tag writing: write one byte data in the appointed tag address.
- Page 4 Demo Program Guide [1] connected the reader with PC via RS232 or RJ45 [2] Run demo program from path:\\CONFIG\UHF reader demo.exe Close DEMO software Click on “EXIT “ to close the program DEMO reader operation Connect Reader with PC through RS232 cable a) Serial Port connection : select the correct Com Port and Baud rate（9600～...
- Page 5 b) TCP/IP – Setting Before run with TCP/IP connection, pls make sure the IP address can match with your network. The IP address can be set through RS232 by following steps : [1] Connect the reader with PC through RS232 . [2] click on “connect”...
- Page 6 Setting（query）reader power and frequency Query reader’s power and frequency : click“Query＂button, it will show the reader current power and frequency as chart A : Set reader’s power and frequency : first select power parameter and frequency （China:902-928MHz, AMERICA:ISM902-928MHz, EUROPEAN:ISM865-868MHz）, then click“Set＂button as chart B Chart A chart B Antenna set and query...
- Page 7 Select identity tag times（default as continue）, tag identify the time（default is 10ms）then click “Start” button, reader get to tag identify status, when read the tag will show as below: 6B6B identify and details record Read the tag total numbers Tag read and write Tag read : Read ISO18000-6B tag’s data First select one tag(identify the tag first, and then select), select the tag’s content start address (Address), data length （Data Length）...
- Page 8 ISO18000-6C(EPC-G2) tag operate Click “EPCTag operate” from menu as follow : Tag Identify Select identity tag times（default as continue）, tag identify the time（default is 10ms）then click “Start” button, reader get to tag identify status, when read the tag will show as below: EPC multi tag identify success and detail record Identify tag total quantity EPC GEN2 Read and Write...
- Page 9 EPC-G2 read Select Membank（Membank）, option include“KILL PWD＂ ,“ACCESS PWD＂ , “EPC CODE” ,“TID CODE＂ “USER DATA＂, then select address“Address＂and data length“Data Length＂, click“Read Data＂button, if read success the data will show in the information bar as below : EPC read success EPC-GEN2 Write Select membank（Membank）, option include“KILL PWD＂...
- Page 10 EPC-GEN2 Initialize Put the tag in the reader reading range, then click“Initalize Tag Data＂button, See below information bar to show the result : PC-G2 tag lock Select the write bank“Bank＂, then click“Lock Tag＂button, if lock success the information bar will show below, as below : Note :once the tag locked, it can’t unlock, only can lock the bank.
