Summary of Contents for Fortinet SP-RACKTRAY-02

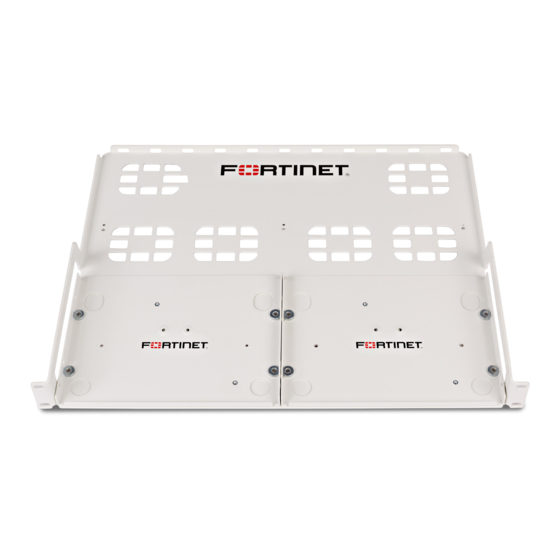

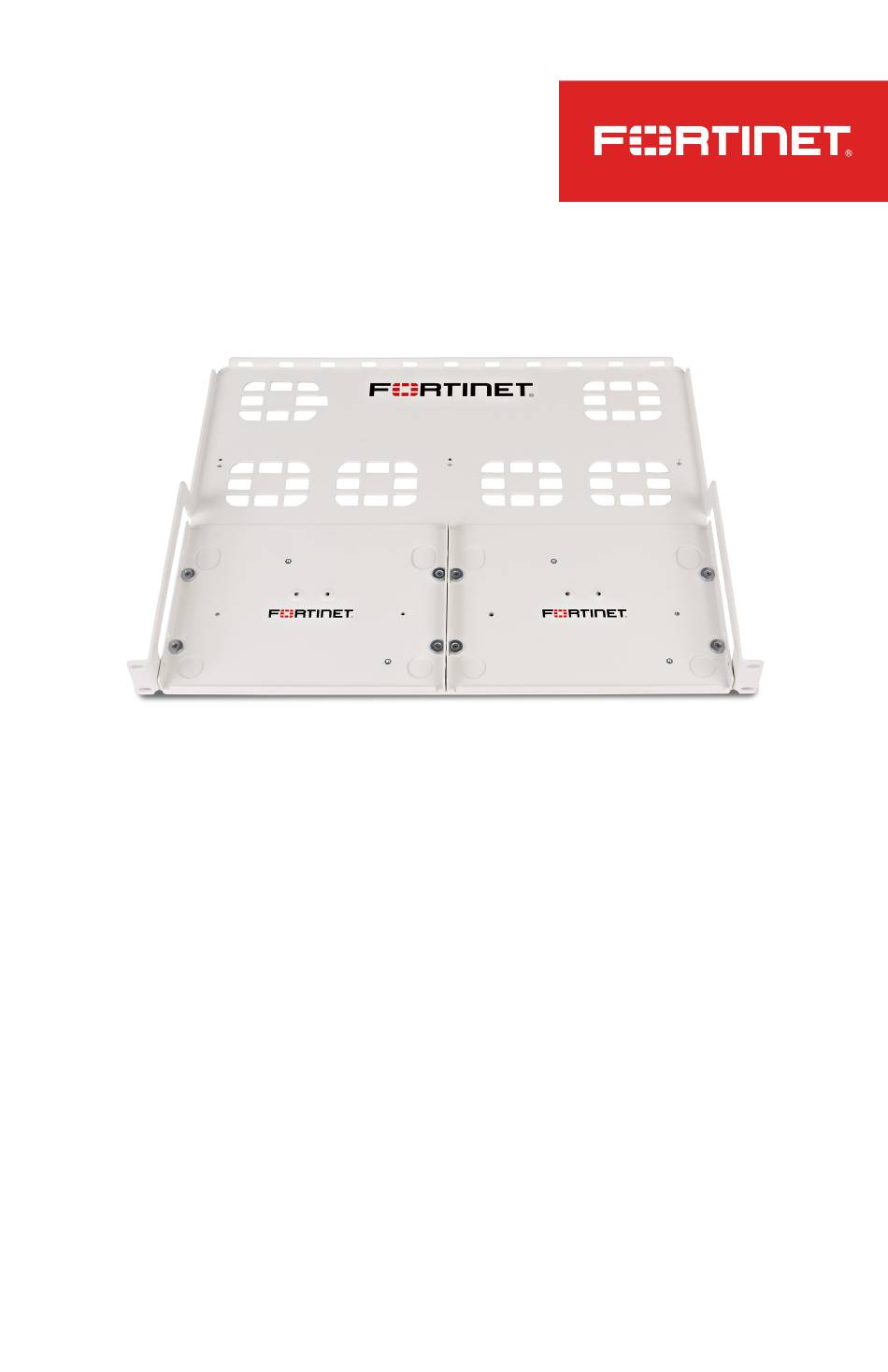

- Page 1 Fortinet Rack Mount Tray SP-RACKTRAY-02 QuickStart Guide...
-
Page 2: Device Compatibility
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
FortiCare Support at https://www.fortinet.com/support/contact Self-service Resources QuickStart Guide Access our knowledge base, forums, videos and technical experts at https://www.fortinet.com/support/support-services/forticare-support Thank you for choosing Fortinet Fortinet Rack Mount Tray 2x Adapter Brackets 8x Cable Ties 2x Grounding Wires 20x Various Philips M3/M4 Screws... -
Page 4: Installation
Installation Before you begin, power off and disconnect the device; if rubber feet are Tray Mount attached, remove them. Place device to one side of the tray above the tray magnets. Plastic Housing Devices Attach three rubber feet next to the screw holes. Attach provided grounding wire to the back of the device. - Page 5 Adapter Bracket Before you begin, power off and disconnect the device. If applicable, Place device to one side of the tray above the tray magnets. remove the four 4mm M3 screws from the sides of the device. Note, the adapter bracket will not fit devices wider than 216mm (8.5in). Insert two hex screws into the bracket (FG-60D Series).
-
Page 6: Rack Installation
Rack Installation Level and line up the rack mount tray ear holes with the rack holes. Finger tighten four rack screws from the rack tray to the rack. Verify that the device is level and there is 1.5 inches of space above and below the device for adequate air flow. - Page 7 Fortinet.com...
