Summary of Contents for TOPMAQ CLWA5500

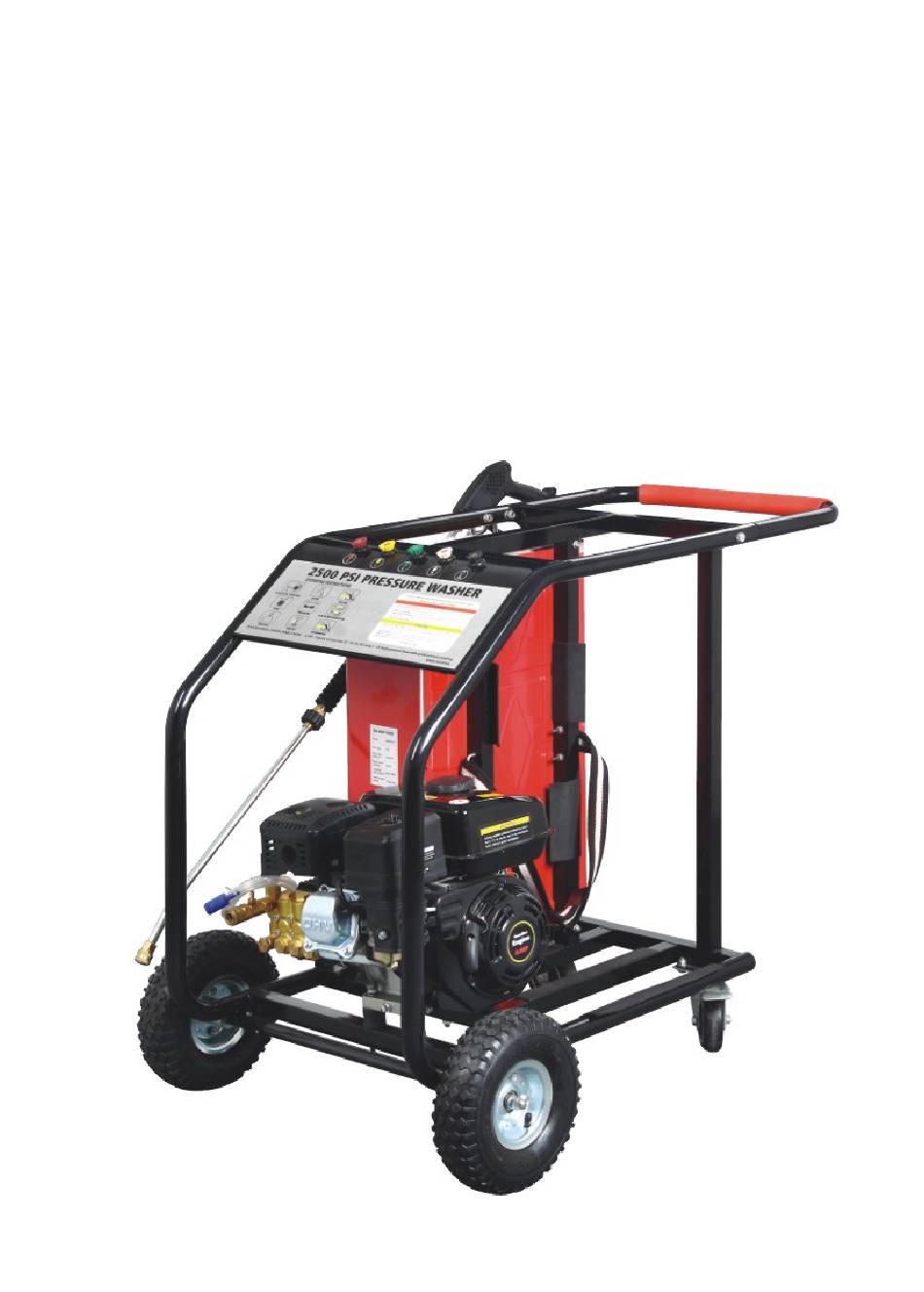

Page 1 Gasoline Engine Hot Water High pressure washer owner’s manual...
Page 2 Preface Introduction Thanks for purchasing a Multi Power Cleaner . Please strictly follow the engine/alternator instructions and recommended procedure for installation, operation and maintenance. This booklet Manual covers operation and maintenance of the hot water high pressure washer. We try our best to improve the quality and once there is any change or alteration for the content we will inform our all authorized distributors as soon as possible.
Page 3: Operation Guidance
Operation guidance Guidance Please read these symbols seriously, which concern personal security and safety operation. Danger Danger indicates an imminent risk of serious injury or death if not followed. Warning Warning indicates a potential risk of property loss if not followed. Notice Notice indicates some special actions should be taken to prevent from damage.
Page 4: Safety Rules
Safety rules Caution · Please read the instructions carefully before use. · Learn how to stop the engine and release the pressure quickly till master all crucial control methods and operations entirely. · Hold tightly the trigger gun with both hands when in use. ·...
Page 5 Safety rules Warning · Forbidden to place it on unsteady ground. · Hold the trigger gun tightly with both hands when in use. · Forbidden to incline the machine. · Open the protector when not in use in case of accident. ·...
Page 6: Technical Parameters
Technical Parameters High pressure washer parameters Model XY-H02 Rated pressure 2500 PSI Flow rate 3.0 GPM Pump XY55 Inlet water Running water （ 20-75 PSI ） Hose 10 m water heater parameters Fuel type LPG ， NG Max heat value 88500BTU/H Max temperature 75 °...
Page 7: Main Components
Main Components Replaced Quick Connecting Tips LPG Bottle LPG Water Heater Spray Lance Pump Engine...
Page 8 Function Assembly Engine : drives the pump Pump: Increases water pressure LPG Water Heater: heats inlet water Replaced Quick Connecting Tips: work together with spay lance and control the flow rate, direction and pressure. Spray lance: there is a rapid interface at the end of the spray lance for replacing different connecting tips.
Page 9: Installation
Installation Accessory Check attached accessories and install as follows: Handle, 1 pieces; Bracket, 1 Lance, 1 piece; gun, 1 piece; Water inlet pieces; Bolt M8×45 , 1 pieces; pipe, 1 piece; high pressure pipe, 1 piece; Nut M8, 3 pieces; Washer φ 8, 4 Clip, 1 piece pieces Respirator, 1 pieces...
Page 10 Installation Water source 1. Connect water inlet of pressure washer to running water outlet with water pipe, and tighten them with clamps 2. Install water strainer if necessary at the pump entrance, conical surface should be outside Notice · Use clean water ·...
Page 11 Installation High pressure hose & nozzles 1、Connect spray lance with the trigger gun. 2、Pull quick tie-in backwards on spray lance and install the spray nozzle. 3、Loosen the quick tie-in and push it forwards until hearing the sound of click. 4、Connect hose with the trigger gun. Warning ·...
Page 12 Installation High pressure hose & nozzles Green spray nozzle (25º ). With a 25 º cleaning angle to strengthen the cleaning effort in large area, only for surface that can undertake the pressure. White spray nozzle (40º ). With a 40 º cleaning angle for general purpose, low pressure and larger area.
Page 13: Pre-Operation
Pre-operation Warning Forbidden to turn the pressure washer gun towards unprotected skin, eyes, pets or animals, otherwise it might cause serious damage. High pressure water is possible to penetrate flesh of person or animal and even more severe hurt than that. Loose connection or crack might cause injection hurt.
Page 14 Pre-operation water heater check Check fuel type is same or not as on nameplate appointed. Install two 1# dry cells for the water heater. Notice Water pressure is the switch to turn on the water heater, so when it is lower than 0.02Mpa, water heater can not be started.
Page 15: How To Operate
How to operate Start up the engine Notice Before startup first please trigger the gun to release the pressure in pump, then start the engine. Cleaning 1. Trigger the gun and hot water will come out. 2. Trigger back and hot water will stop. 3.
Page 16 How to operate Detergent Notice Detergent works under low pressure and can not be injected under high pressure. 1. Install the black spray nozzle. 2. Install the injector to the pump. 3. Put injector strainer into the detergent container. Detergent: water 1:10 4.
Page 17 How to operate Shut down the pressure washer 1. Shut off the main gas valve and engine will stop. 2. Shut off the water source. 3. Trigger the gun back and release the water pressure. Notice Please assure the main gas valve is off after the engine stopped.
Page 18: Maintenance
Maintenance Warning 1. Correct and regular maintenance can extend the service life of the machine. 2. Any unauthorized adjustment to the machine or unauthorized accessories might cause damage or injury, and it will void your warranty. Safety notice Please read carefully this booklet before maintenance. Shut down the engine first till it is cool.
Page 19 Maintenance Engine maintenance schedule Total running time 50 Hrs 100 Hrs 200 Hrs 300 Hrs Item Lube Oil (Change) √ Air Filter (Clean) √ Spark Plug (Check or Change) √ Valve Clearance (Check or Adjust again) √(※) Combustion Chamber (Clean) √(※) Notice More frequent maintenance is necessary if frequently used.
Page 20 Maintenance How to clean a nozzle 1. Stop pressure washer and shut off water source 2. Trigger the gun and release the pressure 3. Take off the spray lance 4. Take off the spray nozzle and clear resides in it with a needle. 5.
Page 21: Troubleshooting Chart
Troubleshooting Troubleshooting chart Trouble Cause Solution Engine Refer to engine owner’s manual Water source is closed Open it Water Gas source is closed Open it heater can Increase the inlet water pressure to at not be Low water pressure least 0.02Mpa ignited No electricity Change dry cell...
Page 22 Troubleshooting Troubleshooting chart Trouble Cause Solution Black spray nozzle is not used Change into black spray nozzle Strainer blocked Clean Injector strainer is not Put the strainer fully into the Detergent is not dipped into the detergent detergent sucked up Detergent is of high density Dilute the detergent...
Page 23 Troubleshooting Troubleshooting chart Trouble Cause Solution Oil seal broken Tighten it Oil drain plug loosen Check and reinstall O-ring (oil drain plug) Pump drops oil broken Check and change O-ring (respirator) broken Check and change Too much oil Check and drain out some oil Trouble Cause Solution...
Page 24: Storage And Transportation
Storage & transportation Storage For engine storage, please consult with the engine instructions. Pump storage： ·Drain off the water in high pressure hose, twist and put it on the frame. ·Trigger the gun, release all the water, and put it on the frame, with the spray nozzle side down.
Page 25: Scope Of Application
Scope of application Application Higher PSI, more choices for use occasions application 1500 PSI 2600 PSI 3000 PSI 4000 PSI BBQ frame Bike Deck Wood fence Boat Railway Road Painting surface Trailer Agricultural machinery Construction field Oil paint...
Page 26 XY55 pump layout Layout 1...
Page 27 XY55 pump component Item Name Qty. XY5501 crankcase XY5502 embolism,3/8 XY5503 O type ring XY5504 baffle XY5505 reinforced seal XY5506 embolism, 1/4 XY5507 pump body XY5508 thrust Washer XY5509 flange bolt XY5510 O type ring XY5511 pump valve seat XY5512 pump valve disc XY5513 pump valve spring...
Page 28 XY55 pump component XY5530 red copper gasket XY5531 Piston pin XY5532 Crankcase cover XY5533 flange bolt XY5534 O type ring XY5535 connecting rod XY5536 connecting rod shaft XY5537 bolt XY5538 Gasket XY5519 Connecting seat XY5540 bolt XY5541 gasket XY5542 Oil seal cover XY5543 O type seal XY5544...
Page 29 XY55 pump layout Layout 2...
Page 30 XY55 pump component Item Name Qty. XY5549 water pressure regulator XY5550 spring XY5551 spring washer XY5552 Fluorine back washer XY5553 O type ring XY5554 Valve rod XY5555 locknut XY5556 Regulator joint XY5557 O type ring XY5559 O type ring XY5560 Fluorine back washer XY5561 Composite gasket...
