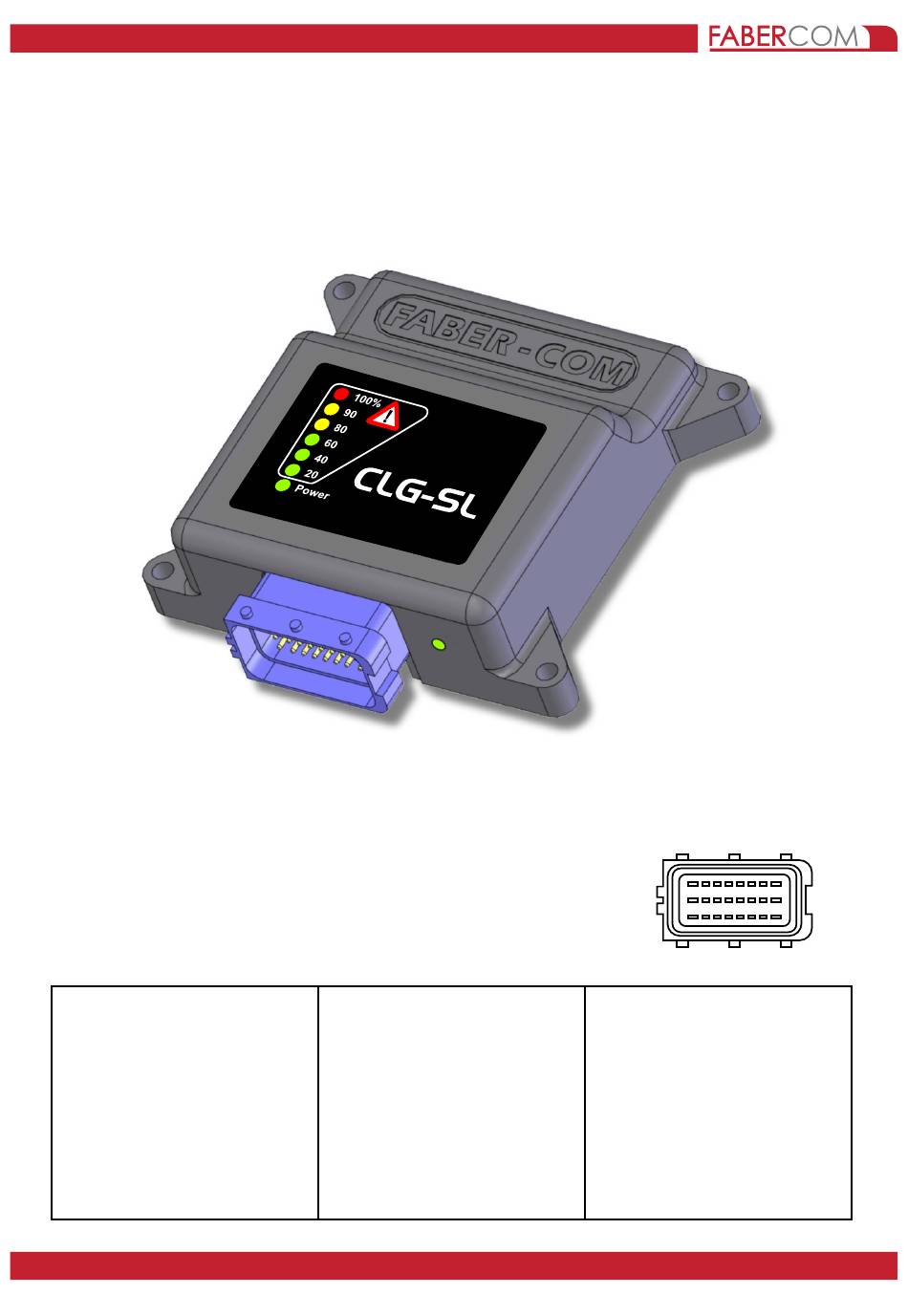

FABER-COM CLG-SL Quick Start Manual

CLG-SL MAP2 / MAP2L

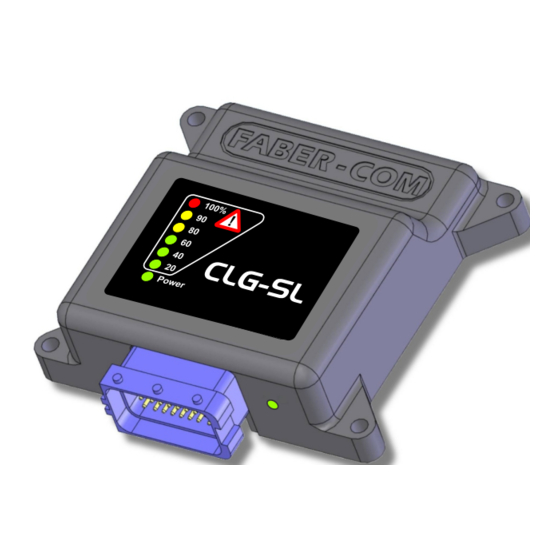

Load limiter for crane
CLG-SL Load limiter is an electronic device able to control the load of the crane (or another machine) through a
pressure transducer, and limits the operations that would cause an overloading and/or an overturning of the
machine, acting on the bypass valve.
Overall dimensions: 138 x 110 (147 with connector) x 38 mm
Drilling interaxis: 119 x 99 mm (n° 4 screw M5)
Pinout FCI connector (24 ways)
A1 - Power supply
A2 - +V transducer supply
A3 - not used
A4 - +V switch supply
A5 - +V switch supply
A6 - not used
A7 - DV input
A8 - Emergency input
FABER-COM srl - Via Romana 36/1 - 42028 Poviglio (RE) - Italy Tel. +39-0522-960428 Fax. +39-0522-969644 - www.fabercom.it
\Prodotti\Limitatore CLG\PCLG-LxE[CLG-SL- Barra LED]\Documenti\SM#Limitatore CLG-SL_v102 - 19/04/2017
B1 - RX serial comm.
B2 - +V PRG2 supply
B3 - ground for 90% signal
B4 - +ELV1 signal
B5 - ELV1 ground
B6 - input TRANSD. 1 (P)
B7 - input DECREMENT
B8 - Emergency output
8 7 6 5 4 3 2 1
C1 - TX serial comm.
C2 - PRG2 ground signal
C3 - ground for 100% signal
C4 - not used
C5 - not used
C6 - input RESET
C7 - not used
C8 - GND
A
B
C
Page 1 / 6
