8712333COM

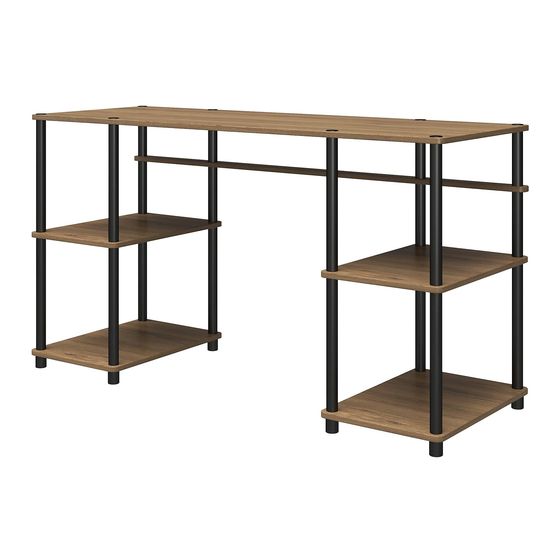

CONDOR DOUBLE PED DESK
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WARNING
- UNIT CAN TIP OVER CAUSING SEVERE INJURY OR DEATH.
- ANCHOR UNIT TO STUD IN WALL (if instructed to).
- DO NOT ALLOW CHILDREN TO CLIMB ON UNIT.
- PUT HEAVY ITEMS ON LOWER SHELVES OR DRAWERS.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
B348712333COM00MP
Tough
You
Tube
Advertisement
Related Manuals for Ameriwood HOME CONDOR 8712333COM
Summary of Contents for Ameriwood HOME CONDOR 8712333COM
- Page 1 - UNIT CAN TIP OVER CAUSING SEVERE INJURY OR DEATH. - ANCHOR UNIT TO STUD IN WALL (if instructed to). Follow Ameriwood Home - DO NOT ALLOW CHILDREN TO CLIMB ON UNIT. - PUT HEAVY ITEMS ON LOWER SHELVES OR DRAWERS.
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 20 MINUTE... -
Page 3: Part List
Not actual size Shelf Panel Top Panel T8712333020MP T8712333010MP (QTY:4) (QTY:1) Long Cross Bar Panel T8712333030MP (QTY:1) Part List Not actual Size SHORT POLE LONG POLE TMP301621 TMP303401 (QTY : 12) (QTY : 8) TOP CAP ROUND LEG TMP032021 TMP034381 (QTY : 8) (QTY : 8) ameriwoodhome.com... - Page 4 STEP 1 Use Long Pole to join the round leg with Shelf Panels (B) as below shown. - Make sure the board finishing surface are placed upwards. Assembly must be on flat surface STEP 1.2 Turn clockwise until tight. Do not over tighten STEP 1.1 LONG POLE 8pcs...
- Page 5 Use Short Pole & Long Pole to join Shelf Panels (B) as below shown. Make sure the board finishing surface are placed upwards Assembly must be on flat surface STEP 2.2 STEP 2.1 Turn clockwise until tight. Do not over tighten 4pcs LONG POLE 4pcs...
- Page 6 STEP 3 - Use Short Pole to join the Short Pole with Long Cross Bar Panel (C) as below shown. - Make sure the board finishing surface are placed upwards - Assembly must be on flat surface Turn clockwise until tight. Do not over tighten SHORT POLE 4pcs...
- Page 7 STEP 4 - Use Top Cap to join the unit with Top Panel (A) as below shown. - Make sure the board finishing surface are placed upwards. Turn clockwise until tight. Do not over tighten TOP CAP 8pcs ameriwoodhome.com...
-
Page 8: Maximum Loads
Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. Certificate of Conformity 1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual. 2. - Page 9 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com...
