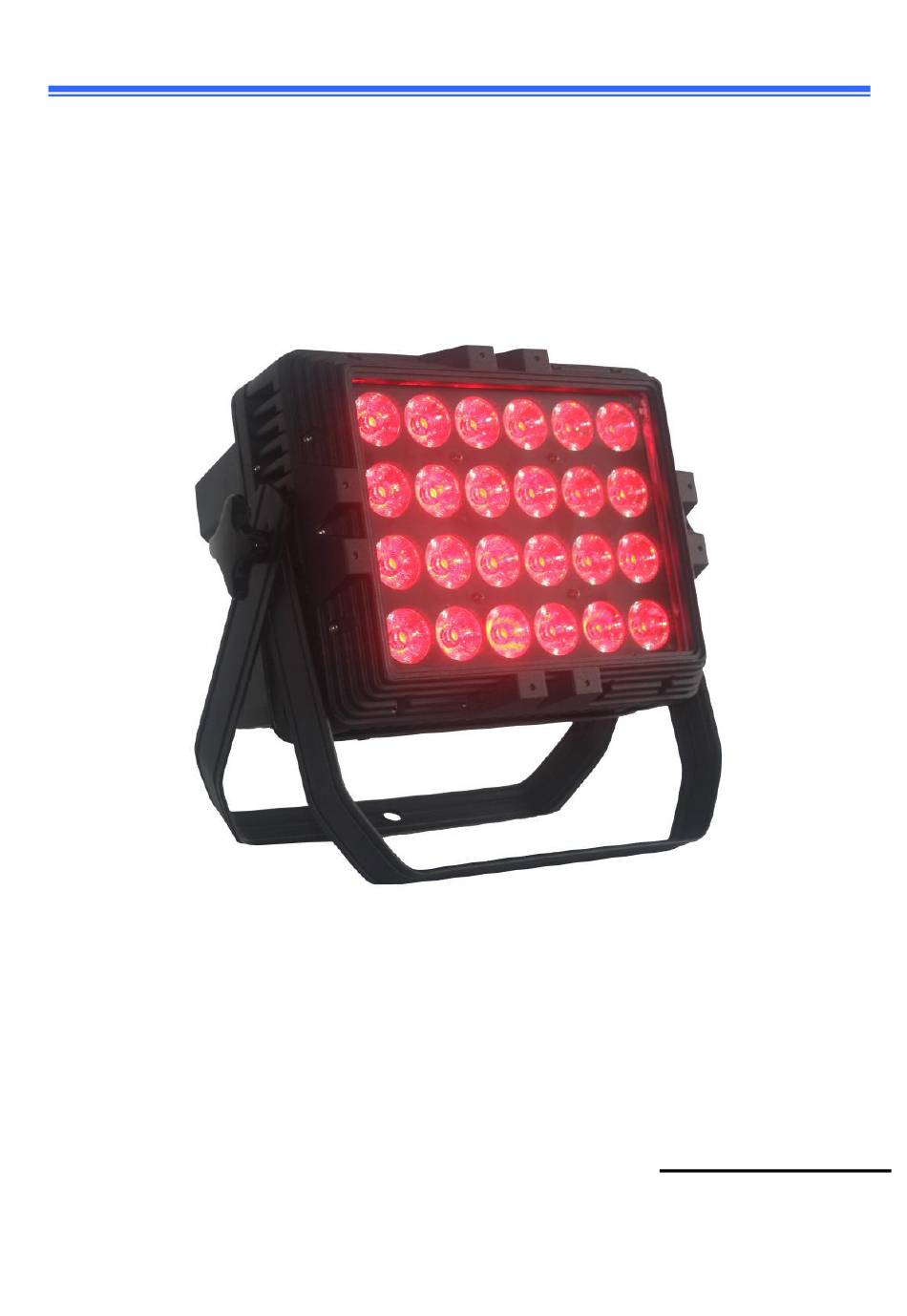

- Page 1 HC-015F 24*12w 6in1 RGBWA+UV led par User manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions..................2 2. Technical Specifications................4 3. How To Control The Unit................5 4. Trouble shooting..................10 5. Fixture Cleaning..................11 Statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee,... - Page 3 The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked. Disconnect main power before replacement or servicing. Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
-
Page 4: Technical Specifications
visibly damaged. Caution: There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. -
Page 5: How To Control The Unit
Construction Display: Digital panel Data In/Out socket: 3-pin IP rate:IP65 Features Dimming：32bit Refresh rate：20K HZ Flicker free in camera,TV Perfect dimmer curve Best color mixing effect 3. How to Control the Unit The DMX512 is widely used in intelligent lighting control, with a DMX 512 controller. - Page 6 Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address", and press "ENTER" keys to enter into Show "Set DMX Address DMX Address: 001", Press the "UP and DOWN"...
- Page 7 colour pulse variable, (01-99) dE01 B and C modify pulse variable, velocity gradient dENo Jump, Gradient and pulse variable Sound control,Jump,Gradient and bEbE pulse variable Red colors, (000-255) R255 B, C key to modify the colors Green colors, (000-255) G255 B, C key to modify the colors Blue colors, (000-255) B255...
- Page 8 DMX512 7 Channel DMX512 Channels Function Details Value R dimmer, linear, dark 0-255 →bright (0-100%) G dimmer, linear, dark Green 0-255 →bright (0-100%) B dimmer, linear, dark Blue 0-255 →bright (0-100%) W dimmer, linear, dark White 0-255 →bright (0-100%) A dimmer, linear, dark Amber 0-255 →bright (0-100%)
- Page 9 DMX512 11 Channel DMX512 Channels Function Details Value R adjustment, linear, 000-255 dark →bright (0-100%) G adjustment, linear, Green 000-255 dark →bright (0-100%) B adjustment, linear, Blue 000-255 dark →bright (0-100%) W adjustment, linear, White 000-255 dark →bright (0-100%) A adjustment, linear, Amber 000-255 dark →bright (0-100%)
-
Page 10: Trouble Shooting
RGBWA+UV (0-100%) R, G, B, W,A,UV strobe, Strobe 000-255 slow →fast 10-50 Jump effect 51-100 Gradual change Function 101-150 Pulse variable effect CH10 Choose Jump, gradual and pulse 151-200 variable effect 201-255 Sound control Function Speed, slow CH11 Speed 000-255 →fast 4. -
Page 11: Fixture Cleaning
2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one. 4. - Page 12 Parts List Name Picture Quantity Power cable European/British standard/American Standard,etc. Can choose XLR cable in&out One set Waterproof cap for DMX One set cable and power cable...
