- Page 1 ENGWE-BIKES Operation and maintenance manual Before using the e-bike, please read the attached operating instructions. Carefully read the safety rules.
-
Page 2: Importance

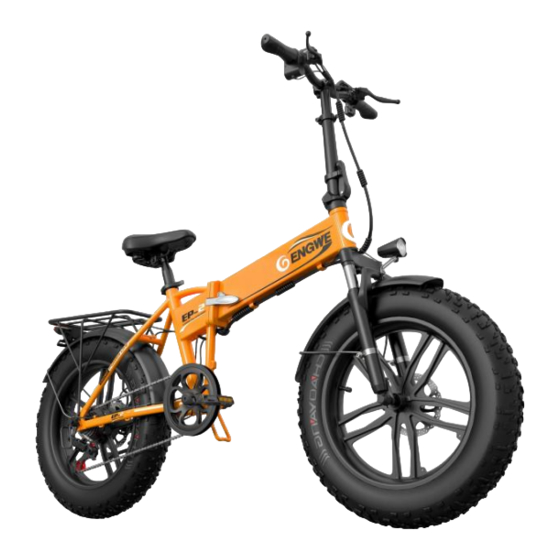

IMPORTANCE When using the electric bicycle, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, or e-bike in water or other liquid. 3. - Page 3 EP-2 / EP-2 Pro / ENGINE Pro * Please note that this is a general manual. So, the frame style of the electric bicycle (e-Bike) that you have may differ from the picture shown in this manual.
-
Page 4: Table Of Contents
Importance………………..…………………………………………………… P1 Compliance with the Law …………………………………………………. P4 Assembling …………………………………………………………………………P5 Operating Your New e-Bike ………………………………………………… P10 Maintenance ……………………………………………………………………… P13 Specifications …………………………………………………………………… P14 Safety ……………………………………………………………………………… P15 Trouble Shooting ………………………………………………………………… P17 PLEASE NOTE: This manual is not intended as a detailed user, service, repair or maintenance manual. Please seek assistance from a qualified technician for service, repairs or maintenance. -
Page 5: Compliance With The Law
Read This First: Safety and Compliance with the Law Congratulations on your purchasing of your new e-bike. Your new e-bike is an excellent piece of personal transportation equipment that will give you good service for many years. Before you start using your e-bike, we want you to be aware of a few important points. Please read this section carefully.. -
Page 6: Assembling
Assembly is quite easy as most of the parts are already assembled; you need only to put a few large pieces together to complete the job. For more information, please refer to this website: www.engwe-bikes.com. Name of each Part ... - Page 7 Check that the Package is Complete and Undamaged Your e-bike comes in a carton containing the following: The main body of the e-bike – consisting of the frame, the rear wheel, the gear and chain, the rear brake, the battery in the frame, the rear fender.
- Page 8 Assembly - Step 1: Attach the handlebar subassembly Stand the main body of the e-bike on the kickstand. Stand up and lock the steering column that is at the front of the main body frame, insert the stem of the handlebar subassembly into it.
- Page 9 Assembly - Step 3: Attach the Front Wheel and Adjusting the Front Brake Make sure that the fork from the steering column is pointing forward. Remove the protective bar from the front fork, place the front wheel within the fork and the brake disc within the brake block, seat the axial stem properly within the receptacles at the tips of the fork, and tighten the nuts with the multi-tools.
- Page 10 Assembly - Step 5: Charging the Battery Remove the charger from the box, attached the power cord and insert that to any wall outlet. Insert the plug at the end of the smaller cable into the charging terminal of the battery and start charging. The charging terminal is on the side of the battery opposite to a hole on the side of the frame.
-
Page 11: Operating Your New E-Bike
Operating Your New e-Bike The method to turn on the bike is: I, twist the battery lock counterclockwise to the end to turn on the battery; II, press power button on the left handle bar until the display lights on; III, ride on the bike and twist the throttle bar or pedal the bike, the bike will move, you can change the power level with control buttons, level 1 is the slowest and level 5 is the fastest, level 0 is human model. - Page 12 I-ERS, Cruise Control and Ambient Light Detection (Only for ENGINE Pro) I-.I-ERS is stand for Intelligent Energy Recovery System. It allows the battery to get recharged when it is on high speed or downhill. Over 20km/h(12mph) at PAS 0/1, it will be triggered. II-.Cruise Control will be triggered when you holding thumb throttle for 8 second, and it will be released by braking pedaling or throttling.
- Page 13 Removing the Battery from the e-Bike The battery is an important and costly part of the e-bike. It is designed to be locked into position with a key to preventing theft. You can take further precaution by removing the battery while the e-bike is parked unattended. You may also have a need to remove the battery from the e-bike to recharge it at a location where you cannot park your e-bike.
- Page 14 Care and Maintenance for Your New e-Bike You should, in general, take care of your e-bike the way you would with a regular bicycle by keeping it dry, clean and the moving parts well lubricated. You should also avoid parking your e-bike in exposed areas whenever possible. You should check the effectiveness of the brakes before each use.
-
Page 15: Specifications
Specifications Frame Construction: Aluminum Alloy Wheelbase: 1110mm Gear Range: 7-speed type / 8-speed type Tire Model: 20" (508.0mm) Climb Grade: 30 degree Max load: 150kg (330 lb) Max Speed: 35kmph (22mph) / 40kmph (25mph) / 45kmph (28mph) Power: 500W / 750W Battery Capacity: 10.4Ah/ 12.8Ah Battery Charger Input Voltage: 110/220 volt AC Battery Operational Temperature: 0°to 40°... -
Page 16: Safety
Safety These safety precautions are provided for your benefit to protect you and those around you. Please read and follow them carefully to avoid unnecessary injury, damage to the product, or damage to other property. Battery Battery Charger... -
Page 18: Trouble Shooting
Trouble Shooting As one or more causes of failure might lead to the failure phenomenon, you should find out the true cause(s) and then take the appropriate solution(s) to rectify the problem. In case of doubt, please consult a qualified technician for service, repairs or maintenance. - Page 19 Manufacturer: Shenzhen Engwe Intelligent Technology Co.,Ltd. Address: Room 207, Jiangnan Building, Yongxiang Rd, Bantian St, Longgang Dist, Shenzhen, Guangdong, China Post Code: 518129 Email: service@engwe-bikes.com The manufacturer reserves the right to change the features of the product without prior notice.
Need help?
Do you have a question about the EP-2 and is the answer not in the manual?
Questions and answers
I need to find out about missing front wheel spacers on the front axel. There wasn't any there and the wheel axel was loose. Missing front axel spacers where & how do I get parts needed?
@George Grabek I need to find out about missing front wheel spacers on the front axel. There wasn't any there and the wheel axel was loose. Missing front axle spacers where & how do I get parts needed?
I recently bought an Engwe EP2 pro and I have problem to unlock the throttle...and to access to the settings menu And at this point I don't know what I have to do...I hope you can help me
To unlock the throttle on the Engwe EP-2 Pro:
1. Turn off the bike.
2. Hold the throttle at maximum.
3. Press and hold one or both brake levers.
4. While holding throttle and brake(s), press and hold the power button.
5. When the LCD screen turns on, release only the power button.
6. Keep holding the throttle and brake(s) for about 10 seconds.
7. Release all.
To access the settings menu (for speed unlock):
1. Hold the throttle for about 15 seconds while the bike is on.
2. Wait for the screen to change and show a new speed limit (e.g., 100 km/h).
3. Use the plus/minus buttons to exit the menu.
This enables throttle use regardless of assist mode and increases speed performance.
