iPuray BRT-601 Quick Start Manual

Touch Pad Timer Switch with Remote Control
(No Neutral Required)
Model #： BRT-601
Features:
BRT-601 is a touch pad timer switch which is controlled by a micro controller unit. In addition to
a wall mount touch pad unit, it also has a handheld IR remote control. It is designed for easy
installation and retrofit, directly fit into standard wall box with no need for the neutral.
 Control over up to 4 loads. Each load can have a delay-off time of 30 seconds or instant
on/off;
 Easy to use. Four touch pads to turn on or turn off the load, and one touchpad operation to
turn off all the loads;
 Good for all kinds of loads (resistive, inductive, or capacitive);
ABS-V0 flame resistance material; and

 Classical 86 series design and high quality build.
Front View and Back View:
Fig. 1 and Fig. 2 show the front view and the back view of BRT-601 touch pad timer switch with
remote control respectively.

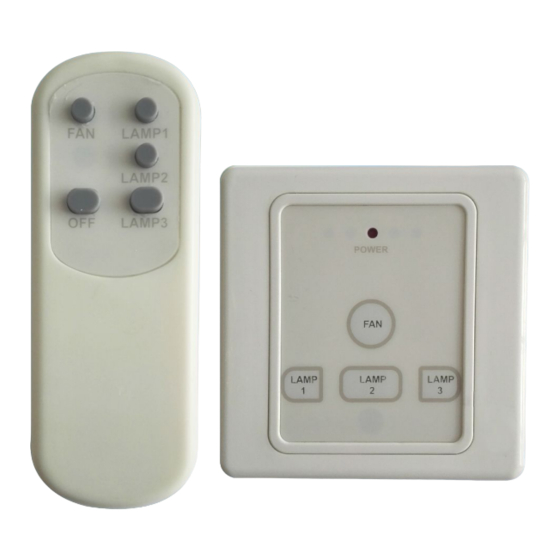

Fig. 1 Front View
Product Description of BRT-601
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2 Back View
Page 1 of 5
