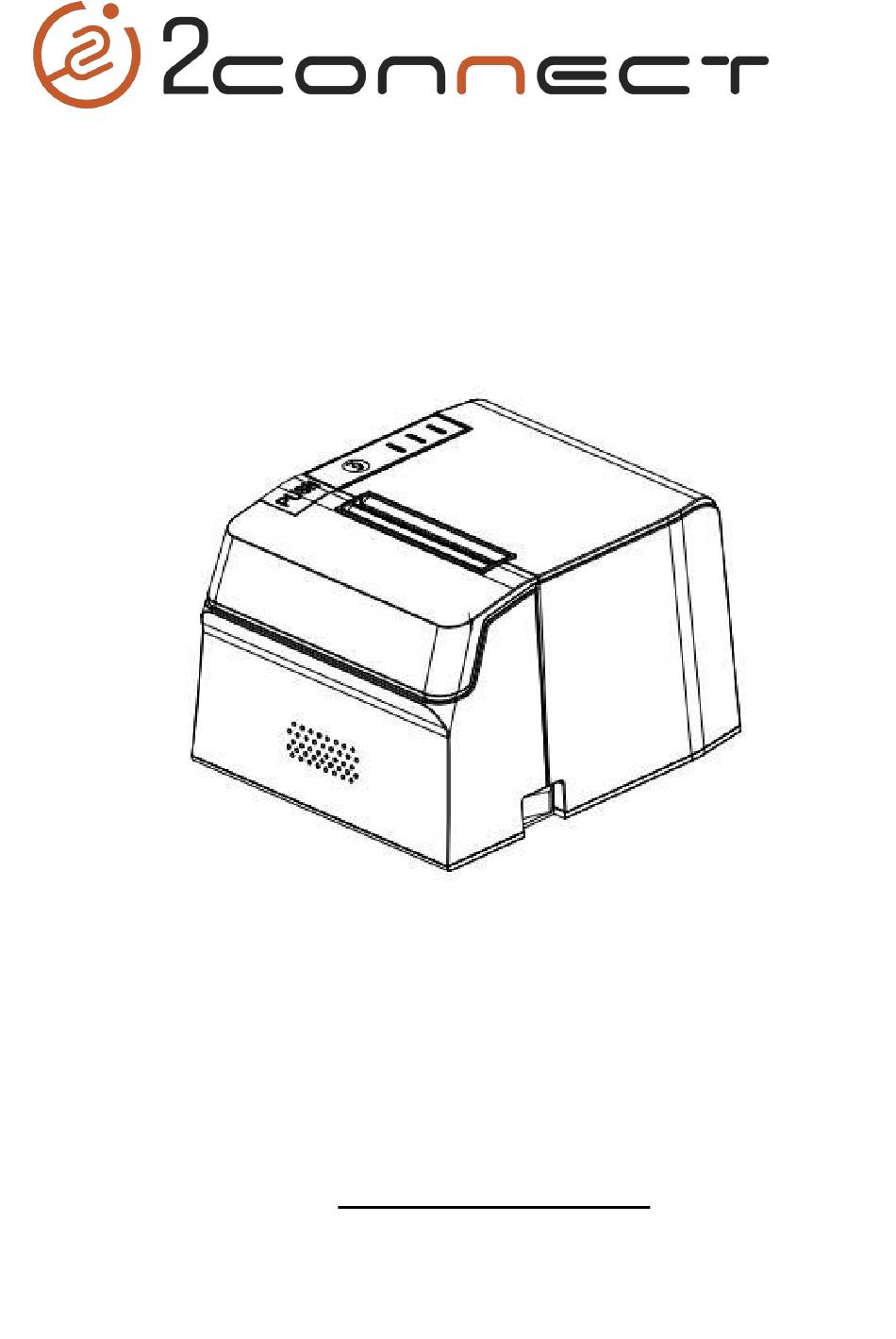

  • Page 1 POS Thermal Receipt Printer 2C-POS80-02 User’s Manual (Ver 1.05) www.2connet.com...
  • Page 2: Table Of Contents

    Content Introduction ................................1 Chapter 1 Feature and Performance ....................... 1 1.1 Print Performance ............................1 1.2 Print Paper ..............................2 1.3 Print Font ............................... 2 1.4 Interface ................................. 2 1.5 Print Control Commands ..........................3 1.6 Power Supply ..............................3 1.7 Operation Environment ..........................
  • Page 3: Introduction

    Introduction It is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. Small outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print.
  • Page 4: Print Paper

    1.2 Print Paper ● Thermal paper roll model: TF50KS-E (Japan paper co.ltd) AF50KS-E (JUJO THERMAL) ● Thermal paper roll: Paper Type--Thermal Paper 79.5 xф80mm(max) Inner Diameter---13mm (min.) --- 0.06mm~0.08m Thickness 1.3 Print Font ● ANK Character Set 12×24 dots,1.5(W)×3.00(H)mm ● GB GB2312-80(Chinese): 24×24 dots,3.00(W)×3.00(H)mm.
  • Page 5: Print Control Commands

    1.5 Print Control Commands ● Character print commands: support double-width, double height print of ANK characters, user-defined characters and Chinese characters, the character line spacing is adjustable. ● Graphics print commands: support the print of bit-map graphics and download bit- map graphics with different density ●...
  • Page 6: Model Classification

    1.9 Model Speed Model Interface Print speed (Max) 160mm/s – 200mm/s 2C-POS80-02 USB + LAN Chapter 2.0 Operation Specification 2.1 Printer Appearance Printer part name diagram: Figure 2-1 Printer Part Name Diagram...
  • Page 7: Paper Installation

    2.2 Paper Installation 2.2.1 Paper Loading This printer adopts 79.5mm±0.5mm width thermal paper roll. Steps of Loading Thermal Paper are as below: Hold down the upper cover button on the left side, open the movable upper cover, draw a certain length of the paper roll, put the paper end on the print head, close the upper cover and press it downwards lightly.
  • Page 8: Interface

    open the paper cover and take out the paper, close the paper cover. The printer will recover automatically from Cutting Error. 2.3 Interface 2.3.1 Serial Interface The serial interface of the printer is compatible with RS-232C, supports DTR/DSR and XON/XOFF handshaking protocols, uses DB9 socket (female). The pin order of the serial port is as Fig.2-2 shows: Signal Pin No.
  • Page 9: Ethernet Interface

    2.3.2 Ethernet Interface The model with Ethernet interface use RJ45 Network socket. The appearance is as Fig.2-3 shows: Fig2-3 Ethernet Interface 2.3.3 USB Interface The standard accessories of the printer includes a Mini USB cable with D Type connector which connects printer and main device. The USB type belongs to the slave device type(DEVICE).
  • Page 10: Power Connection

    Fig.2-5 Cash Drawer Interface The pin assignment is as below: Pin No. Signal Direction —— Chassis Ground Cash drawer driver signal 1 Cash drawer on/off status signal —— +24VDC Cash drawer driver signal 2 —— Signal ground 2.3.5 Power Connection The printer uses the external power supply adopter as 24V±10%,1.5A, power socket is A-1009-3P model, as Fig.
  • Page 11: Buttons And Indicators

    2.4 Buzzer, Buttons and Indicators There is one button and one inner buzzers and three indicators on 2C-POS80-02 printer. 【FEED】is paper feeding button, the function of its enabling or disabling the button on/off can be set by print command, when the button is enabled, press 【FEED】...
  • Page 12 3. Auto-recoverable error, the indicator flickers and the buzzer sounds persistently. 4. Paper out, PAPER OUT indicator lights and the buzzer sounds persistently. When the paper case cover is open, whether the paper is out or not will not be tested, but just testing whether there is paper in printer.
  • Page 13: Power On Status

    . Auto-recoverable error, indicator flickers constantly, including printing head over- ③ heat error and upper case cover opening error during printing. ERROR Indicator Flickering ERROR Type ERROR Description Type LED Flickers constantly: printing head Auto-recoverabl over-heat; upper case cover opening e error error during printing 2.5 Power on status...
  • Page 14: Hexadecimal Printing

    2.7 Hexadecimal Printing Turn on the printer according to the step below, it will enter the mode of Hexadecimal Printing Open the cover; Hold down【FEED】 button,and connect with power; wait for the alarm and close the paper cover. The printer will print out 3 lines as below: Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times.
  • Page 15: Enter The Program Upgrade Mode

    2.9 Enter the program upgrade mode When printer is power off,open paper case cover. Hold the【FEED】button, then switch on the printer and release the【FEED】 when the status indicator and paper-out indicator flash alternately. Then press the 【FEED】for five times ( RS232 and USB interface support, Ethernet adopts the web page mode to upgrade directly) and close the paper cover, printer enter the program upgrade mode.
  • Page 16 General Setting: Baud Paper Paper Paper Language Paper Print Speed Print density Rate cover cover cover cover Paper Paper-out Paper Cover Black Buzzer cover reprint Baud rate: FEED FEED FEED 57600 19200 38400 9600 FEED FEED FEED FEED 4800 2400 1200 115200 Language:...
  • Page 17 Buzzer: FEED Error ON FEED Cut ON FEED ALL ON FEED Paper-out reprint: : FEED FEED Black mark mode:: FEED close open FEED...
