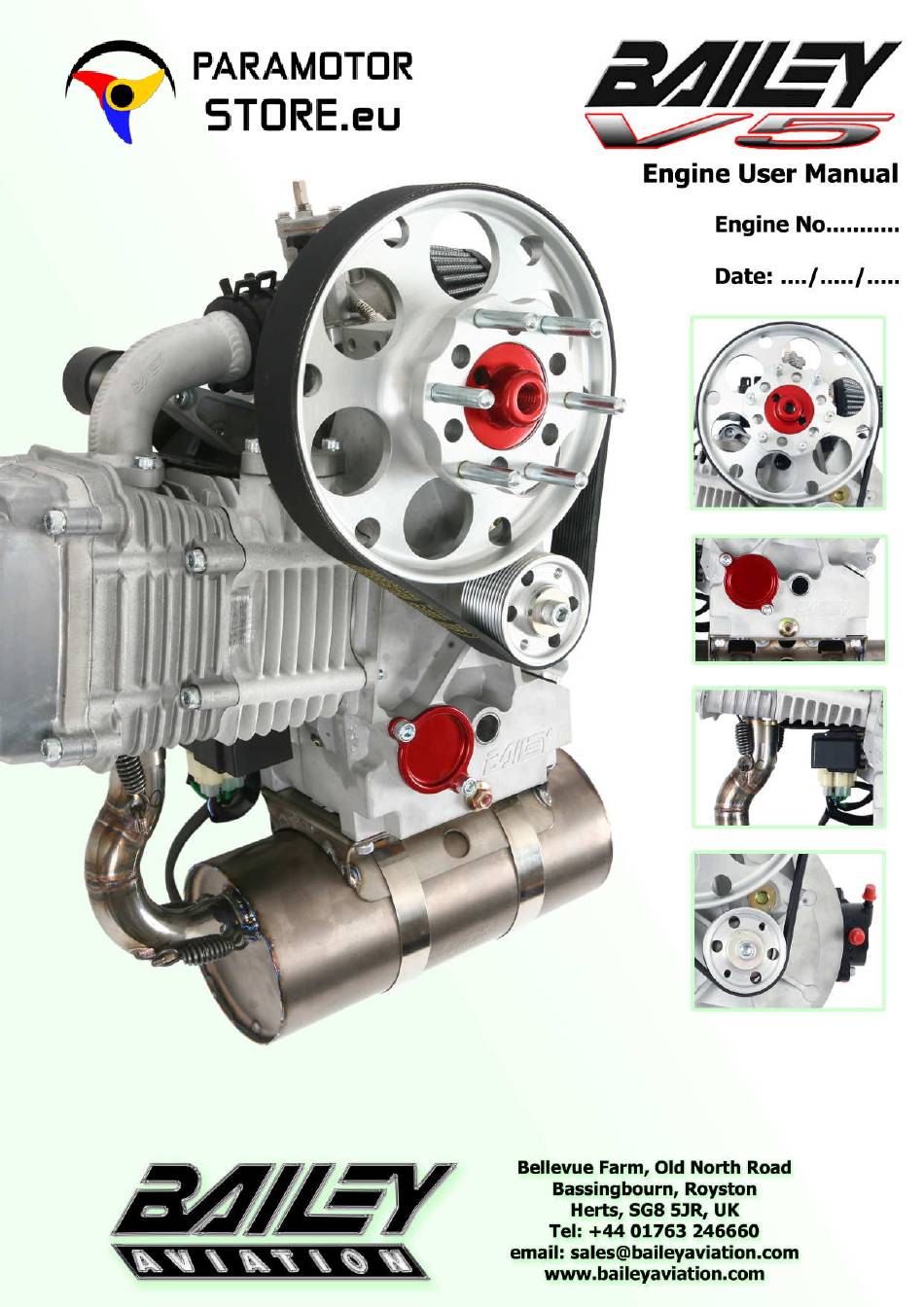

Bailey V5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bailey V5

  • Page 2: Manual Contents

    This manual covers the component parts of the engine, the mounting, running-in, starting/stopping procedures and to offer guidelines on maintenance and proper up-keep of your Bailey V5 engine. Whilst we list pre-start checks, this manual is NOT a substitute for professional flight training.
  • Page 3 Engine Variants The engine is available as a manual (pull) start, known as the V5 or an electric start, known as V5E. The V5E comes with 80W engine generator and voltage regulator/rectifier. V5 and V5E engines are both available with the unique Bailey Quick Release Propshaft (BQRP) with single bolt attachment.
  • Page 4 Engine Weight 17.0Kg The V5E voltage regulator is not compatible with LiFePO4, LiPo or NiMH batteries. Battery must be Lead Acid or Lead Gel type. V5 / V5E Engine Performance & Limitations Power Output 20.5hp @ 8200 RPM Thrust Output (static) >60Kg when used with recommended Helix 1.30m propeller...
  • Page 5 V5 Engine Component Parts V5E Electric Start The pictures below show the starter motor location and design and also the V5E wiring loom, which includes the voltage regulator. Bailey V5 Engine Manual V1.0 Page 3...
  • Page 6 Engine Mounting Schematic / Dimensions Bailey V5 Engine Manual V1.0 Page 4...
  • Page 7 Wiring Diagram – V5 Engine Bailey V5 Engine Manual V1.0 Page 5...
  • Page 8 Wiring Diagram – V5E Engine Bailey V5 Engine Manual V1.0 Page 6...

  • Page 9: Installation Notes

    The V5 carburettor is filled with a vent tube fixed to the top slide screw and a return pipe, which must be returned to the fuel tank. The routing of this return pipe must be arranged so that there is a constant ‘fall’ to the fuel tank with no possibility of fuel ‘puddling’...
  • Page 10 The idle speed is factory preset, but should be 2600- 2900 RPM Adjustments - Exhaust Spring Tension The V5 exhaust uses two T-bolt clamps around the silencer that allow for expansion/contraction of the exhaust assembly. Theses clamps are factory pre-set to provide optimum clamping force.
  • Page 11 Drive Belt – Check the Poly-V drive belt for cracks or wear. Ground Running - Bailey Aviation recommend that you DO NOT ‘Ground run’ the engine. Experience has proven that the ONLY safe place to run a paramotor engine is with it firmly strapped on your back. All pre-flight power checks are best performed whilst wearing the paramotor on your back.

  • Page 12: Operation Notes

    Running-in Your V5 engine has been fully tested prior to customer release, but you must adhere to the following procedure to ensure no damage is caused to your engine in the first few critical running hours. After the first 10 running hours, your engine will be run-in and you must perform an oil and filter change and check the valve clearance settings, as is shown on the service schedule on page 11.
  • Page 13 Service Schedule Please adhere to the following service schedule to keep your Bailey V5 engine in perfect condition – Failure to carry out the necessary action at the selected frequency may cause poor running or more serious problems that may affect your warranty...
  • Page 14 7) Next remove the old paper oil filter element and replace with a new filter (available from Bailey Aviation) and ___replace cover and socket cap screws.
  • Page 15 After adjustment ensure both lock nuts are tightened and re-fit cam cover and engine breather hose. Wipe off any excess oil from the lower cylinder head fins. Bailey V5 Engine Manual V1.0 Page 13...
  • Page 16 Parts List Please find below a list of the parts for your Bailey V5 which we consider to be service or replacement items that may need replacing at certain intervals, due to general wear and tear or as part of our service schedule.

  • Page 17: Warranty

    This manual is for operational guidance on the Bailey V5 & V5E engines only. Use of this engine is entirely at your own risk – Never fly if you are aware of any issues with your equipment, yourself or conditions.
  • Page 18 Notes Please use this section to make your own notes. Bailey V5 Engine Manual V1.0 Page 16...
