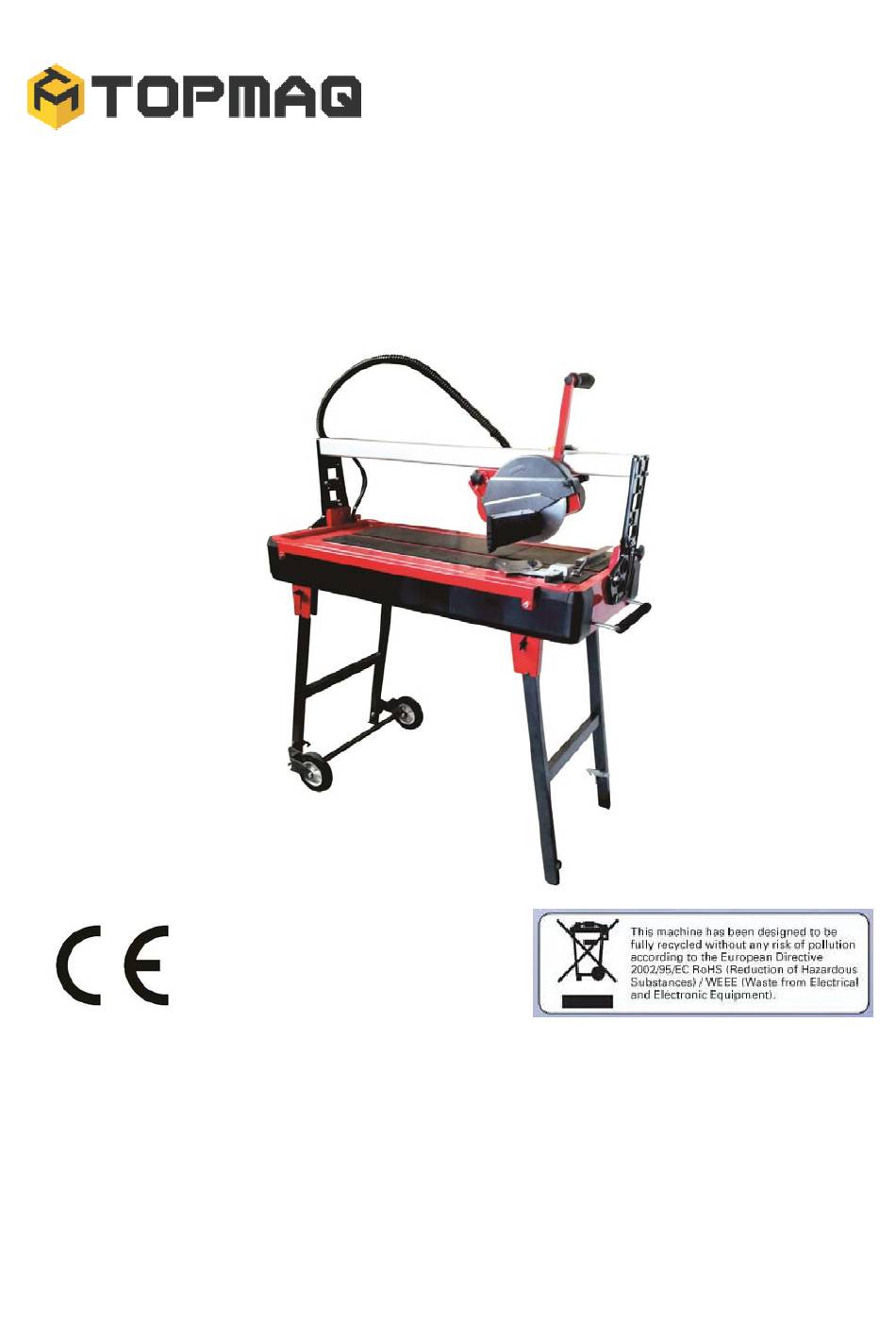

TILE CUTTING SAW

FTD-202A

Operating/user manual

NOTE: Before you use the machine, carefully read instructions properly. Before attempting to operate the machine

properly, familiarize yourself with the controls and make sure you know how to stop it quickly in an emergency. Save this

user's manual and the other documents supplied with this machine for future reference.

TOPMAQ: 32 Hammersmith Drive, Wigram, Christchurch 8042.

TEL: (03) 366 6143. E-mail:info@topmaq.co.nz

http://www.topmaq.co.nz

Table of Contents

Need help?

Do you have a question about the FTD-202A and is the answer not in the manual?

Questions and answers

Summary of Contents for TOPMAQ FTD-202A

Page 1 Save this user's manual and the other documents supplied with this machine for future reference. TOPMAQ: 32 Hammersmith Drive, Wigram, Christchurch 8042. TEL: (03) 366 6143. E-mail:info@topmaq.co.nz...
Page 2: Table Of Contents
CONTENTS PAGE SPECIFICATION ----------------------------------------------------------------------------3 Ⅰ OPERATOR’S INSTRUCTIONS --------------------------------------------------------4 Ⅱ RANGE OF APPLICATIONS AND PROPER USE----------------------------------------------4 GENERAL SAFETY RULES --------------------------------------------------------------------------5 TRANSPORTATION-------------------------------------------------------------------------------------7 Ⅲ SPECIFIC SAFETY RULES-------------------------------------------------------------7 SPECIAL SAFETY INSTRUCTIONS --------------------------------------------------9 Ⅳ V INSTALLATION AND OPERATING---------------------------------------------------9 A. STARTING AND STOPPING THE SAW------------------------------------------------------- 9 B.
Page 3: Ⅰ Specification
Read operator’s instructions Dear customer, thanks for your choice of stone cutter FTD-202A. Please read this manual carefully before installation and operation, and follow it. Please keep this manual in a safety place for future reference. Ⅰ SPECIFICATION Mains voltage (Volt):...
Page 4: Ⅱ Operator's Instructions
Ⅱ OPERATOR’S INSTRUCTIONS RANGE OF APPLICATIONS AND PROPER USE This cutting saw is developed for the cutting of small and moderate size ceramic, marble, granite, and masonry sheet. This saw has the possibility to tilt the diamond blade to cut on the bias (45-90 degree). The diamond blade is cooled by water pump.
Page 5: General Safety Rules
DIRECTION OF BLADE: Please make sure the diamond blade always towards the same direction as the arrow which is molded on the blade guard. GENERAL SAFETY RULES WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following.
Page 6 12 –Secure work Where possible use clamps or a vice to hold the work. It is safer than using your hand. 13 –Do not overreach Keep proper footing and balance at all times. 14 –Maintain tools with care Keep cutting tools sharp and clean for better and safer performance. Follow instruction for lubricating and changing accessories.
Page 7: Transportation
Never use the tool without the PRCD delivered with the tool. Replacement of the plug or the supply cord shall always be carried out by the manufacturer of the tool or his service organization, Keep water clear off the electrical parts of the tool and away from persons in the working area. TRANSPORTATION ●...
Page 8: Special Safety Instructions
 Ensure that cut off tile pieces are not caught by the blade and sent flying.  Never remove loose splinters, Chips pieces while the diamond blade is moving.  Before repairing faults or removing jammed tile, always switch the cutter off and pull out the mains plug.
Page 9: Installation And Operating
2. A grounded mains connection (wall socket) needs to be used. 3. Are the mains lead and the mains plug in a good condition without any loose ends or damage. ● Avoid using long extension cables. ● Always place the cutting machine on a flat surface to prevent instability. ●...
Page 10 (Fig.9). 4. Install the handle on cut unit by attached screws. The screws are attached on the mounting place, Fig.10. 5. The cut unit is locked into place by the lock under the slide rail during transit. Unlock the cut unit before cutting (Fig.11&12).
Page 11: Filling The Water Tray And Draining
C. FILLING THE WATER TRAY AND DRAINING 1. Fill the tray with water through the cutting slot. Don't add chemicals or detergents to the water. 2. Be sure that the water is enough so that the diamond blade turns through appropriate water. This is necessary to cool the blade in a correct way.
Page 12: Making A Mitre Cut
2. Slide the rip miter gauge against the tile and lock the gage by tightening the knob. 3. Position the tile firmly against the fence and rip/miter guide, slowly and smoothly pull blade assembly handle towards you to begin cutting. DO NOT force the motor to cut too quickly. (Fig.19). F.
Page 13: Replacing The Diamond Blade
I. REPLACING THE DIAMOND BLADE WARNING! Disconnect the power supply before installing or making adjustments to the diamond blade. ● CHOICE OF THE DIAMOND BLADE Only use diamond blade with diameter of 200mm, the bore of the blade must be 22.23mm. ●...
Page 14: Alignment Maintenance
Fig.25D-Loose and replace the pump. Warning: make sure that you have pulled the Plug from the main socket when you do the following maintenance. 1. Clean the pump To clean the pump, remove the intake cover, and then take out of the filter foam and impeller cover.
Page 15: Ⅶ Trouble Shooting
gap between the square and the rip fence. When the square is flush against the rip fence re-tighten the two 1/4″ bolts from the side you are adjusting. If necessary, repeat the same steps for the other side. (See Fig.26G) Once both rip fences are secured in place slide the extruded aluminum angle bar firmly against both rip fences and tighten in place for additional support.
Page 16: Accessories
-Have your stone cutter repaired by your supplier. VIII ACCESSORIES 1. Rip/miter cutting guide. 2. Hexagonal blade wrench. 3. Motor shaft holding wrench. 4. Handle. IX SERVICE AND ADDRESS: TOPMAQ: 32 Hammersmith Drive, Wigram, Christchurch 8042. TEL: (03) 366 6143. E-mail:info@topmaq.co.nz http://www.topmaq.co.nz - 16 -...
