SCENTROID Scentinal SL50 Manual

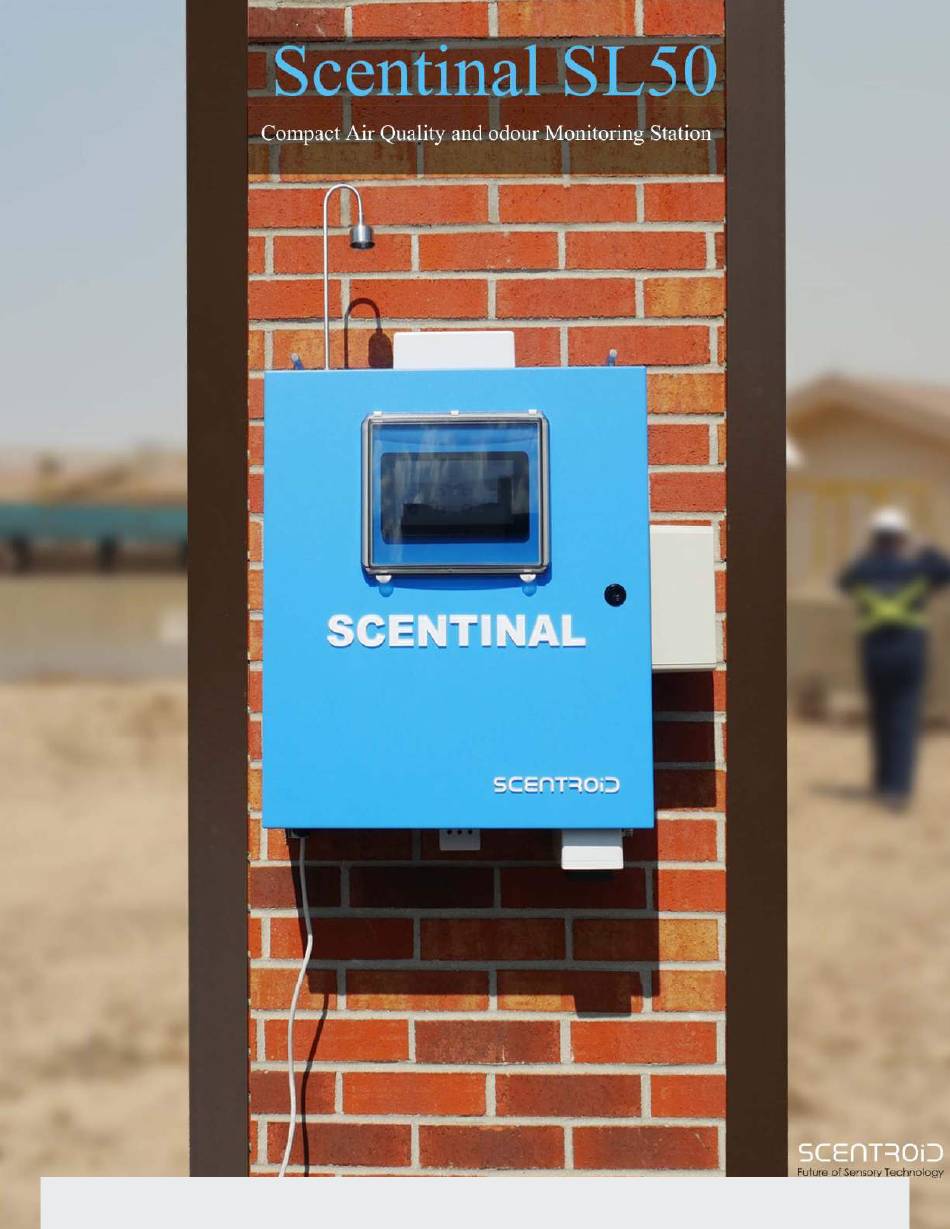

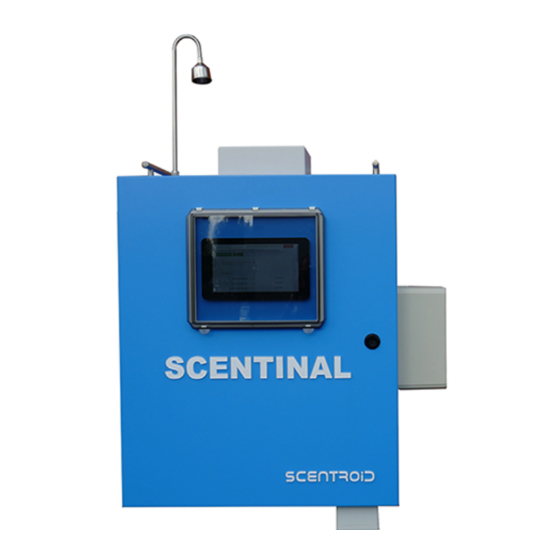

Compact air quality and odour monitoring station

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

(ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches

Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com

Table of Contents

Need help?

Do you have a question about the Scentinal SL50 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCENTROID Scentinal SL50

Page 1 ` (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 2: Table Of Contents
8. Installation, Maintenance and Operation Cost .......... 31 9. After‐Sale Support .................. 34 10. Scentinal .................... 35 www.scentroid.com Page | 1 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 3: Scentinal Overview
www.scentroid.com Page | 2 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 4 7” touch screen monitor or remotely through the SIMS software. (To know more about SIMS software check page 17) www.scentroid.com Page | 3 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches ...
Page 5 Scentinal has minimal operating cost. Just electricity and GPRS data (GPRS costs are less than $100 per year). Add to that Scentroid’s unparalleled 2 year comprehensive warranty, covering all aspects of the instrument including even sensors, and Scentinal becomes...
Page 6 NEMA 4X Mounting hardware Wall and pole mounting hardware included www.scentroid.com Page | 5 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 7: Scentinal Features
Standard on each Scentinal is a separate dedicated micro- computer acting as an on-device server to run Scentroid’s Sensor Information Management System. Through the 7” touchscreen, users are able to view historical data, change system configuration, recalibrate the instrument, and provide real-time diagnostics.
Page 8 www.scentroid.com Page | 7 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 9 The limits and conditions for engagement of each relay can be set based on pollutants or total odour units. All limits and activation conditions are done through SIMS via remote server or on-device touch screen. www.scentroid.com Page | 8 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches ...
Page 10 Each Scentinal can be customized with the exact sensors required for the application at hand. Our flexible pricing means you pay for exactly what you need. www.scentroid.com Page | 9 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches ...
Page 11  LAN  Analog/SCADA The system can either connect to a local server or Scentroid’s cloud based SIMS server. Cloud based SIMS server is included and free for the life of the Scentinal. It is even possible to operate Scentinal ...
Page 12 www.scentroid.com Page | 11 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 13 Scentinal convenient and accurate. Measurement range is from 30 to 100 dB (A). www.scentroid.com Page | 12 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches ...
Page 14 Scentinal can be equipped with on-board wind direction and wind speed sensor. This information can be used to determine localized wind conditions such as turbulence and down drafts. Scentroid offers either ultrasonic or cup and vane wind sensors to fit any application and budget. For gathering meteorological data, Scentroid provides an independent weather station that can installed in accordance to USEPA guidelines.
Page 15 WIFI or LAN network to a local server running a client SIMS database for added security. www.scentroid.com Page | 14 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches ...
Page 16 2.14 Scentinal Sensor List Type www.scentroid.com Page | 15 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 17 Type www.scentroid.com Page | 16 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 18: Scentinal Data Server And Communication Protocol
It is possible to hosting of SIMS (Scentinal Information Management System) on a local server with secure Wi-Fi or LAN connection. Scentroid will provide all necessarily hardware and software to setup a local server. This option includes: •...
Page 19 Scentinal comes as default with GPRS module for wireless communication through existing cell towers. The communication is encrypted and sent to Scentroid’s secured SIMS cloud server. The SIM card required is included and pre-paid for one year. The SIM card is capable in operating in any country with no additional roaming charges. Local SIM cards can also be used if required.
Page 20 www.scentroid.com Page | 19 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 21 SIMS Equipment Setting www.scentroid.com Page | 20 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 22: Odour Monitoring
Scentinal is the world’s only air quality monitoring station that provides simultaneous pollutant and odour measurements. Data from individual sensors is processed by Scentroid’s chemical and olfactometric correlation system to determine odour concentration in OU/m3. The system uses a neural network learning algorithm to determine odour concentration from chemical readings.
Page 23 The software provides quality of the fit and the expected error range to ensure reliable data is used www.scentroid.com Page | 22 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches...
Page 24: Total Odour Management (Toms)
www.scentroid.com Page | 23 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 25 www.scentroid.com Page | 24 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 26: Scentinal Accessories
www.scentroid.com Page | 25 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 27: Scentinal Application (Industries And Recommended Sensors)
  Air Contaminants (Ammonia, Ethanol, Toluene) www.scentroid.com Page | 26 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 28 Particulate PM 1, 2.5, 10 (Simultaneous)  www.scentroid.com Page | 27 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 29 www.scentroid.com Page | 28 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 30   Formaldehyde www.scentroid.com Page | 29 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 31 Sulphur Dioxide  Nitrogen Oxides www.scentroid.com Page | 30 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 32: Installation, Maintenance And Operation Cost
www.scentroid.com Page | 31 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 33 www.scentroid.com Page | 32 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 34 Typical sensor life cycle depends on the type of sensor and is between 1 to 5 years. www.scentroid.com Page | 33 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches...
Page 35: After-Sale Support
We also offer you a Hands on training on our high tech simulation room. Scentroid’s state of the art simulation room is located at our head quarter in Canada, Markham. You are more than welcome ...
Page 36: Scentinal
Those are few advantage of our Scentinal SL50 over other air quality monitoring station. To get more information or to speak to one of our engineers about your applications;...
Page 37 (1.9 µg/m3) 200 µg/m3/ 1h Dioxide 40 µg/m3/ 1Y www.scentroid.com Page | 36 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 38 www.scentroid.com Page | 37 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com...
Page 39 431 Alden Road#3 Markham, ON, L3R 4C1 Contact us +1 416.479.0078 Web and Email Email: info@scentroid.com www.scentroid.com www.scentroid.com Page | 38 (ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches...
