To install the mounting bracket, you need to supply your own mounting

screws (6 mm (0.25 in) maximum width).

Note: The IF61 is certified to an IP54 environmental rating

when mounted as described.

To install the mounting bracket

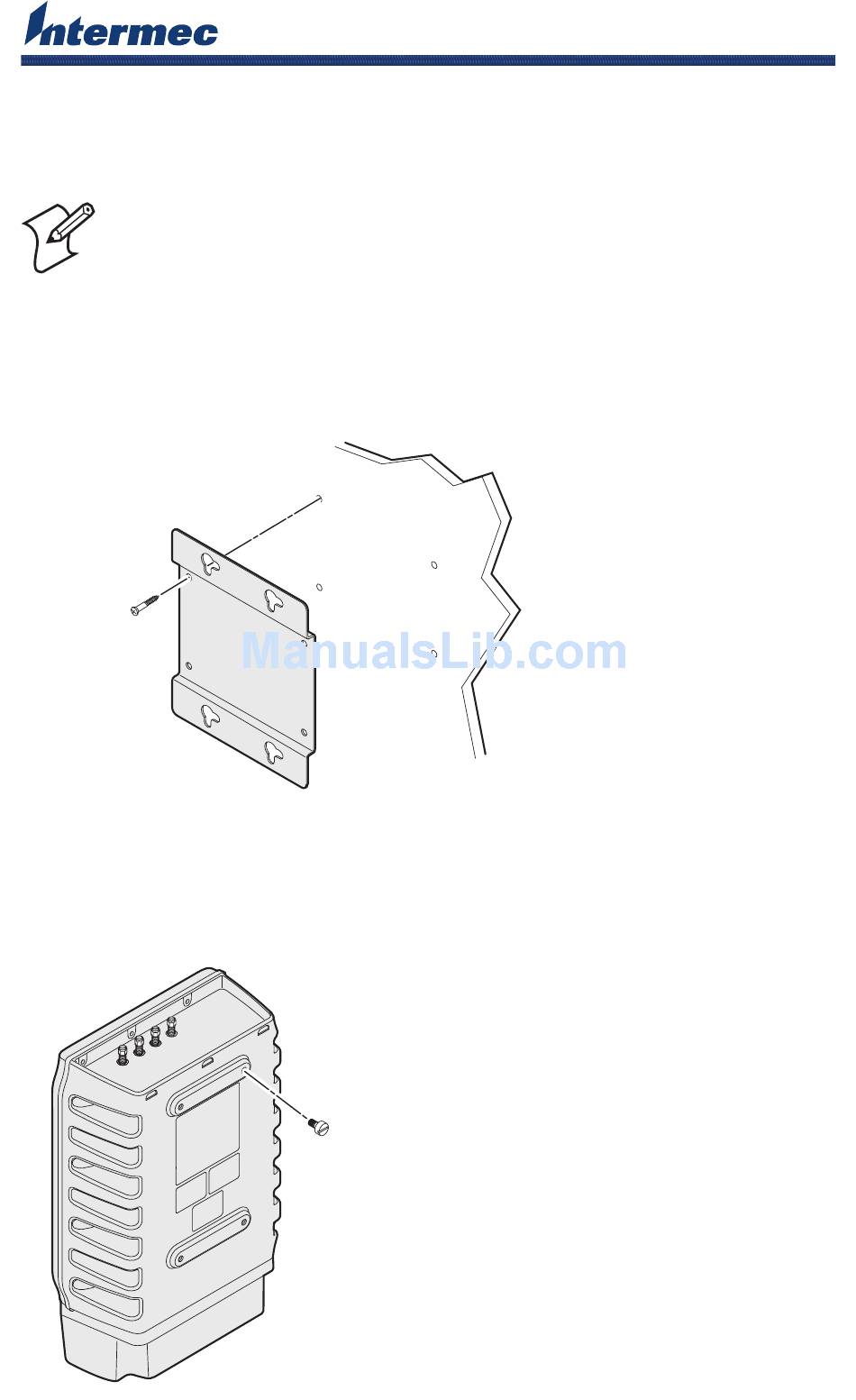

Orient the mounting bracket as shown in the next illustration and use it

as a template to drill four holes in the installation surface.

Mounting

screw

(4 places)

Attach the bracket to the surface with four mounting screws.

Install four shoulder bolts on the underside of the IF61 as shown in the

next illustration. Do not overtighten the bolts.

Fixed Reader Mounting Bracket Instructions

Shoulder bolts

(4 places)

IF61

Page 1 (4 places) Attach the bracket to the surface with four mounting screws. Install four shoulder bolts on the underside of the IF61 as shown in the next illustration. Do not overtighten the bolts. Fixed Reader Mounting Bracket Instructions Shoulder bolts...
Page 2 Position the IF61 on the bracket and slide the shoulder bolts down into the openings on the bracket. For more information on installing the IF61, see the IF61 Fixed Reader User’s Manual (P/N 935-011-001). Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A.
