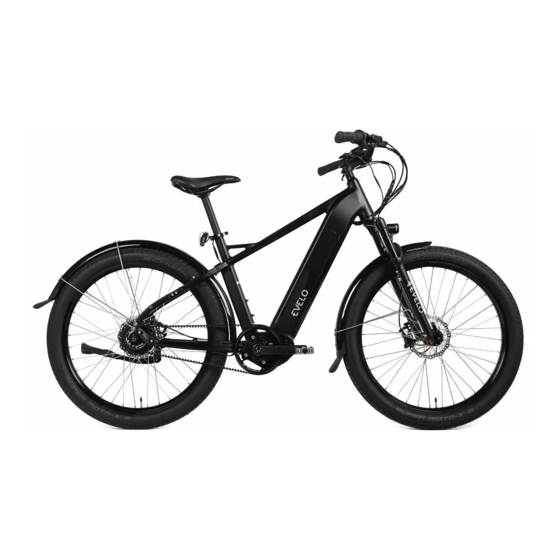

Assembly of EVELO Atlas
The focus of this document is to assist with the assembly of your new EVELO
Atlas. The scope is intentionally narrow – The "User Guide" that was included
with your bike covers a much broader spectrum of topics: fit adjustments,
battery care, controls etc.
Watch the Assembly
Our Team is here to help 7 days a week
contact@evelo.com | 877-991-7272
Instructions Video
Feel free to reach out!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evelo Atlas
Summary of Contents for Evelo Atlas
- Page 1 Assembly of EVELO Atlas The focus of this document is to assist with the assembly of your new EVELO Atlas. The scope is intentionally narrow – The “User Guide” that was included with your bike covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
- Page 2 Carefully remove all packing material from Tools and User Guides will be in the small bike, avoid using sharp objects as to protect black Evelo box. The pedals will be in a the paint. small cardboard box. Lower kickstand to keep bike upright during assembly.
- Page 3 Install Fender and Headlight Remove the screw in the Front Fork. Remove Spacer. Thread Headlight and Spacer onto screw. Attach Headlight and Fender assembly to fork. ASSEMBLY OF EVELO ATLAS...
-
Page 4: Install Front Wheel
There is a nut on one side, a lever on the other. Remove brake pad spacer from in between brake pads - it may be tight but simply pulls out. If this piece is not in place, skip this step. ASSEMBLY OF EVELO ATLAS... - Page 5 Close the lever, it should be tight enough to leave an imprint on your hand after closing. Make sure the lever is pointing straight up towards the handlebars. Installing the axle incorrectly can result in the wheel coming loose while riding. ASSEMBLY OF EVELO ATLAS...
-
Page 6: Install Handlebars
Remove the 4 screws on top of the stem faceplate. Place Handlebars in cradle and align Replace cover and the 4 screws on top with center. of handlebars. ASSEMBLY OF EVELO ATLAS... -
Page 7: Install Pedals
There is an L and an R stamped into the end of each pedal for reference. It is important to note that the pedals are threaded differently. The right pedal screws in clockwise and the left pedal screws in counter-clockwise. ASSEMBLY OF EVELO ATLAS... -
Page 8: Use Of Battery
Use the key to unlock the battery, the battery the handlebars. releases downward. The battery is heavy, please be careful. When reinstalling, push the battery into place firmly. Power up the bike and you’re ready to ride! ASSEMBLY OF EVELO ATLAS... -
Page 9: Serial Number Location
Serial Number Location To register your bike on our website, you will need to record the serial number. It is located on the headtube of your bike, just above the front fork. ASSEMBLY OF EVELO ATLAS... - Page 10 There is considerable additional information in your “User Guide”. Of course, if you ever have questions, our team is ready to help! Our Team is here to help 7 days a week! contact@evelo.com | 877-991-7272 Feel Free to reach out!
