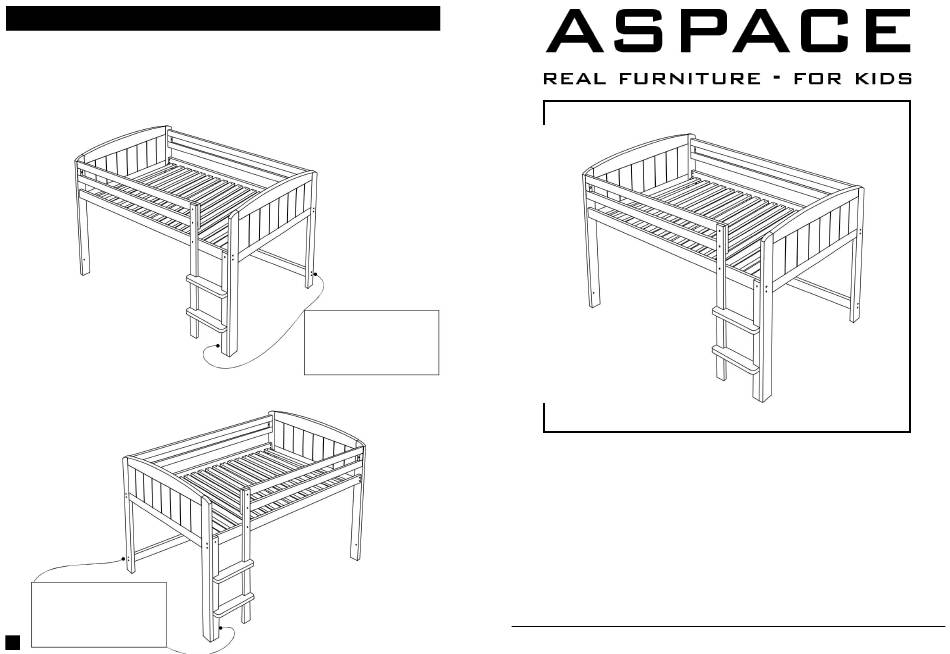

Orientation Options (Bunk Bed)

Please refer to the orientation option images below to help you decide and understand

which way to construct the product.

These are the only two recommended options for the orientation of the Bed.

Orientation Option A

Ladder positioned on

the Right.

Orientation Option B

Single holes must always be

positioned on the ladder side

(front).Double holes must

always be positioned on the

non ladder side (back).

Single holes must always be

positioned on the ladder side

(front).Double holes must

always be positioned on the

non ladder side (back).

Ladder positioned

on the Left.

Salcombe

Mid Sleeper

Code: 3097

PLEASE READ CAREFULLY & KEEP FOR FUTURE REFERENCE

Table of Contents

Do you have a question about the Salcombe 3097 and is the answer not in the manual?

Page 1 Orientation Options (Bunk Bed) Please refer to the orientation option images below to help you decide and understand which way to construct the product. These are the only two recommended options for the orientation of the Bed. Orientation Option A Ladder positioned on Single holes must always be the Right.
Page 2 About ASPACE Many of us at ASPACE are parents, we know what a pleasure it is to provide one’s children with a lovely space where they can feel cosy, secure, loved and in charge (well, up to a point!).
Page 3 5. Attach the Front Guard Rail. Parts Check List (Not to scale) You need: 2x Dowels Once the ladder is in position, carefully fit the front guard rail. Insert 2x dowels into the large holes in the ends of the guard rail (Fig 5.1). Once the dowels are fitted, carefully lift the rail into position aligning and engaging the dowels into the corresponding holes in the bed end.
Page 4 Assembly 3. Assemble the Ladder. 1. Prepare the Assembled Base. You need: 4x Bolts (35mm) and an Allen Key. Note: The ladder must be constructed to suit the left or right hand of the bed. The ladder You need: 8x Bolts (60mm), 8x Barrel Nuts, an Allen Key and possibly a Screwdriver construction shown below only applies for positioning the ladder on the right (orientation option A).
