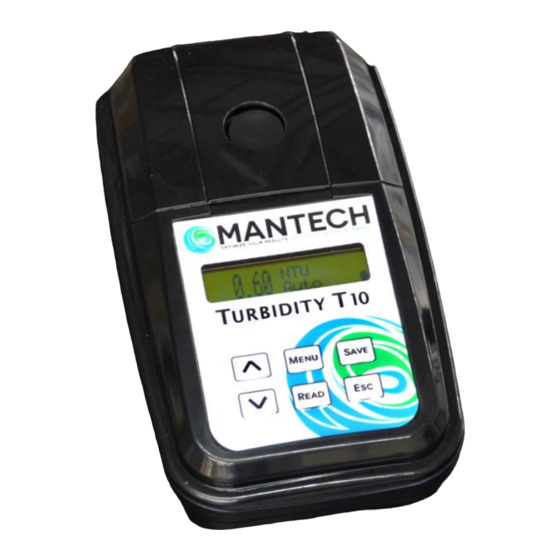

Summary of Contents for Mantech T10
- Page 2 In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages resulting from any defect or omission in this manual. The manufacturer reserves the right to make changes in this manual and the products it describes at any time, without notice or obligation.
- Page 3 1. Technical Specifications ..................................4 2. Installation ......................................5 2.1 Benchtop Setup ....................................5 2.2 Portable Setup ..................................... 5 3. User Interface and Navigation ................................6 3.1 Interface Description ................................... 6 3.2 Menu Navigation ....................................6 4. Calibration ......................................9 4.1 Guided Calibration....................................9 4.2 Free Calibration ....................................
- Page 4 Measurement method Ratio determination using a primary nephelometric light scatter signal (90°) to the transmitted light scatter signal. Reading units NTU/ EBC Lamp Source Tungsten Lamp (White Light); LED Lamp (IR Light) Method Conformity EPA 180.1, ASTM D1889, SM 2130B (White Light); ISO 7027 and EN27027 (IR Light) Detector Silicon Photocell...
- Page 5 1. Set the meter on a flat, clean surface. 2. Plug the meter into a wall outlet using the provided USB cable and a USB power adapter. Depending on country, a USB power adapter may be provided as well. 3. Alternatively, plug the meter into a computer USB outlet. 1.
- Page 6 7. ESC/OFF: Powers the instrument off (3 sec hold), aborts operations, returns to the previous screen To access the instrument menu, hold the MENU key for 3 seconds. The T10 instrument menu is divided into 4 main functions with sub-menus: •...
- Page 7 The full menu structure is listed below, with descriptions: • ID – Access the user ID functions Sample User • Calibrate – Access the calibration functions Guided Cal Free Cal • Config – Access the configuration functions Time/Date – Update the date and time ▪...
- Page 8 Continued from previous page… • Config – Access the configuration functions User Test – Not applicable ▪ User Test 1 ▪ User Test 2 Security – Set the security levels for each menu option ▪ • Security Level • Password ▪...
- Page 9 • Free Calibration A full guided calibration of the T10 is recommended once every 3 months at a minimum, to compensate for changes in light bulb intensity. This calibration is not to be confused with the ‘software calibration’ performed through PC-Titrate when using the Automated Turbidity setup. This calibration is accessed by navigating through the T10 meter menus and is only applied internally to the meter.
- Page 10 2. Wear Gloves *IMPORTANT* and retrieve the T10 Sealed Standard Calibration Kit. 3. Hold the MENU button for 3 seconds, until you see ‘Menu’ appear on screen. 4. Press the DOWN button to show ‘Calibrate’ on screen, then press READ. You will see ‘Guided Cal.’ on...
- Page 11 5. Using a lint-free wipe, wipe down the sides of the sealed 0.02 NTU standard cuvette, then place it in the measuring chamber with the alignment mark facing toward the user and close the lid. Press READ to start the measurement. 6.
- Page 12 7. When the screen prompts you to insert the 20 NTU standard, remove the 0.02 NTU standard cuvette and place it back in the carry case, then insert the 20 NTU standard into the measuring chamber and close the lid. Press READ to start the measurement. 8.
- Page 13 The T10 turbidity meter Free Calibration is a quick, 1-point adjustment to the T10 meter’s internal calibration curve. For end-users operating a Manual T10 Turbidity meter, the Free Calibration is performed with one of the screw-cap cuvettes, filled with the desired standard for free calibration. MANTECH recommends performing the free calibration with an NTU standard around the mid-point for expected sample results.
- Page 14 Screw the cap tightly onto the cuvette. 8. Once more ensure there are no smudges or residue on the cuvette, then insert into the T10 meter with the alignment mark on the cuvette facing towards the keypad. Close the measuring chamber lid.
- Page 15 9. Press the READ button and the meter will start the measurement of the standard. You will see the measurement result appear on-screen once done. 10. Use the arrow buttons to adjust the measured NTU to the expected NTU value of the standard. Hold the SAVE button for 3 seconds to save the free calibration point.
- Page 16 Auto-Shutoff feature can be used to turn off the meter after a period of inactivity. Sample analysis with the Benchtop or Portable T10 is performed using cuvette inserts in a similar manner to the Guided Calibration. The T10 meter is able to store up to 1000 data points internally, each with an associated Sample ID and User.
- Page 18 Automated Turbidity operation with the Flow-Through Cell requires valid module and software calibrations performed within the last 90, and 30 days respectively. Refer to Sections 3.3 and 3.4 for instructions on performing these calibrations. With valid calibrations performed, pour the samples into sequential cups/tubes on the Autosampler tray, then use one of the Autorun buttons on the bottom of the PC-Titrate home screen to bring up a pre-made Timetable template, or...
- Page 19 This configuration is used to change the time and date set within the T10 meter and tagged with each saved sample result. To change the time/date, follow the instructions below. 1. Hold the MENU key for 3 seconds, then navigate to Menu>Config>Time/Date.
- Page 20 1. Hold the MENU key for 3 seconds, then navigate to Menu>Config>Display>Partial Res.0. 2. Use the ↑↓ keys to select between Yes and No. Setting to Yes will show the updating readings as it is taking the average to get the result. Setting to No will show the previous result as it is averaging to get the new result.
- Page 21 1. Hold the MENU key for 3 seconds, then navigate to Menu>Config>Instrument>Color Compens. 2. Use the ↑↓ keys to select between Yes and No. Setting to Yes will turn on color compensation for each reading. Setting to No will turn off color compensation. When activated, a C will appear in the upper right corner of the display on the reading screen.
- Page 22 3. Hold the SAVE key for 3 seconds to set the new number of measurements or press the ESC key to return to the previous menu. This menu is used to set up user names, passwords and sample IDs on the T10 meter. 1. Hold the MENU key for 3 seconds, then navigate to Menu>Config>Instrument>ID>User ID.
- Page 23 2. This menu sets a tag number for the instrument that is available when downloading data from the unit, to set it apart from other T10 meters. 3. Use the ↑↓ keys to type out the tag number for the meter, then hold SAVE for 3 seconds.
- Page 24 This configuration menu allows the user to alter the T10 meter communication parameters. This includes settings for when results are sent, when the logs are sent, the serial baud rate, the log header, CSV separator, and serial communication method. Use the instructions below to adjust these settings.
- Page 25 This feature is not supported with MANTECH automated analysis at this time. NOTE: When a user curve is calibrated, the instrument performance might change due to standards and procedures adopted.
- Page 26 Each menu option can be given a specific security level, and a custom password. The default password for all menu options on the T10 meter is 9999. The cursor must be moved to the left of the last 9, then the user holds SAVE for 3 seconds to check the password.
- Page 27 In addition to rights under statute, MANTECH warrants (to the original purchaser) that all instruments manufactured by MANTECH will be free from defects in materials and workmanship for a period of one year from the date of installation. To the extent permitted by law, you will not be eligible to claim during the Warranty Period with respect to any instrument manufactured by MANTECH unless you complete the accompanying Instrument Registration Card and return it to the address specified within 30 days of installation.
- Page 28 MANTECH are limited to those set out in these warranty terms and under statute. To the extent permitted by law, you acknowledge and agree that MANTECH is not liable to you or any third party (in contract or tort or otherwise) for any loss or damage suffered in connection with: a) instruments or consumables not being available for use;...
- Page 29 • Updated information to include necessary info and exclude unnecessary info • Structure changes • Formatting • This will be first version for distribution after T10 product release • 03-Apr-2020 Justin Updated with new pictures and info www.mantech-inc.com MANTECH Inc.
