Linear Technology SYS-PRO 114432 Manual

114432 | SYS-PRO SINGLECOLOR 1 ZONEN FERNBEDIENUNG MINI

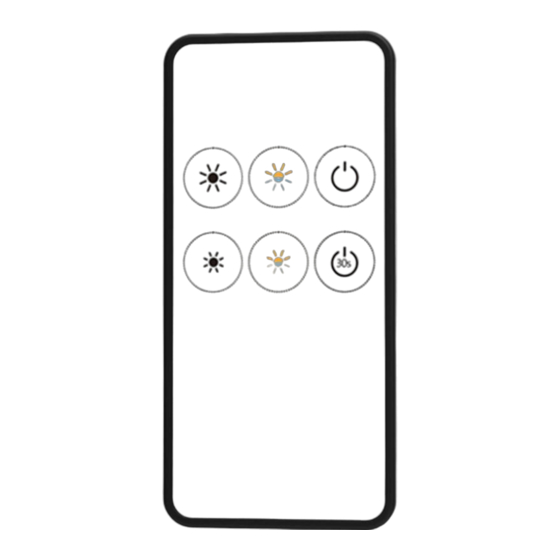

6-Key RF Remote Controller
114444 | SYS-PRO DYNAMIC WHITE 1 ZONES REMOTE CONTROL MINI
Model No.: RM1/RM2
Features
● Apply to single color or dual color LED controller.
● Each remote can match one or more receiver.
● CR2032 battery powered.
● Operate with LED indicator light.
Technical Parameters
Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
Remote distance
Environment
Operation temperature
Case temperature Max.
(
IP rating
User Manual Ver 1.0.2
114432
RM1 RM1
1 Zone Dimming
RF 2.4GHz
( )
3VDC CR2032
( )
＜5mA
＜2 μA
2 years
30m(Barrier-free space)
Ta: -30 O C ~ +55 O C
)
T c: +85 O C
IP20
114444
RM2
RM2
1 Zone CCT
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Warranty
Warranty
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
5 years
