Model: CC1212-XLi

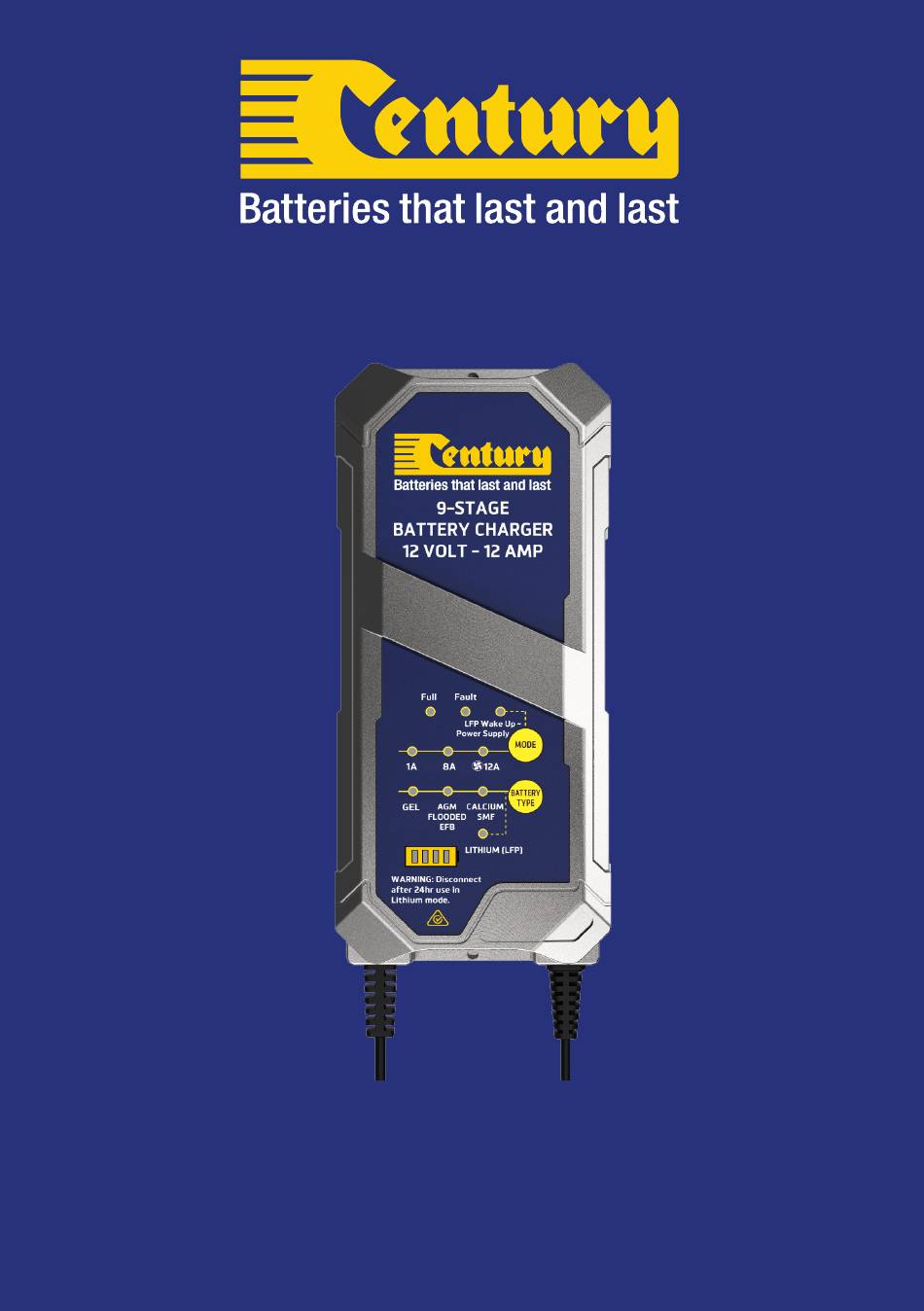

OWNER'S MANUAL
AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC1212-XLi and is the answer not in the manual?

Questions and answers

Related Manuals for Century CC1212-XLi

Summary of Contents for Century CC1212-XLi

  • Page 1 Model: CC1212-XLi OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
  • Page 2 Please take time to carefully read and understand this manual before using this charger. IMPORTANT SAFETY ADVICE AND WARNINGS • The CC1212-XLi is designed to charge and maintain 12V conventional lead-acid batteries and compatible Lithium (LFP) batteries, including: Battery Type...

  • Page 3: Main Features

    • LFP Wake Up - Power Supply: 13.8V 12A Max Power Supply Mode which is time limited for 24 Hours before automatically switching back to LITHIUM (LFP) Charging Mode. 2 • Owner’s manual - Model. CC1212-XLi...
  • Page 4 • ECO MODE: This Century battery charger has a built in ultra-low power consumption circuit. If AC power is connected and the battery is disconnected, after 10 seconds the charger will automatically go into ECO mode. During this mode the power drawn is less than 0.36W which totals 0.01kWh per day power consumption.
  • Page 5 AGM & Gel batteries. For LITHIUM (LFP) batteries, check your battery manufacturers specifications. Visit www.centurybatteries.com.au/battery-charging or www.centurybatteries.co.nz/ battery-charging for further advice on which Battery Type and Charge Rate settings to select. 4 • Owner’s manual - Model. CC1212-XLi...

  • Page 6: Technical Specifications

    13.8V (24 Hour time limited) Start Voltage Operating Temperature -10 to 40°C Storage Temperature -25 to 85°C Operating Humidity 90% RH Max. Size (L*W*H) 220mm x 100mm x 60mm Weight 1.1kg (approx.) Approvals AS/NZS, EMC 5 • Owner’s manual - Model. CC1212-XLi...

  • Page 7: Charging Instructions

    Crocodile clip or ring terminal lead to the BLACK BLACK vehicle’s chassis. DO NOT connect the Black (-) lead to the carburettor or fuel CONNECTION IN VEHICLE POSITIVELY EARTHED lines. CONNECTION IN VEHICLE CONNECTION IN VEHICLE POSITIVELY EARTHED NEGATIVELY EARTHED 6 • Owner’s manual - Model. CC1212-XLi...
  • Page 8 Gently charges the battery using a reduced charge output until the battery voltages reaches 11V. If the battery voltage doesn’t reach 11V within 6 hours, the safety timer protection will stop the unit LITHIUM (LFP) from charging and the Red Fault LED and 25% LED will start flashing. 7 • Owner’s manual - Model. CC1212-XLi...
  • Page 9 3) Bulk Charging Uses the maximum selected charge output until the battery voltage reaches 14V. If the battery voltage doesn’t reach 14V within 24 hours, the safety timer protection will stop the unit from charging. 8 • Owner’s manual - Model. CC1212-XLi...
  • Page 10 12.9V to ensure the battery is always ready when you need it. Century Batteries does not recommend leaving the battery charger connected for more than 24 hours during LITHIUM (LFP) Mode. Disconnect after 24 hour use.
  • Page 11 Flash Flash Over Temperature protection Flash * 13.5V for LITHIUM LFP Note: The LFP Wake Up - Power Supply Green LED will be on when in LFP Wake Up - Power Supply Mode. 10 • Owner’s manual - Model. CC1212-XLi...
  • Page 12 11 • Owner’s manual - Model. CC1212-XLi...

  • Page 13: Online Resources

    - Check the battery condition, is Flashing sulphated age etc. - Battery has a - Battery may need replacement. damaged cell - Move battery & charger to a - Overheat cooler environment. protection mode 12 • Owner’s manual - Model. CC1212-XLi...
  • Page 14 If your battery voltage is below 2V, try the Force Start Mode by pressing and holding the Battery Type button for 3 seconds until the 4 battery LED’s start scrolling. This will force the charger to output for 30 seconds and begin charging. 13 • Owner’s manual - Model. CC1212-XLi...

  • Page 15: Year Product Warranty

    5 YEAR PRODUCT WARRANTY Century Yuasa Batteries Pty Ltd (ABN 66 009 685 232) of 37-65 Cobalt Street, Carole Park, QLD, 4300, Australia and Century Yuasa Batteries (NZ) Ltd (NZBN 9429039377319) of 259 Church Street, Onehunga, Auckland, 1643, New Zealand warrant to the Customer that this product is substantially free from defects in materials and workmanship under normal use for a period of Five Years from the Date of Purchase.
  • Page 16 37-65 Cobalt Street, Carole Park, 259 Church Street, Onehunga, QLD, 4300, Australia Auckland, 1643, New Zealand T: 1300 362 287 T: 0800 93 93 93 www.centurybatteries.com.au www.centurybatteries.co.nz Approval No. GMA-511817-EA CC1212-XLi Owner’s Manual: Rev 1.1 - 08/22 - Specifications subject to change without notice.
