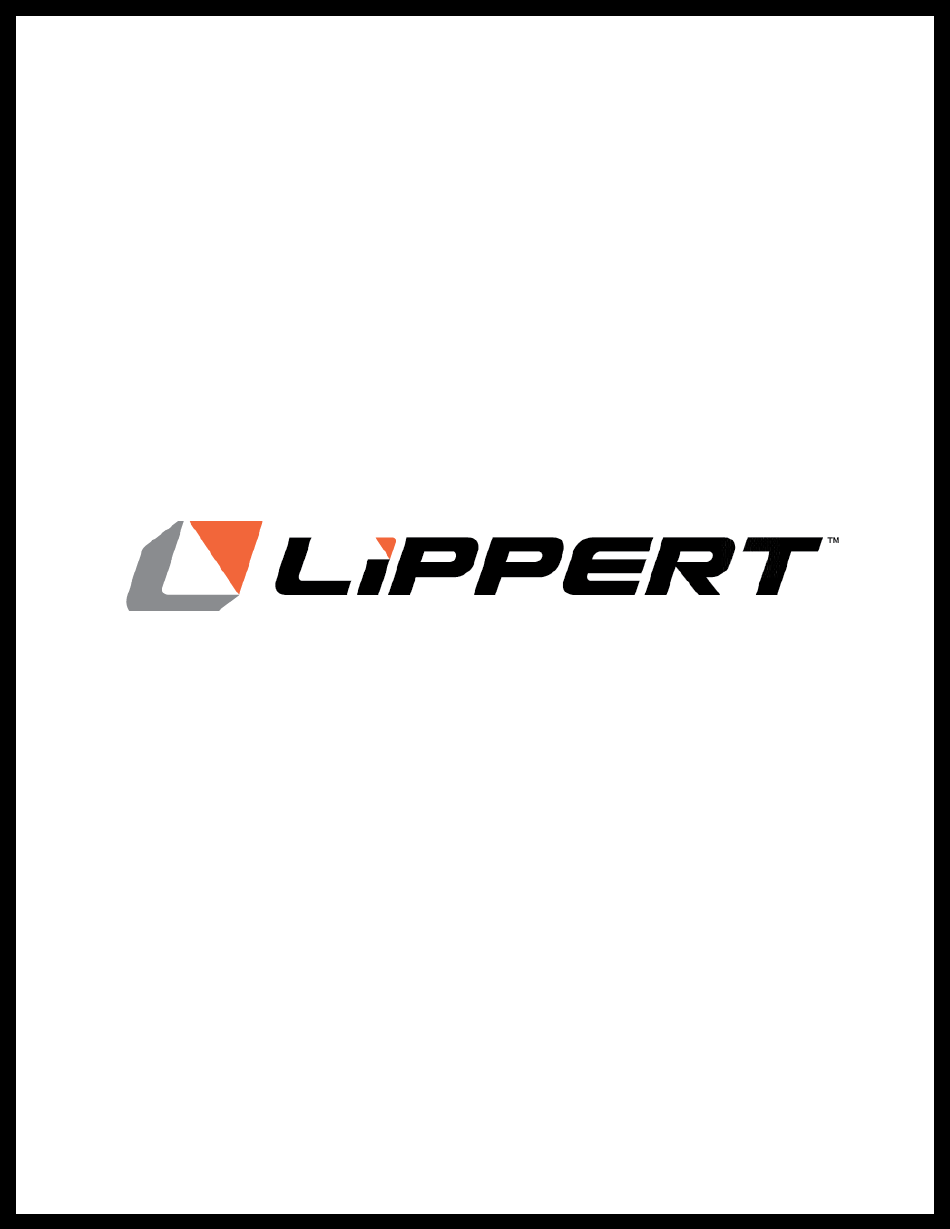

- Page 1 Flow Max™ Faucets OEM INSTALLATION MANUAL...

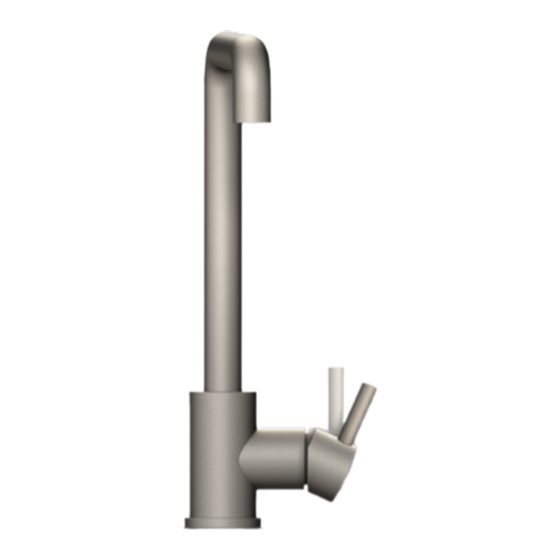

- Page 2 Pull Down Faucet Introduction This manual outlines the installation and operation of the Flow Max Faucets. Note: Images used in this document are for reference only when assembling, installing and/or operating this product. Actual appearance of provided and/or purchased parts and assemblies may differ.
- Page 3 Resources Required • Phillips screwdriver • Adjustable wrenches • Flashlight • Safety glasses Installation With Metal Collar Unscrew the metal collar with the two screws from the faucet base and set aside (Fig. 1A). Remove the metal washer (Fig. 1B) from the base and set aside. Note: Leave black rubber washer (Fig.
- Page 4 Under the sink, slide the metal washer (Fig. 1B) over the supply lines onto the base of the faucet. Make sure the metal washer is flush against the underside of the sink deck and covering the mounting hole (Fig. 3A). Make sure the two screws on the collar are evenly inserted and are flush with the top of the collar(Fig.
- Page 5 With Plastic Collar Unscrew the black plastic collar from the faucet base and slide off from the faucet assembly. Note: Wiggle the plastic collar off the supply lines one line at a time. Slide the clear plastic washer off the faucet assembly. Place the faucet supply lines through the mounting hole on the deck, making sure the black rubber washer and faucet base are seated firmly on the deck of the sink (Fig.
- Page 6 Operation Fixed Faucet Pull the lever away from the faucet to turn it on (Fig. 9A). Move the lever towards you for hot water (Fig. 10) and away from you for cold water (Fig. 11). Fig. 9 Fig. 10 Fig. 11 Note: Located on the front of the lever is a “H”...
- Page 7 Pull Down Faucet Pull the lever away from the faucet to turn it on (Fig. 13A). Move the lever towards you for hot water (Fig. 14) and away from you for cold water (Fig. 15). Note: Located on the front of the lever is a “H” for hot water and a “C” for cold water. Move the lever in the direction of the desired temperature.
- Page 8 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of LCI. ...
