Summary of Contents for Blue Satellite

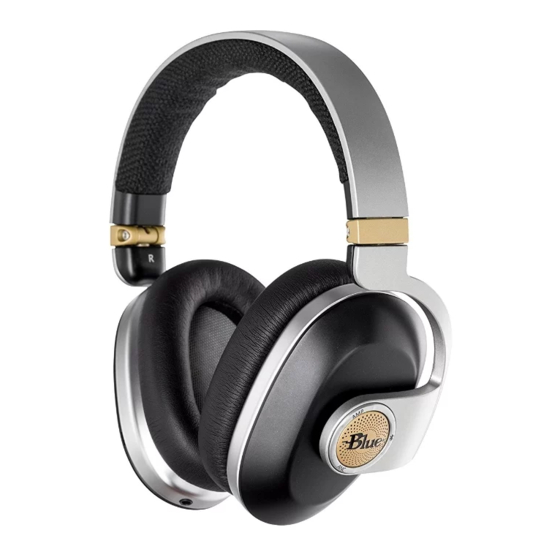

- Page 1 SATELLITE Premium Wireless Noise-Canceling Headphones with Audiophile Amp...
- Page 2 Hands Free Profile (HFP), Headset ® Profile (HSP), Advanced Audio Distribution Profile (A2DP), Audio/Video Remote Control Profile (AVRCP) and Device ID Profile (DIP). Only use Satellite’s wireless mode where Bluetooth use is permitted. Do not make unauthorized alterations to this product. SATELLITE | 2...
-
Page 3: Important Regulatory Information
Charge your device using only the method described by Blue in the user guide. Charge the device at ambient temperatures between 50-100F, 10-40C, (+/- 5). Do not heat above 60C/140F. Do not attempt to replace the rechargeable battery. - Page 5 What if you could combine the quality of a custom hi-fi system with the convenience of a mobile device? It’s finally possible with Satellite—the first wireless headphone that brings true audiophile sound to your daily music life. Satellite’s advanced ANC technology features dedicated noise-canceling drivers so that your music is never compromised.
- Page 6 Satellite of Love • Patent pending 4-driver system featuring 2 custom 44mm Blue dynamic drivers for audio and 2 dedicated 30mm drivers for ANC • Built-in audiophile amplifier for rich, dynamic and detailed sound • Highest quality Bluetooth wireless technology ®...
- Page 7 4.1 protocol and works with ® devices that support the following profiles: • HANDS-FREE PROFILE (HFP) Allows Satellite to interact with your smartphone wirelessly. • HEADSET PROFILE (HSP) Allows Satellite to interact with your smartphone wirelessly. • ADVANCED AUDIO DISTRIBUTION PROFILE (A2DP) Allows Satellite to utilize AptX to complete the audiophile wireless experience.
- Page 8 Power to the People Our heritage is born out of musicians and engineers craving that pure sonic bliss that only analog components can provide—Satellite is no exception. Enjoy detail in your music you never knew existed thanks to our all-analog audiophile amplifier.
- Page 9 Start Me Up PACKAGE INCLUDES • Satellite • Travel case with cable storage pocket • 3-meter audio cable • USB charging cable • Quick start guide • Safety & regulatory guide...
- Page 10 Left Earcup Amp button Bluetooth button ® Left logo LED ANC button Power button USB port SATELLITE | 10...
- Page 11 5 seconds. The left logo then off after 5 seconds. The logo flashes 5 times rapidly flashes 5 times rapidly when logo flashes 5 times rapidly when turning off ANC. turning of the Amplifier. when turning off. SATELLITE | 11...
- Page 12 Connect included USB cable to charge Press and hold for 1 second to turn Satellite Satellite. For more about the battery and On or Off. charging, see Charging Satellite, page 15. SATELLITE | 12...
- Page 13 Right Earcup Volume up Play/Pause button Right logo LED Volume down Voice mic Audio cable port SATELLITE | 13...
- Page 14 (2x) for next track, and listening. This will also disable quickly triple-press (3x) for Bluetooth ® previous track Press to answer call, long press (3 seconds) to end or reject call SATELLITE | 14...
- Page 15 Plug the large end of the cable into a USB wall charger or a computer that is powered on. While Satellite is charging, the power-button LED pulses slowly. The LED turns solid white when the battery is fully charged.
-
Page 16: Pairing With A Bluetooth
You will hear a series of tones upon successful pairing, and the left logo LED turns solid then subsequently turns off after 5 seconds. In the case that no device pairs with Satellite, Satellite remains in pairing mode for 5 minutes after which Bluetooth turns off. -
Page 17: Wireless Range
Using Satellite with the Audio Cable Even when Satellite is powered off or out of battery, you can still listen to music by using the included 3.5mm audio cable. Adjusting the Headband & Earcups Satellite was designed with comfort in mind. To get the greatest sound and comfort possible, note the following: •... - Page 18 Make sure the audio cable is not connected • Make sure your device has Bluetooth turned on ® • Turn off and then turn on Satellite. Repeat the procedures on page 16. • Decrease the distance between Satellite and your Bluetooth device ® •...
- Page 19 • Try a different audio player on your device • If you are listening to your device and you also want to use Satellite’s amp and ANC features, make sure Satellite is fully charged and turned on • Connect Satellite to a different audio device SATELLITE’S BATTERY WON’T CHARGE...
- Page 20 And it pairs beautifully with Blue’s proprietary 44mm drivers to deliver every detail of your music with clarity and punch. Blue are the only headphones in the world that have a built-in audiophile amp—consider it a gift to you and your music.
- Page 21 ® • BLUETOOTH RANGE: Up to 10 meters ® AMPLIFIER • TYPE: Custom, built-in audiophile amplifier • OUTPUT POWER (NOMINAL): 280mW @ 32 Ohms • THD+N, TOTAL HARMONIC DISTORTION + NOISE: 0.0055% (at 1kHz) • GAIN: 4db SATELLITE | 21...
- Page 22 Cleaning , Maintenance & Storage The high-quality durable materials of Satellite make cleaning unnecessary. However, make sure to wipe the earpads with a soft, dry cloth to make sure Satellite stays in orbit. Please remember that liquids and electronics don’t play well together.
-
Page 23: Warranty
Blue Microphones warrants its hardware product against defects in materials and workmanship for a period of TWO (2) YEARS from the date of original retail purchase, made from an authorized Blue Microphones Dealer. This warranty is void if equipment is altered, misused, suffers excessive wear, or is serviced by any parties not authorized by Blue Microphones.
