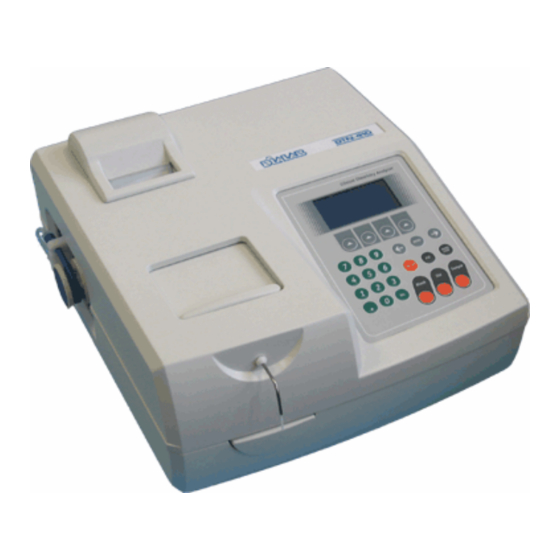

- Page 1 PHOTOMETER DTN-410 K USER MANUAL I 1 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
- Page 2 I 2 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
-
Page 3: Table Of Contents
4.3 Method preparation (1 set method) ............26 4.4 Measuring (2 Run Method) ..............32 4.4.1 Methods with Standard ..............33 4.4.2 Methods with factor ................35 4.4.3 Methods with color blank (color/blk)..........35 4.4.4 Kinetic measurements ..............36 4.4.5 Recalibration..................37 4.4.6 Controls ....................38 I 3 I DIALAB PHOTOMETER DTN-410K USER MANUAL... - Page 4 5.4.1 Adding patients .................54 5.4.2 Edit/erase patients ................55 5.4.3 Erase done patients ................55 5.4.4 Send patients to PC ................55 5.5 Running in batch mode ................55 5.5.1 Start a Run ..................55 5.5.2 STAT procedure ................57 I 4 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
- Page 5 6.5 Pump tubing replacement ...............69 6.6 Identifying accessories and consumable goods........69 7- Troubleshooting...................70 7.1 Non operating display................70 7.2 Message: Standard Abs Low ..............70 7.3 Inconsistent readings................70 7.4.1 Constantly low values..............71 7.4.2 Constantly high values..............71 I 5 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
- Page 6 I 6 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
-
Page 7: Warnings
Acceptable levels of variation are criteria determined by user or control manufacturer. 11) Handling of drain hose waste must be done according your local / national regulations on pathological residues. I 7 I DIALAB PHOTOMETER DTN-410K USER MANUAL... - Page 8 Biological Risk Warning: Before using read instructions in Manual Hazardous Voltage Ground connection Representative for CE: CGA Strumenti Scientifici Via Luca Giordano 7b 50132 Florence – FI Phone +39055571476 Fax +390555000889 E-Mail – I 8 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
-
Page 9: 1- Introduction
1- Introduction 1.1 General The DIALAB DTN-410K is a semi-automated clinical chemistry analyzer, capable of storing 200 patients and up to 132 methods in memory, adequate for all routine tasks in Clinical and Analytical Chemistry. A flow-through micro-cell with programmable aspiration volumes enables sample load and sample recovery when required. -
Page 10: Technical Specifications
Cuvette system: Two –way cuvette system 1. Metallic microflow cell: 18 ml – 10 mm light path with temperature control by Peltier system. Temperature: variable, pre-adjusted 25ºC, 30ºC and 37ºC. Stability ± 0.1ºC. I 10 I DIALAB PHOTOMETER DTN-410K USER MANUAL... - Page 11 Interface: RS232 C Power requirements: 100 –240 VAC: 50/60 Hz: 150 VA Fuse: 3A type F Environmental requirements: Operative: 0 – 40º C, maximum relative humidity: 90% Non-operative: -10 – 50º C. I 11 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
-
Page 12: Front View
Dimensions: 32 cm. x 38 cm. x 17 cm. Weight: 6 kg. 1.3 Front view Graphic 1-1 shows the essential elements that compose the Analyzer. 1.4 Rear view I 12 I DIALAB PHOTOMETER DTN-410K USER MANUAL... -
Page 13: Keyboards
When pressing a non-operative key, a low pitch sound is emitted indicating the operational error. The functions of the keys in the operational program are as follows: I 13 I DIALAB PHOTOMETER DTN-410K USER MANUAL... - Page 14 I 14 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
-
Page 15: 2- Installation
2) Do not install the equipment near to heaters, muffles, ovens, etc. Avoid places subject to drastic changes in temperature. 3) Do not use tables subject to intense vibrations. Vibrations caused by unbalanced centrifuges may affect the optic system. I 15 I DIALAB PHOTOMETER DTN-410K USER MANUAL... -
Page 16: Start Up
4-Turn the instrument ON by using the switch on rear panel (see graphic 1.2). The display will read: the instrument identification. 5-Press any key, and the following message will appear: SYSTEM SET UP PLEASE WAIT I 16 I DIALAB PHOTOMETER DTN-410K USER MANUAL... -
Page 17: Pump Volume Calibration
, instrument will request to write the measured volume (in uL) and internal adjust of peristaltic turn-to-volume ratio will be calculated. Volume calibration is recommended once a month or when new peristaltic pump tubing is installed. I 17 I DIALAB PHOTOMETER DTN-410K USER MANUAL... -
Page 18: Flowcell Verification Procedure
Measurement parameters can be modified according to the user’s needs. IMAGEN RETOCADA: VOLUME=700 Press Next on built-in keyboard and the following message shall appear: IMAGEN RETOCADA: VOLUME=700 Slide cell-compartment-cover open and select flow cell. I 18 I DIALAB PHOTOMETER DTN-410K USER MANUAL... - Page 19 #2 several times (3 at least). Finally, aspirate water and verify stability of reading. Pump Actuator In Wash method: runs the pump In Run method: aspirates blank, standard and sample I 19 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
- Page 20 I 20 I DIALAB PHOTOMETER DTN-410K USER MANUAL...
