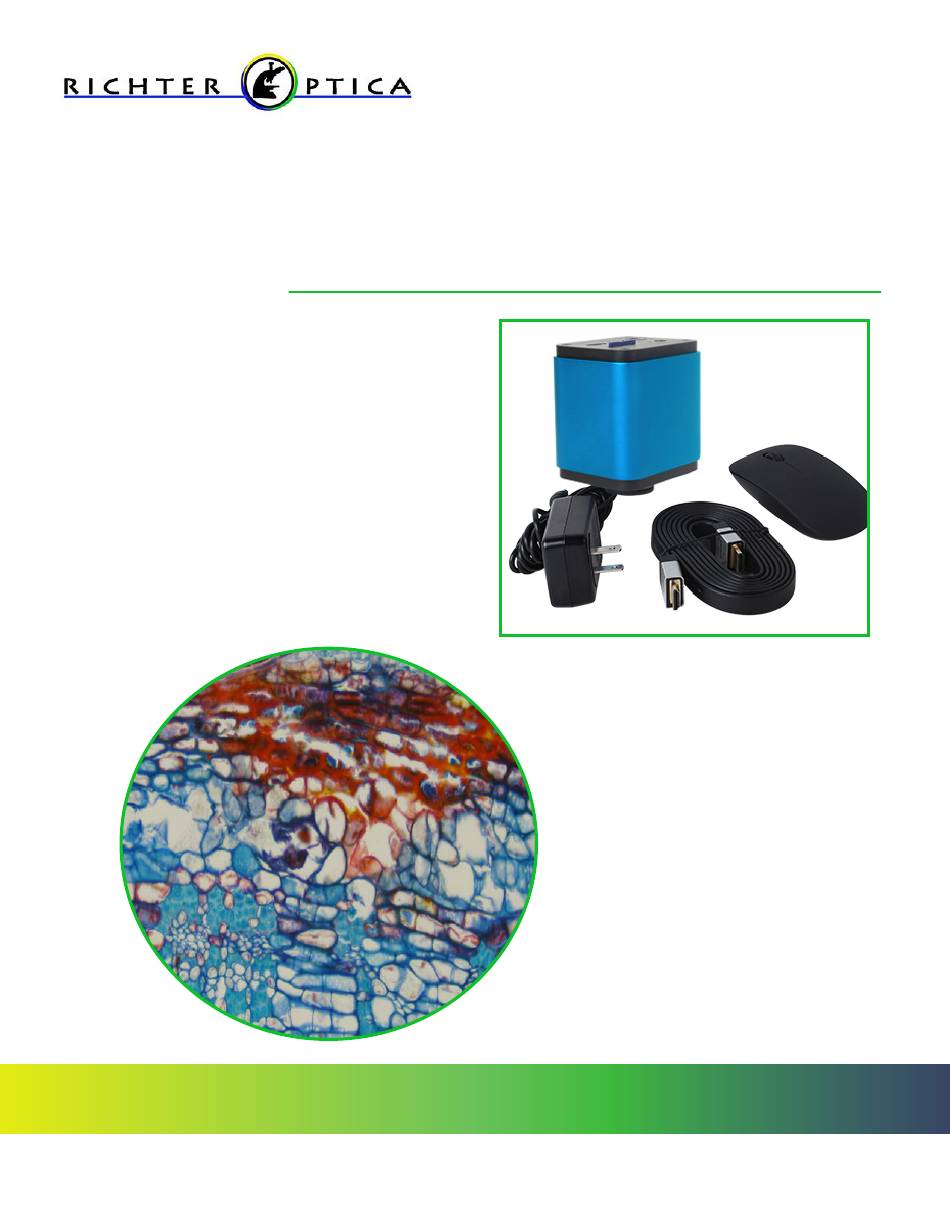

- Page 1 HDCAM3B High Definition Microscope Camera Manual...
-
Page 2: Getting Started
Getting Started Attach the HDCAM3B to the C-Mount on the Microscope. Plug one end of the HDMI cable into the HDMI slot on the camera and the other end into the HDMI slot on the HD Monitor. (If your HDCAM3B includes the 13” HD Monitor, please refer to pages 2,3,4, and 5.) - Page 3 13” HD Monitor Set up Attach the HDCAM3B to the C-Mount on the Microscope. Locate the 2 holes on the camera and the 2 holes on the monitor mount • Line up the camera as shown below. • Fasten the screws to the mount so the camera is secure as shown below.
- Page 4 13” HD Monitor Set up Insert the main power adapter into the remaining connection of the power adapter splitter. Attach one end of the power adapter splitter to the DC12V power adapter input on the camera Attach the other end to the DC12V power adapter input on the HD monitor.
- Page 5 13” HD Monitor Set up Insert one end of the HDMI cable into the HDMI slot on the camera, and the other end into the monitor as shown below. Camera and 13” HD Monitor assembled.
- Page 6 13” HD Monitor Setup The following items are found beneath the 13” monitor in the box. Allen key and screws to mount camera to monitor. HDMI cable to connect monitor to camera. Power Adapter Splitter Power Adapter...
-
Page 7: Camera Control Panel
Camera Control Panel Once the camera is properly set up to the monitor and microscope, a live image of your specimen will appear on the monitor. • The camera control panel will appear on the right hand side of the monitor. •... - Page 8 Working with the Tool Bar • Hover the mouse cursor in the lower center portion of the monitor. • A tool bar will appear with additional options. Capture Image- Select this button to capture an image that will save directly to the SD card. Zoom In- Select this button to zoom in on the image.
- Page 9 Working with the Tool Bar Freeze / Resume- Select this button to freeze or resume. Grids- Select this button to create a grip overlay on your live image. • A grid box will appear with options to select the number of rows and columns.
- Page 10 Quick Trouble Shooting Guide Problem Solution Beam splitter is not in the proper setting. Check No live image displayed the beam splitter setting. Adjust the illumination on the microscope Live image is dark Use the white balance option on the control panel.
