Summary of Contents for Leitner HYDRO POD CARRY

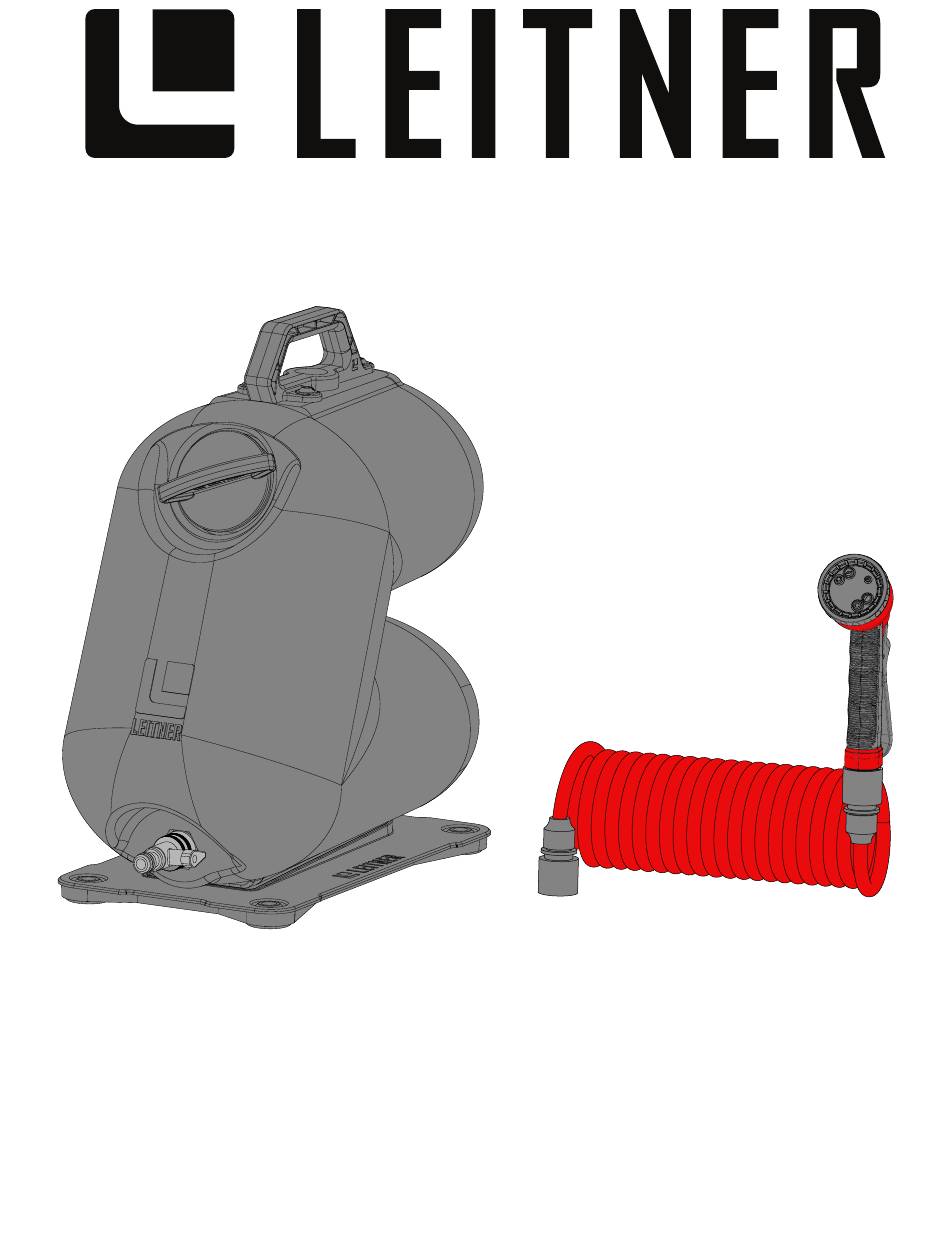

- Page 1 LEITNERDESIGNS.COM | support@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 1...
- Page 2 00-HPC-1488 TOOLS REQUIRED INSTALLATION TIME 10-15 minutes Basic knowledge of hand tools required • 5mm allen wrench SKILL LEVEL 1= easy ▼ hydro pod carry hardware ▼ m8 x 14 (x6) LEITNERDESIGNS.COM | support@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 2...
- Page 3 ▼ READ BEFORE assembling hydro pod carry ▼ 1. Don’t over-tighten bolts. 2. Take your time to do it right, ▼ ASSEMBLY OVERVIEW ▼ carry handle hydro pod base V1 | Page 3...
- Page 4 attach handle and base INSTALL m8 BOLTS • Place BASE ON BOTTOM OF HYDRO POD AND SECURE WITH THREE M8 X 14 SCREWS. • PLACE HANDLE On TOP OF HYDRO POD AND SECURE WITH REMAINING THREE M8 X 14 SCREWS. •...
- Page 5 fill hydro pod remove pump • turn pump handle counter clockwise 5-6 turns to unscrew pump . this will take some force. • remove pump and use hose to fill hydro pod till it overflows through fill port. • re-install pump and tighten. V1 | Page 5...
- Page 6 pressurize hydro pod 40-60 pumps • un-lock pump by turning 1/4 turn counter clockwise. • pull on handle and pressurize hydro pod with 40-60 pumps to build proper pressure. don’t worry you can’t over pressurize the system so feel free to pump until the pressure is to your liking. •...
- Page 7 •All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period.
- Page 8 Warranty Leitner Designs warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
