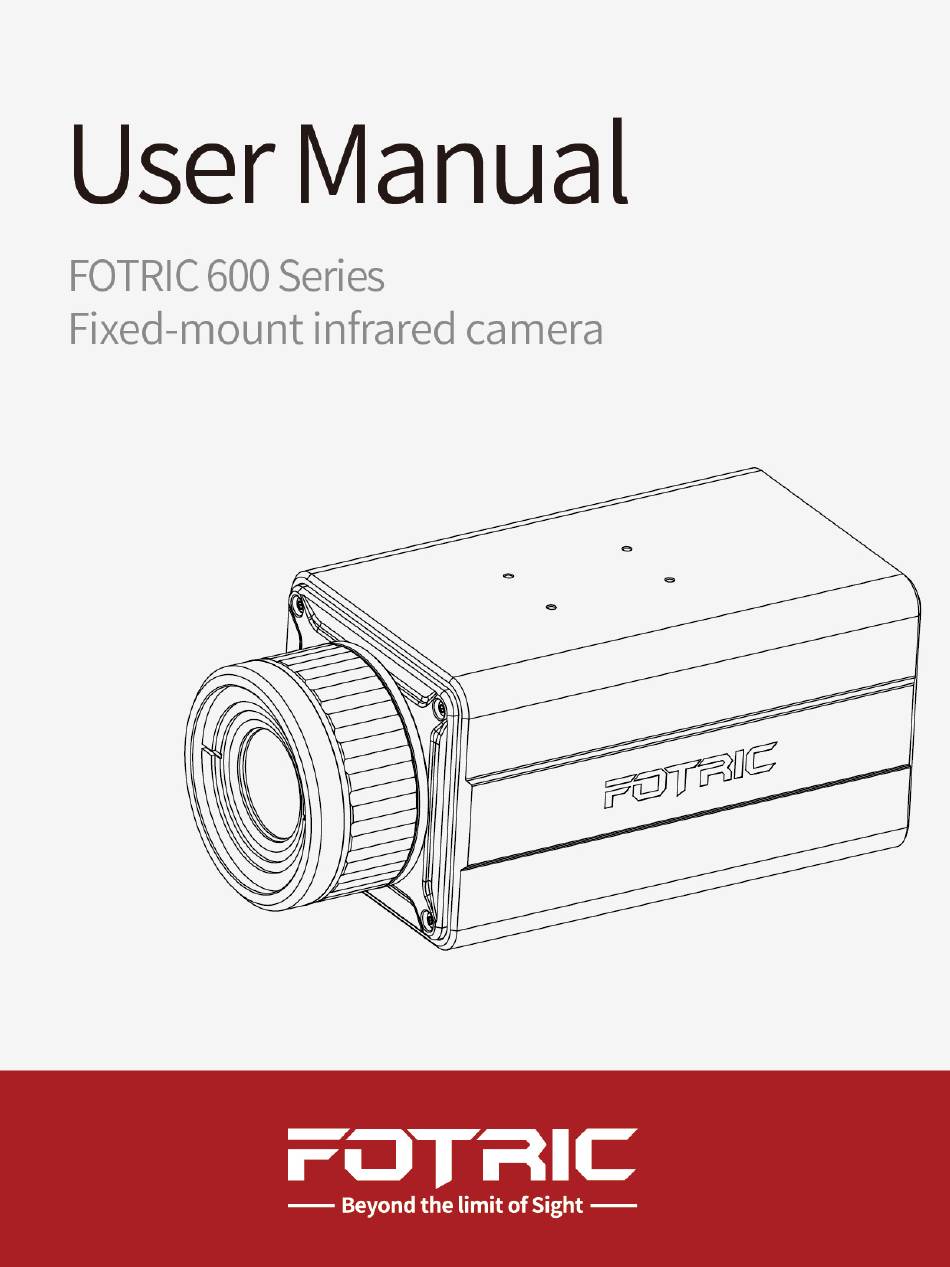

Fotric 600 Series User Manual

Fixed-mount infrared camera

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the 600 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Fotric 600 Series

Page 2: Table Of Contents
Contents Legal Disclaimer � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1.1 Legal Disclaimer ....... . 1 1.2 Usage Statistics .
Page 3: Legal Disclaimer
FOTRIC sells to the original purchaser are covered by the specific supplier's warranty terms (if any) and FOTRIC is not liable for those products. This warranty is provided to the original purchaser and is not transferable. This warranty does not apply to any product that has been damaged by misuse, neglect, accident, or abnormal operating conditions.
Page 4: Usage Statistics
FOTRIC within 3 Months from above mentioned report date. FOTRIC has no obligation or liability for any defects other than those mentioned above. This product is exempt from any other warranties, expressed or implied. FOTRIC hereby disclaims any implied warranties of merchantability and applicability for a particular purpose.
Page 5: Copyright
1�4 Quality Assurance The quality management system for the development and production of these products in FOTRIC has been certified in accordance with the ISO 9001 standard. FOTRIC is committed to a policy of continuous development, so we reserve the right to modify or improve...
Page 6: Export Control
any product without prior notice. 1�5 Export Control Thermal imaging products are listed as export-controlled products by the U.S. Department of Commerce, United Nations Security Council (UNSC), and European Union (EU). This product contains a focal plane array and cannot be used in controlled countries (such as North Korea, Iran, Syria, Cuba, Sudan, etc.), so please do not bring this product into or used in controlled countries.
Page 7: Safety Information
Safety Information This product complies with the restrictions for Class A digital equipment in Chapter 15 of the FCC Rules. These restrictions are designed to provide reasonable protection against harmful interference in a residential installation. If not installed and used in accordance with instructions, this equipment may cause personnel injure or property loss.
Page 8 Source according to IEC60950-1. • If the product does not work properly, please contact your local distributor or FOTRIC service center immediately. Fotric shall not bear the responsibility for any damage which caused by improper use, improper maintenance, unauthorized repair or disassembly of equipment.
Page 9 Caution! • Please check the power supply carefully before connect to the thermal camera. • Please protect the product from drop to ground or strong shock. • Please do not touch directly on the lens. If necessary, Use a soft cloth and pure water/Non-irritant cleaning liquid to clean gently.
Page 10 • Please ensure enough installation space to maintain ventilation around the thermal imager. • Original packing box is highly recommended to be kept during transportation. Please avoid strong impact on the packing during transportation.
Page 11: Thermal Camera
Thermal Camera Overview...
Page 12: Manual Focus Model Schematics
Manual Focus Model Schematics (unit: mm) 4-M2...
Page 14: Auto Focus Model Schematics
Auto Focus Model Schematics (unit: mm)
Page 16 Auto Focus Model Schematics High temperature expansion FOTRIC 626CH (unit: mm)
Page 18 Auto Focus Model Schematics High temperature expansion FOTRIC 628CH (unit: mm)
Page 20: Rear Interface Schematic
Rear Interface Schematic...
Page 21 ﹢ Power ﹣ DC12/24VDC supply Ground Rs485 Protocol Pelco-D RS485 Baud rate 9600 Address code Parity bit Relay Electric relay 3.3-24V，1.5A Optocoupler output，3.3-24V, —— Output current 50mA Optocoupler input，3.3-24V, —— Input current, 5mA~15mA —— Ground line Power —— Power indicator Reset to factory IP address reset to Reset...
Page 22: Mounting Holes
Mounting Holes (unit: mm)
Page 23: Ip Address Setting
IP Address Setting Please follow the procedures below： Please connect the thermal camera to 12V / 24V DC power supply. 1. Connect the camera's RJ45 Network Port with Net cable to the server/computer. 2. Set the Server's IP address to the same network segment.
Page 24 Install IPConfig software. 4. Open IPConfig software and click “Reload”. Select the target camera, and click “ Auto Acquire”. 5. Open a FOTRIC SDK based software (or alternatively the FOTRIC AnalyzIR), input the IP address, and connect to the thermal camera.
Page 25 FAQs Why is the IP address not found, after the thermal camera is powered on and connected? Firstly, please make sure that the Power green indicator and the Network port flash indicators are on. The thermal camera may need about 1 to 2 minutes to initialize settings. Secondly, please make sure that the Server/Computer's IP address are in the same network segment and do not conflict with thermal camera.
Page 26 • Emissivity settings • Focus range choice • The camera is not yet warmed up (10~15 minutes) • Temperature measurement range choice • NUC mode settings (we recommend auto NUC calibration) • Other parameters setting, such as IR window transmission, environment temperature, distance, etc. Why does the software not display any video stream or image? Check if the server/computer's firewall is turned off.
Page 27 Please visit FOTRIC website www�fotric�com/support- analyzir to download. If the solutions above are still not working, please consult your local distributor, or contact Fotric directly. Due to any possible product design upgrade or new product types, Please always refer to the specific product.
Page 28 Read Before Using: Manuals download: Before using the product, please visit the following website to download the manuals: FOTRIC 600 Series： https://www�fotric�com/support-fotric600 Software Download PC software AnalyzIR is the standard software for the product. Please visit the following website to download it and its user manual: http://www�fotric�com/support-analyzir...
Page 29 Appendix Emissivity Table （For reference only） Material Temperature Emissivity wSurface Condition Name (℃） (ε） Non-oxidized 0.20 Aluminum Oxidized 0.55 Polished brown 0.40 Brass Unpolished 0.22 Oxidized 0.61 Copper Severely oxidized 0.78 Oxidized 0.74 Iron Rusty 0.65 Oxidized 0.64 Cast iron Non-oxidized 0.21...
Page 30 Roughened 0.94 Wrought iron Polished 0.28 Nickel Oxidized 0.37 Stainless Oxidized 0.85 steel Steel Oxidized at 800℃ 0.79 Common Surface 0.93 brick Concrete Surface 0.92 Glass Polished plate 0.94 White 0.92 Lacquer Natural color black 0.97 Smoke black 0.95 Candle soot 0.95 Carbon Graphite rough...
Page 31 Wood Polished 0.90 Water Distilled water 0.96 Skin Human 0.98 Fine 0.90 Pottery Abrasive 0.93...
Page 32 Equipment described herein may require EU, US and UNSC authorization for export purposes. Imagery for illustration purposes only. Specifications are subject to change without notice. FOTRIC INC. © 2022 All Rights reserved. CHINA U�S� Lane 2500-14, Xiupu Road, Pudong Dis trict, Shanghai , P.
