Serveredge TRCER-CAB Instruction Manual

Connect another port of the cable testing with the RJ45 jack on
the receiver (or connect them with cable adapter). The status of
good and NG of the cable circuit can be judged by the 4 indicator
lights on the emitter or on the receiver of the cable status (as
illustrated in the table 1, 2, 3, 4, 5, 6, 7, 8.).

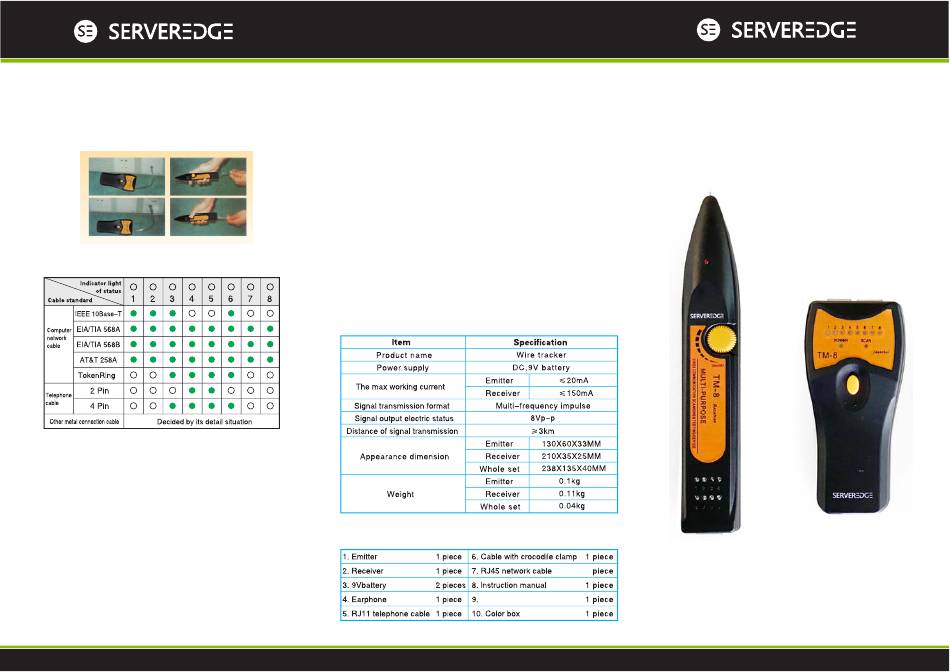

Comparison table between the cable standard and the
indictator light status.
CIRCUITRY STATUS TESTING
The circuitry status testing functions of CABLE CHECKER can
determine the basic natures of circuit testing. The testing task can
be complete only via the emitter, rather than the receiver. Please
insert one port of the crocodile clip adapter cable into the RJ11
socket of the emitter then let the testing circuit help tightly by the
red-black cable clip located at the other end of the adapter.
LOW VOLTAGE ALARM TESTING
Push the DIP switch on the emitter to SCAN position, in the case
the battery level is lower than 6.0V, the STATUS and VERIFY
indicators will light up at the same time, this indicates battery
replacement is required.
E: info@serveredge.com.au
CAUTION
• Do not allow exposure to direct sunlight.
• Do not allow exposure to dusty environments.
• Keep away from high humidity and temperatures over 40 degree C.
• Ensure correct batter as specified, otherwise damage may occur.
• Dismantling of the device will void the warranty.
• It is recommended to remove the batteries when the device is not in
use for extended periods.
• NOT to be used on high voltage circuits (such as 120V - 220V
Supply cabling), otherwise damage will occur and could be a risk of
electrocution.
• NOT to be used during an electrical storm.
PRODUCT SPECIFICATION
PACKAGE INCLUDES
Zip-up pouch
P: 1300 335 797
MULTI-PURPOSE LINES COMMUNICATION
SCANNING & TESTING DEVICE
INSTRUCTION MANUAL
1
CABLE TRACER & NETWORK
CABLE TESTER
TRCER-CAB
W: www.serveredge.com
