Extreme Canopy FLARE SHADE CANTILEVER UMBRELLA Setup Instructions

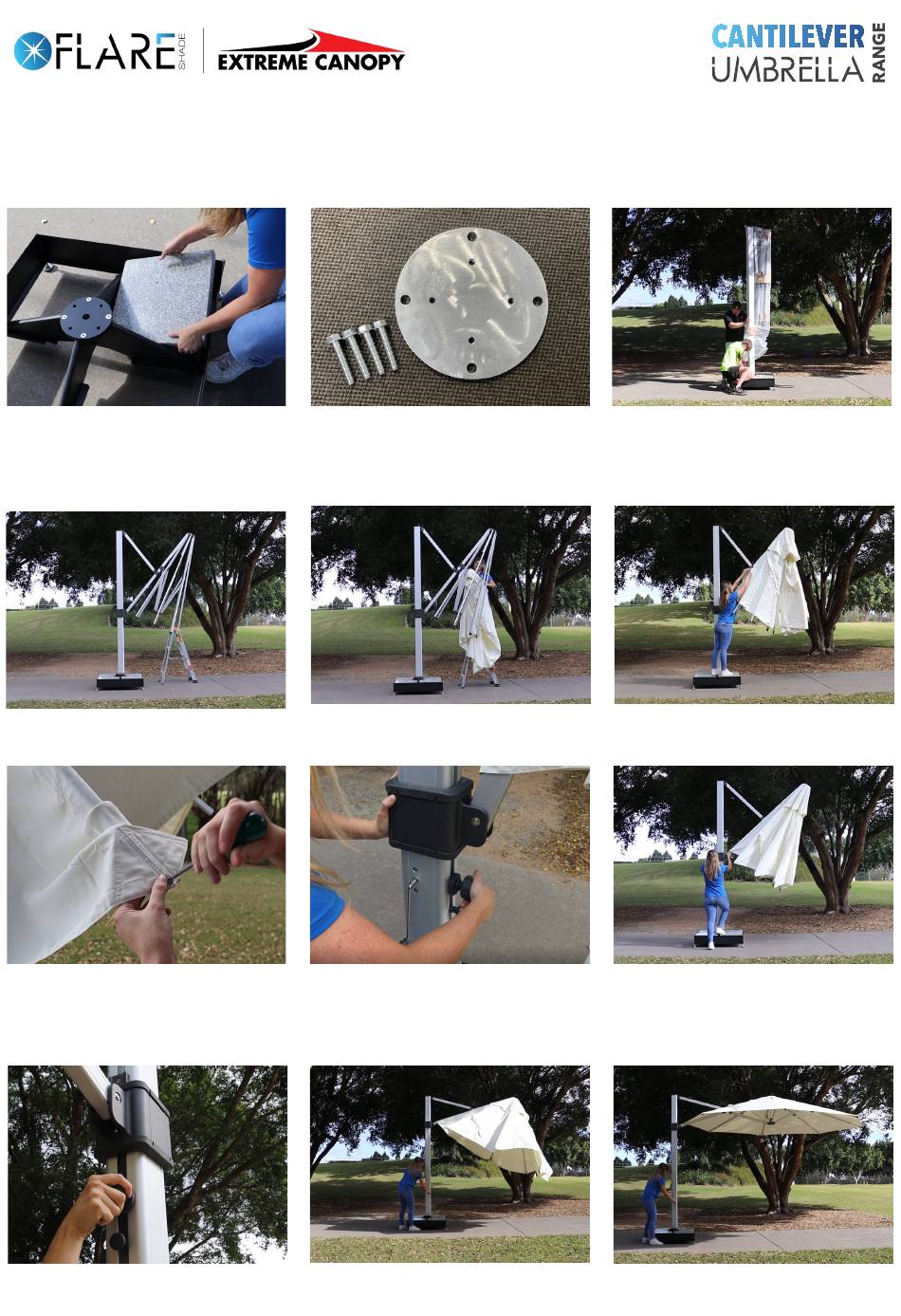

SET-UP INSTRUCTIONS
Please read instructions completely before setting up your umbrella. Make sure you
have all the components identified on the parts list. Recommended procedure below.
For safety reasons it is recommended that 2 people set-up / pack down any umbrella.
OPTIONAL WEIGHT PLATE
1. Add the 16 marble weight plates
to the steel Cantilever base before
setting up Cantilever Umbrella.
3. Using a step ladder place roof
fabric over the Cantilever frame.
6. Attach canopy to main frame
with qty 1 bolt & washer. Attach the
fabric to the ribs with qty 7 screws &
washers.
9. Fasten srew until tight.
OPTIONAL STEEL BASE PLATE
OR Secure steel base plate to
concrete slab using dyno bolts.
Ensure concrete slab or timber deck meets
requirements and surface is safe to mount to.
4. Ensure the center of the fabric is
aligned with the center of the frame.
7. Unfasten the screw until loose.
7. Using the crank wind the
umbrella open.
CANTILEVER INSTRUCTIONS
11' x 11' | 13' x 13' | 13' dia.
2. Secure the frame to cantilever
base with bolts and Allen key.
5. Secure Velcro around the frame
awning pole.
8. Slide the main connector up the
frame until pin locks into place.
8. When crank becomes tight stop.
