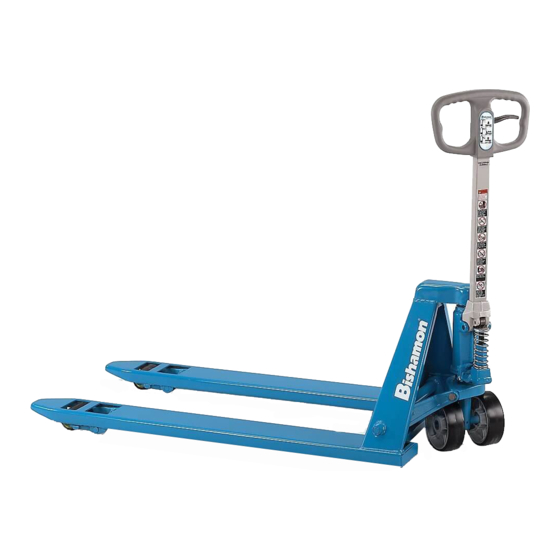

Hand pallet truck

Advertisement

Quick Links

GETTING STARTED
Thank you for purchasing the Bishamon Hand Pallet Truck. Please read this manual carefully and make
sure you understand its contents before using the product. Be sure to keep this manual in a safe place. If
it is lost, contact your dealer immediately. Also contact your dealer should any of the warning labels on the
product come off.

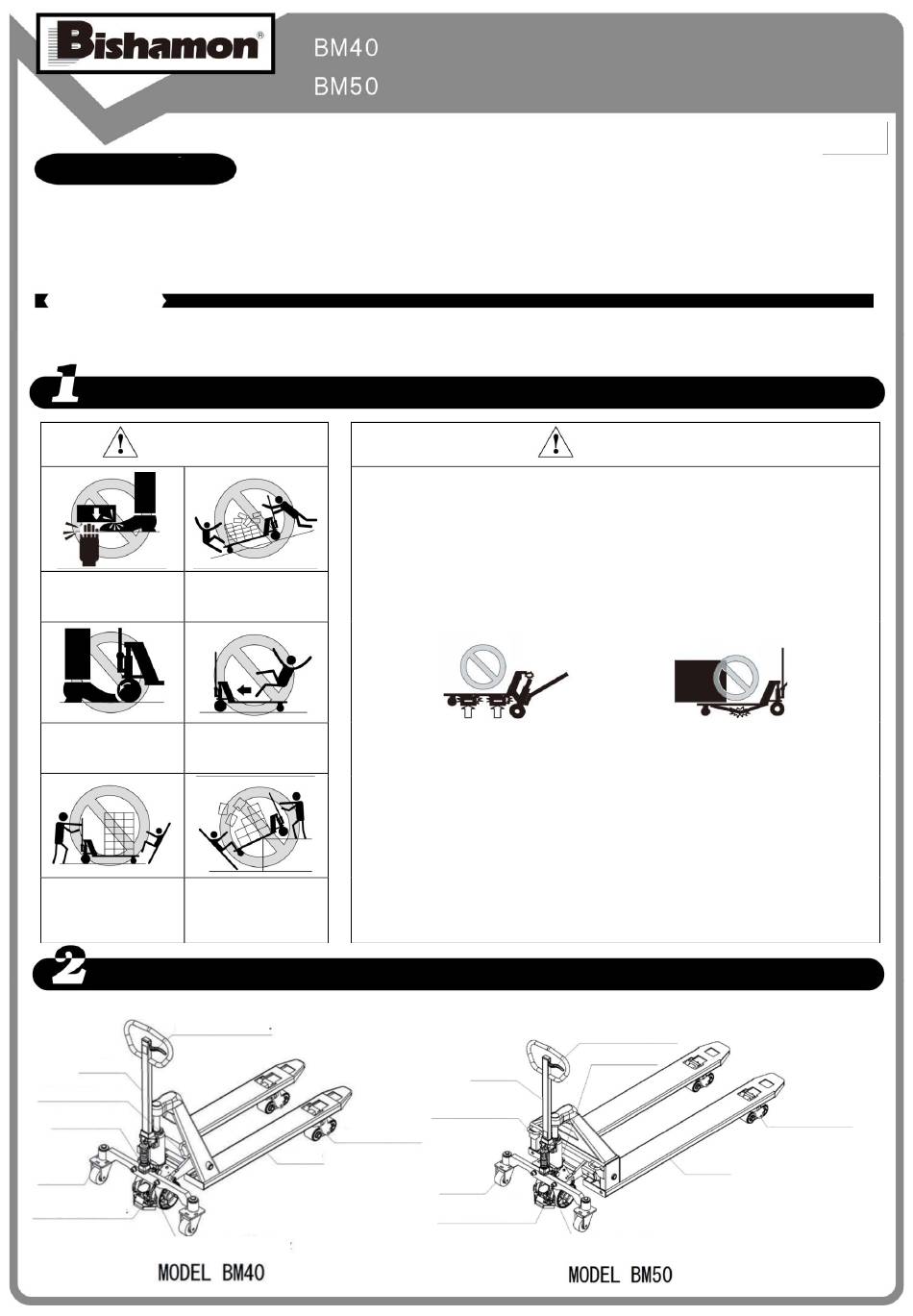

Safety Definitions
In this manual, Bishamon uses "Warning" to identify unsafe practices that can result in severe injury, and
"Caution" to identify unsafe practices that can result in minor or moderate injury and property damage.
Warnings and Cautions
Warning
Do not place arms or
Do not use on slopes.
legs beneath loads or
lifts.
Keep feet clear of
Do not ride on the
rolling wheels when in
truck. The unit may
motion.
overturn.
Make sure no
Be careful when
personnel are in the
moving the unit on
area when unit is in
multi-level surfaces.
use.
Names of Components
Control Lever
Handle
Hook for lifting
Hydraulic Unit
Support
Wheel
Parking Brake
With Foot Guard
Steering Wheel
Hand Pallet Truck
Operation and Service Manual
1. Read this manual completely before using and make sure you understand all
instructions.
2. Do not exceed the maximum capacity.
3. Do not lower the forks rapidly. Do not stop suddenly. Sudden movements result in
unbalanced loads that can result in property or unit damage.
4. Do not load the unit on only one side of the fork or on the edges.
5. Do not modify the truck.
6. Be sure to inspect the unit according to the instructions in this manual.
7. As the unit is not water-resistant, use in a dry location.
8. Do not use on uneven surfaces when the unit is loaded.
9. Use in an environment with a temperature between 0℃ and 40℃.
10. Do not cause strong impacts with the
fork, etc. The unit or its components
may be damaged.
※ If the above instructions are not followed, this may result in bending of the torsion
tube or push rod, rusting, or damage to the unit or its components due to deterioration
of the packing, so please exercise caution. (Damage resulting from improper use is
not covered by the warranty)
Hook for lifting
Φ80 Bogie Wheel
Fork
Support
Wheel
Parking Brake
With Foot Guard
Caution
11. Do not lift objects using only the
Control Lever
Hydraulic Unit
Handle
Steering Wheel
Rev.1 20.09
edges or one side of the fork. The
unit or its components may be
damaged.
Φ80 Bogie Wheel
Fork

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BM40M and is the answer not in the manual?

Questions and answers

Summary of Contents for Bishamon BM40M

  • Page 1 Safety Definitions In this manual, Bishamon uses “Warning” to identify unsafe practices that can result in severe injury, and “Caution” to identify unsafe practices that can result in minor or moderate injury and property damage. Warnings and Cautions...
  • Page 2: Pre-Operation Inspection

    Pre-operation Inspection Inspections are essential for operating the unit safely and discovering problems early. Inspect the following items before operating the unit. Caution If a suspected defect is discovered, do not operate the lift until it has been safely addressed. Continuing to operate the lift may result in damage or accidents.
  • Page 3: Parking Brake

    4. Parking Brake The parking brake is used to park the hand pallet truck on a flat surface. And Foot Guard protect foot from wheels during moving for safe working condition. Warning Do not use the parking brake to park the hand pallet truck on slopes or to slow it down or stop it while it is in motion.
  • Page 4: Adjusting The Parking Brake

    How to Make Adjustments 1. Adjusting the Parking Brake Repeated use may result in poor brake function due to the wear of the wheels. If this occurs, follow the steps below to make adjustments. When replacing wheels, adjustment may be required also. ●...
  • Page 5 2. Adjusting the Lowering Speed You can adjust the lowering speed by using the lowering adjustment dial. Follow the procedure below to adjust the lowering speed. ① Remove all loads from the hand pallet truck. ② Lower the hand pallet truck to its lowest position. ③...
  • Page 6: Troubleshooting

    Unit Specifications and Dimensions Maximum Dead load Capacity Model Outer Width Length Lowest Highest Inner Width Approx. Length mm Length mm Length mm Position mm Position mm BM40M 4000 1070 82.5 202.5 MB40LL 4000 1220 82.5 202.5 1139 BM40L5 4000 1600 82.5 202.5...
  • Page 7: Maintenance

    Maintenance 1. Supplying Oil to Bearing Section In general, the shafts use oilless bushing, so lubrication is not necessary, but it is necessary to periodically add grease to the grease fittings to maintain smooth operation of the hand pallet truck. If using in an environment with high levels of moisture or dust, the bushing may deteriorate more quickly than usual, so be sure to lubricate the shafts to prevent rusting and foreign material from entering.
  • Page 8: After Sales Service

    Disposal When disposing of this product, dispose of the metal, non-metal, plastic, and hydraulic oil components separately. There are regulations for disposing of the hydraulic oil, so be sure to abide by them. If you have any questions regarding disposal, please confirm with the dealer before proceeding. Product Guarantee Conditions Warranty Should the unit malfunction within the warranty period (within one (1) year of purchase) when it has been...
