MOBILE-ALERTS MA11022 Quick Setup Manual

Quick set up manual transmitter data to the server and to the
application.

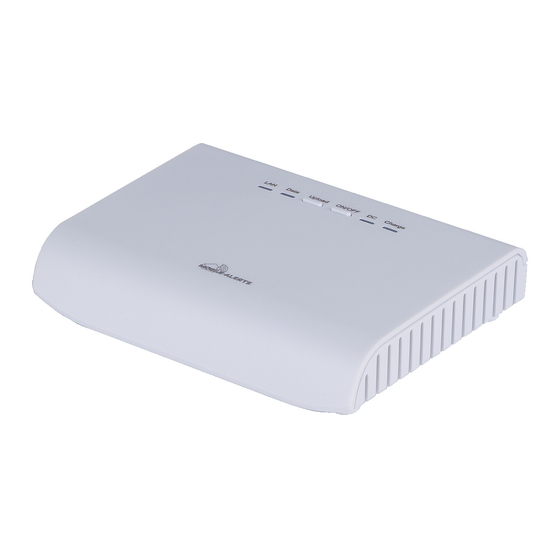

MA11022 Gateway with backup
Sensor
feature
(sensors not included)
Open the battery compartment of the sensor and
put in requested batteries with the correct polarity
(see sensor technical information). The sensor now
sends its measurements for several times in short
intervals and then every 7 minutes.
Open the app, dashboard is displayed. The sensor
Hannover is only for testing purposes and may be
Download the App
deleted. Tap "Add new sensor" and scan the QR
code on the back of the temperature sensor. Then
Download the MOBILE-ALERTS app from "Apple
set a name for the sensor. To set a name, select
App Store" or "Google Play".
the transmitter and then tap on the left area of the
pencil icon in the upper right.
Connect the Gateway
Connect gateway to power supply using the
Read measurements
supplied AC adapter. Connect included LAN cable
with gateway and your router. After about 10 Now you can read the measurements on your
seconds, the Gateway is in operation. The LAN mobile phone.
LED will turn static green.
Troubleshooting
If no DHCP server is available in your network, you
When no sensor readings are displayed in the app,
can configure the gateway in the app
check if the green LAN LED on the gateway is
under the point "Settings" manually.
permanently lit. If not, please check if:
Important: The Gateway should always be put
into operation before starting the sensors!
- The gateway is properly connected to the power
plug, the router and is turned on.
When AC/DC adapter power is OFF, the batteries
and the internal circuitry will keep providing power
for the gateway to receive MA transmitter data, for
- The batteries in the sensor are inserted with the
up to 12 hours. When AC/DC adapter power is
correct polarity.
back, the gateway will then transfer the stored
- Restart the sensor by removing the batteries for a
minute and reinserting, to restart the sensor.
set up and addition - Your phone is connected to the internet.
- The signal is weakened by thick walls and
ceilings. Put the sensor in operation near the
gateway and then locate a suitable location.
Feature
LAN LED (green) :
- Blinking 3 times cyclic : DNS
request is running
- Blinking 2 times cyclic : DHCP
request is running
- Blinking 1 time cyclic : No Ethernet
cable detect / Ethernet down
- ON : ERF-gateway is working and
ready to receive RF frames
- OFF : no Internet connection and
no AC/DC power supply
- Toggle both : Analysing data flash
content, take some seconds
DATA LED (red) :
- Toggle slow : Connecting server,
transfer data
- ON : After reset for a few seconds,
while init. Gateway
- OFF : No activity, application is
waiting until the delay is over to
connect to data server again
- Flashing : MA transmitter data is
received
