Chapter 6
DDC Key in Procedure
6-1

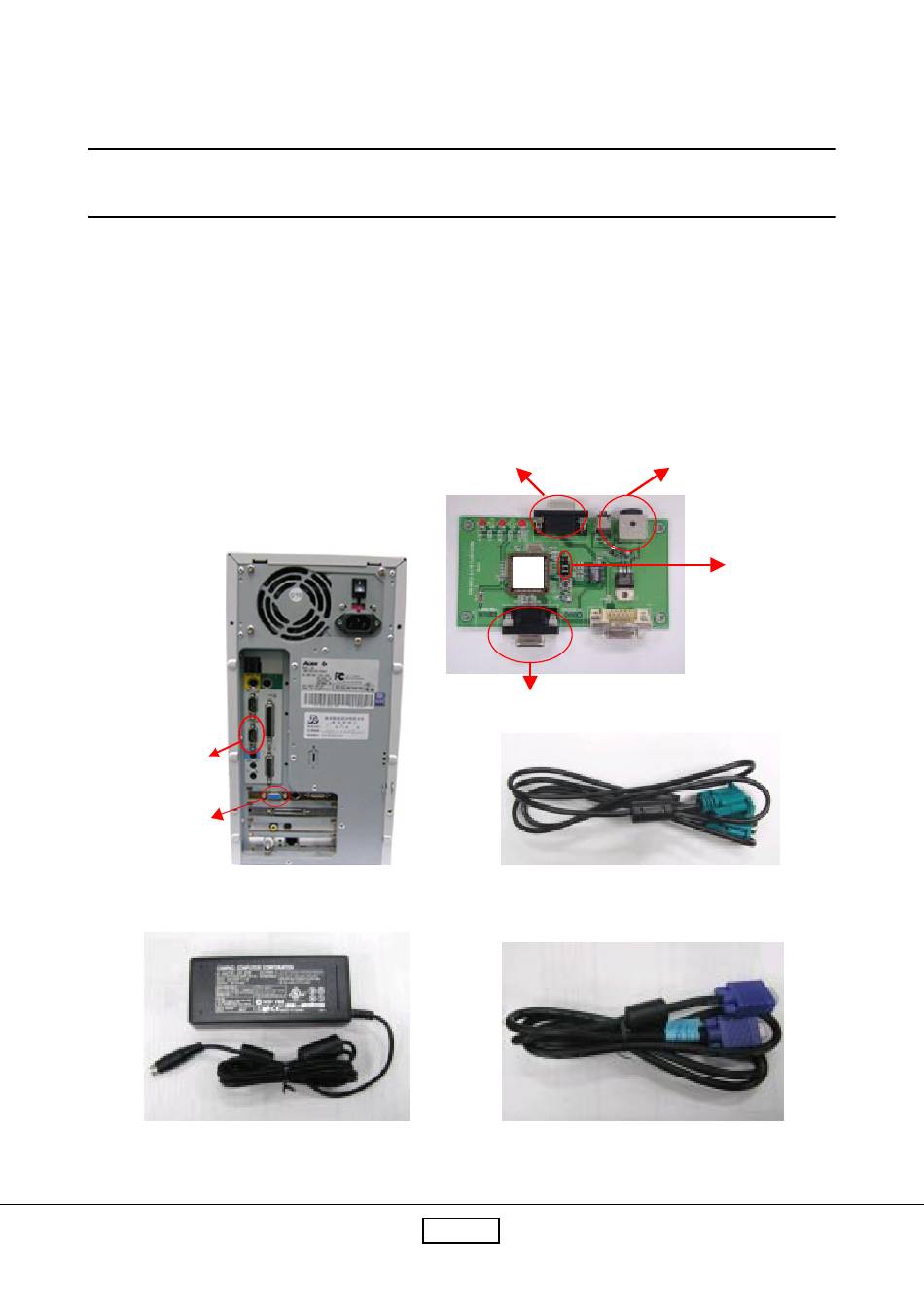

Equipment Needed

1. PC
2. Flash Board (V3)
3. RS232 Cable
4. VGA Cable
5. Power Adapter
6. An additional monitor
COM1: to
RS232 Cable
VGA Port
PC
Power Adapter (P/N:47.56001.501)
Coretronic Corporation
P1: Connected to
COM1 of PC
V3
P2: Connected to VGA Port of PI500
RS-232 Cable (P/N:42.55907.001)
VGA Cable (P/N:42.56109.001)
6-1
JP1: Connected to
Power Adapter
JP3 close
JP4 open
PI500
