SH1 / SH1T / SH2 / SH2T
OPERATING MANUAL
Heavy Duty Bulb Revolving Warning light
Thank you for purchasing Q.Light product.
Please read this manual carefully before installing this system
for safe and long use of the product.
▪ Aluminum housing product with high durability.
▪ Ensuring high revolving durability by applying a small bearing to
the revolving axis.
▪ RPM : 120-140/Min.(Controllable)
▪ Material : Lens-PC, Body-Diecast AL, Reflector-Heat Resisting
ABS, Protection Cage(Option)-SUS316L
▪ Protection Class : IP56
▪ Standard Body Color : MUNSELL NO. : 7.5BG 7/2

1) SH1 / SH1T

▪ Product Specification
Rated
Current
Model
Voltage
DC12V 1.170A 12V15W
SH1
DC24V 0.510A 24V15W
SH1T
AC110V 0.145A 12V15W
(with
AC220V 0.073A 12V15W
Terminal)
*Each weight above mentioned is the net weight of SH1 excluding protection
cage(0.25kg) and terminal box(0.46kg).

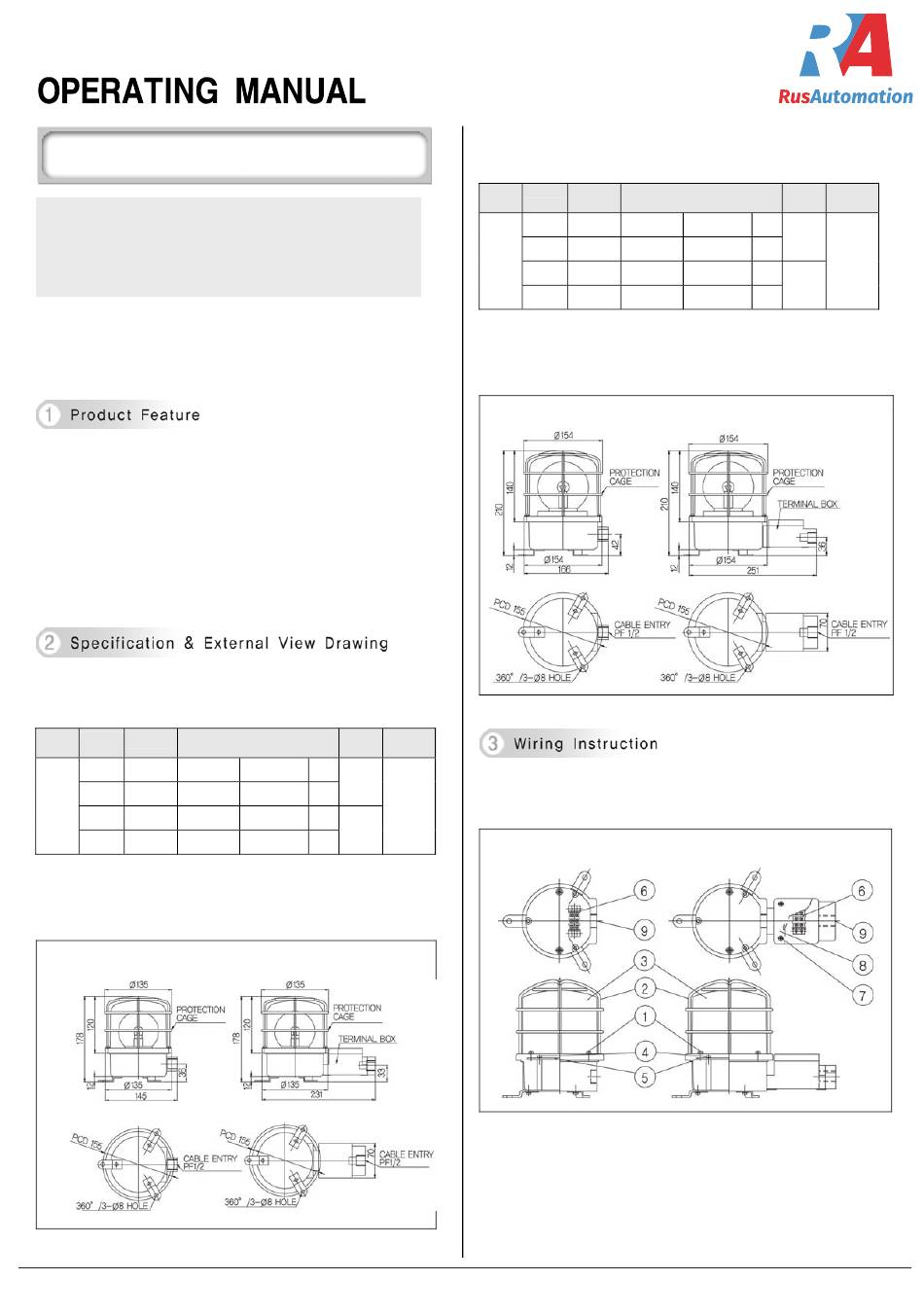

▪ External View Drawing
SH1
ООО "РусАвтоматизация"
Bulb Weight Color
G23 15S 17
Red-R
1.22Kg
G23 15S 18
Amber-A
Green-G
G23 15S 17
1.61Kg
Blue-B
G23 15S 17
SH1T
454010 Россия, Челябинск, Гагарина 5,
тел./факс +7(351)211 64 57
2) SH2/SH2T
▪ Product Specification
Rated
Model Current
Voltage
DC12V 1.170A 12V15W
SH2
DC24V 0.510A 24V15W
SH2T
AC110V 0.145A 12V15W
(with
AC220V 0.073A 12V15W
Terminal)
* Each weight above mentioned is the net weight of SH1 excluding
protection cage(0.29kg) and terminal box(0.46kg).
▪ External View Drawing
SH2
This product has a terminal plate inside body(SH1/SH2) or
terminal box(SH1T/SH2T) for wiring.
SH1/SH2

1) SH1/ SH2

▪ Separate globe ring② and globe③ from the body by loosening
protection cage fastening bolt(M4-4EA)①.
▪ Separate assembling board⑤ by loosening assembling board
fastening bolt(M4 Screw : SH1-2EA, SH2-3EA)④ and make sure
terminal plate⑥.
тел. 8 800 775 09 57
, info@rusautomation.ru, www.rusautomation.ru,
Bulb Weight Color
G23 15S 17
Red-R
1.38Kg
G23 15S 18
Amber-A
Green-G
G23 15S 17
1.77Kg
Blue-B
G23 15S 17
SH2T
SH1T/SH2T
