Summary of Contents for aevit 2.0

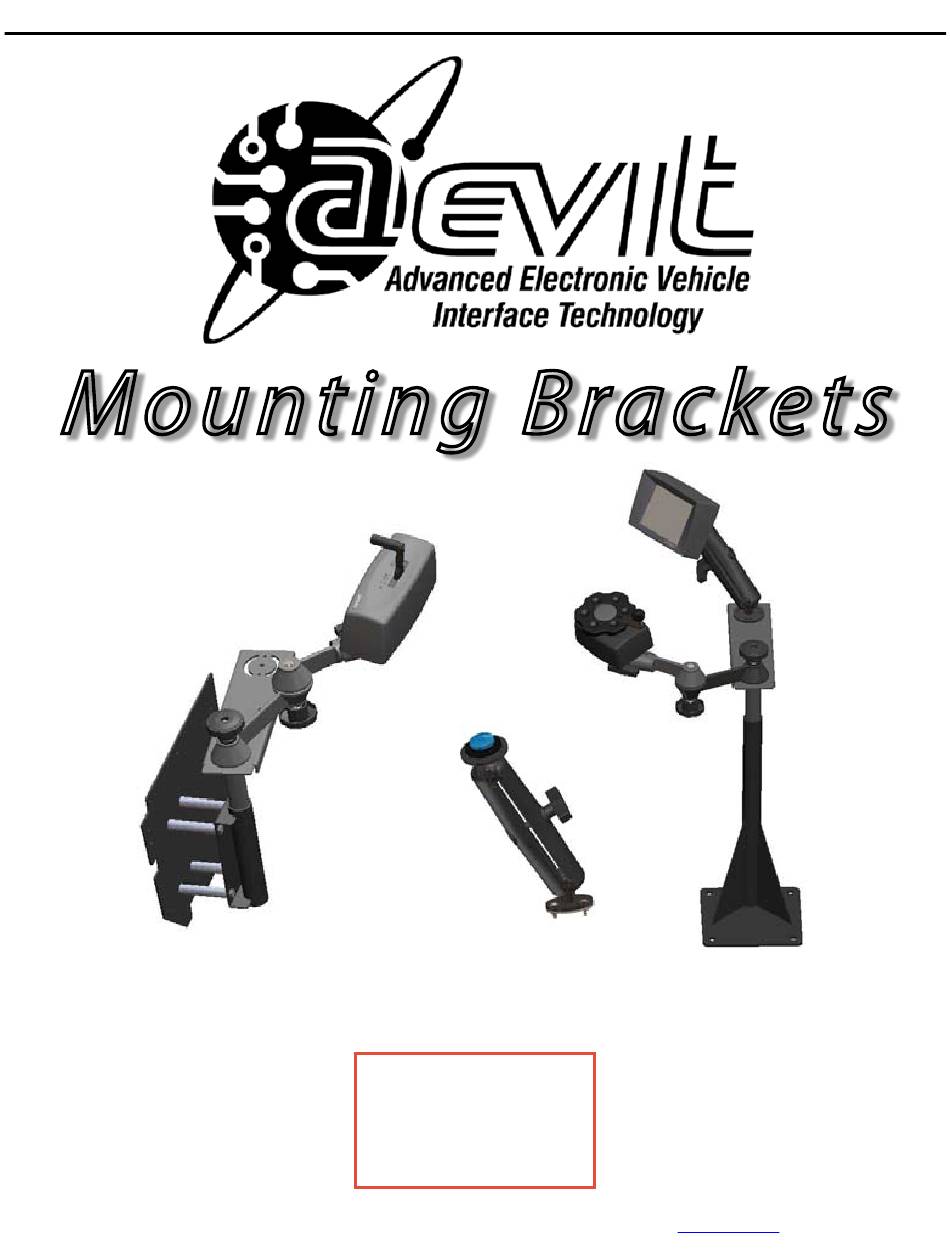

- Page 1 AEVIT 2.0 INSTALL-MOUNTING BRACKETS-071415-REV4 Mounting Brackets INSTALLATION MANUAL INSTALLATION BY EMC CERTIFIED TECHNICIAN ONLY! 26 Gabriel Drive • Augusta, ME • Phone: (207) 512-8009 • Fax: (207) 512-8049 • www.aevit.com...
-
Page 2: Table Of Contents
AEVIT 2.0 Mounting Brackets Installation Manual Table of Contents 1. Introduction 1.1 Overview 1.2 Installing the Mounting Ball Onto Input Devices 2. Primary Inputs 2.1 General Information 2.2 Mounting Base Installation - Floor 2.3 Mounting Base Installation - Door 2.4 Generic Adjustment Installation 2.5 Other Mounting Options... -
Page 3: Introduction
NOTE: ALL AEVIT 2.0 PRIMARy INPUT DEVICES AND ThE AEVIT 2.0 DISPLAy ARE DESIGNED TO hAVE ThE SAME MOUNTING BALL SCREW PATTERN. ThEREFORE, ThIS INSTALLATION STEP ShOULD BE PERFORMED FOR ALL INPUT DEVICES (LEVER, WhEEL, jOySTICK...) AND ThE AEVIT 2.0 DISPLAy. -
Page 4: Primary Inputs
INSTALL ThIS EqUIPMENT IF yOU ARE UNSURE ABOUT ANy STEP IN ThESE INSTRUCTIONS. 2.2 MOUNTINg BASE INSTALLATION - FLOOr (BrkT-AEVIT-FLr) Before installing the Floor Mounting system, verify that the following components are included with the BRKT-AEVIT- FLR mounting kit: (1) Floor Base Plate (4) 3/8”... - Page 5 AEVIT 2.0 Chassis be mounted partially on top of it as shown in the figures below (See your vehicle specific AEVIT 2.0 Installation Manual for information on mounting the AEVIT 2.0 Chassis).
-
Page 6: Mounting Base Installation - Door
INpUT 2.3 MOUNTINg BASE INSTALLATION - dOOr (BrkT-AEVIT-dOOr) Before installing the Door Mounting system, verify that the following components are included with the BRKT-AEVIT- DOOR mounting kit: (1) Door Base Plate (4) 5/16” x 3” hex head Bolts NOTE: (1) Input Device Articulating Arm Bracket (6) 1/4”... - Page 7 FOR USE WITh ThE SPACERS AT FULL LENGTh. IF yOU CUT ThE SPACERS, hOWEVER, YOU wILL NEEd TO prOVIdE A SMALLEr BOLT ThAT WILL OFFER AT LEAST 1/2” OF ENGAGEMENT INTO ThE DOOR BASE PLATE BOSSES. AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL...
-
Page 8: Generic Adjustment Installation
1 to lock WARNING: Quick adjust upper pole FAILURE TO TIGhTEN ALL ADjUSTMENT KNOBS in place COMPLETELy COULD CAUSE AN ACCIDENT RE- FIGuRE 12 - FlOOR sysTEM SULTING IN SERIOUS INjURy AND/OR DEATh. AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL... - Page 9 FIGuRE 15 WARNING: FAILURE TO TIGhTEN ALL ADjUSTMENT KNOBS COMPLETELy COULD CAUSE AN ACCIDENT RESULTING IN SERIOUS INjURy AND / OR DEATh. AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL...
- Page 10 FIGuRE 19 the input devices nor the mounting systems move under normal operating conditions. WARNING: FAILURE TO TIGhTEN ALL ADjUSTMENT KNOBS COMPLETELy COULD CAUSE AN ACCIDENT RESULTING IN SERIOUS INjURy AND / OR DEATh. AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL...
- Page 11 Swivel Bracket will be used as well. EMC recommends that the installer review page 2-5 to familiarize themselves with INPuT DEvIcE the components that make up the Input Device Articulating SwIvEL BRACkET Swivel Bracket assembly. ONLY FIGuRE 22 AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL...
- Page 12 3/8” hole will need to be drilled 7/8” from ei- ther side of the quick Adjust Upper Pole such that the nylon and flat washers of the Input Device Swivel Bracket will not interfere with the support webbing underneath. AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL...
- Page 13 Input Device into the socket of the Input Device FIGuRE 28 FIGuRE 29: INPuT DEvIcE horizontal Swivel Bracket and tighten using the “T” MOuNTING handle as shown in Figure 29. The completed install should resemble Figure 30. FIGuRE 30 AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL...
- Page 14 AEVIT 2.0 Display and switches to operate the secondary functions of the vehicle. Generally, the AEVIT 2.0 Display is mounted to the same quick Adjust Upper Pole as the AEVIT 2.0 Wheel as shown in Figure 31; however, with the hardware provided, it can be installed just about anywhere.
- Page 15 The most commonly used switch to operate secondary functions is the 1.5” Push-Button switch (Figure 33). This switch can be used to operate the 2.0 Digitone, VIC 2.0 and other single secondary functions. The same bracket system used to mount the AEVIT 2.0 Display can be used to mount this single switch.
- Page 16 EACh MOUNTING SySTEM WAS DESIGNED TO BREAK-AWAy UNDER LOADS ThAT ExCEED ThE NORMAL FORCES Ex- ERTED ON ThE INPUT DEVICE. SINCE NO AEVIT 2.0 INPUT DEVICE REqUIRES A FORCE OF MORE ThAN 4 POUNDS, IF ThE BRACKETS ARE INSTALLED CORRECTLy AND TIGhTENED PROPERLy, ThESE BRACKETS WILL REMAIN STATIONARy UNDER NORMAL OPERATING CONDITIONS.
- Page 17 NOTES: AEVIT 2.0 MOUNTING BRACKETS INSTALL MANUAL...
