ASI TekMan AD-30 Multi-Hold Quick Start Manual

Congratulations on purchasing the AD-30 Multi-Hold adapter. This unit was

designed for today's demands and looking to the future. The default setup

for the AD-30 is the "Tone Hold" mode; this mode lets the unit work with

virtually any Analog phone set on the market.

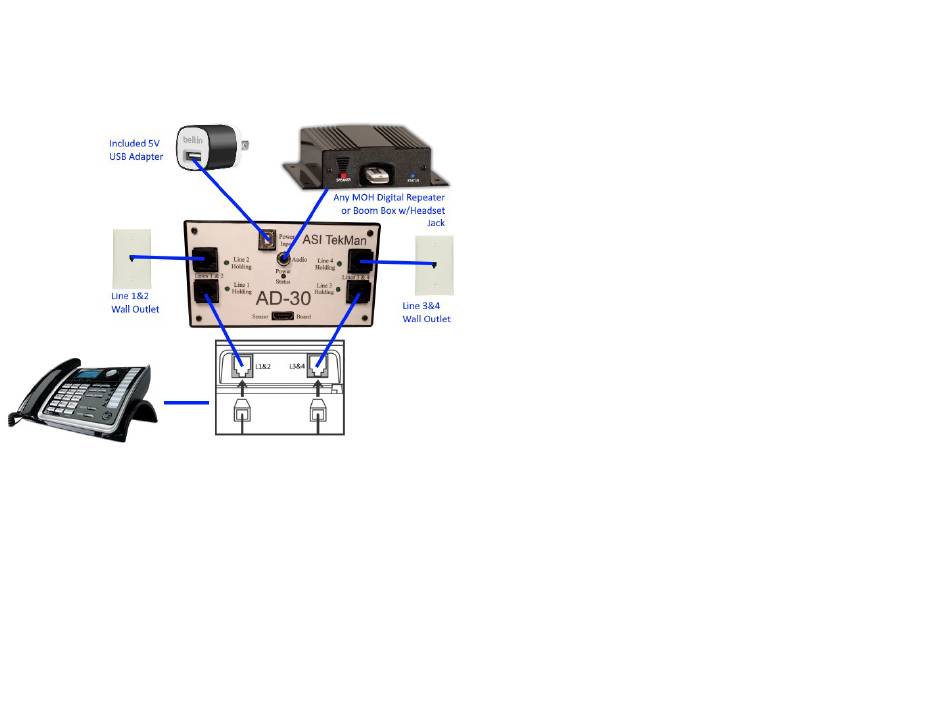

Connections

The AD-30 works with any audio source that has a Headphone or high

power output. We suggest using a Digital MOH Repeater; there are several

available on the internet. You can also use a Boom Box so long as it has a

Headphone output; check it carefully as most units have an Aux In which

won't work. The AD-30 has an RCA input and comes with an RCA to RCA

cable along with a 3.5mm adapter for use with a Boom Box.

The AD-30 is very versatile with 6 basic command modes. The default

mode of the AD-30 is the "Tone Hold" mode, with the default Tone being

the "*". To change a mode, enter any of the following commands while on

one of the phone lines connected to the AD-30:

# # # # 1 – switches the unit to trigger off the *

# # # # 2 – switches the unit to trigger off the #

# # # # 5 – switches the unit to work in "Tone Hang up" mode

# # # # 6 – switches the unit to work in "Tone Hold" mode

# # # # 7 – switches the unit to work in "RCA Hold" mode

# # # # 8 – switches the unit to work in the "Tone" modes

When you switch the unit to trigger off of the # then all the above command

codes change from # # # # to * * * *.

To use the "Tone Hold" mode you simple press the "*" on your phone to

activate the message then press "Hold" (or "Mute" if you don't have a

"Hold" button) on your phone. To release the hold simple pick up the line

then press "*" again.

To use in the "Tone Hang up" mode you press the "*" on your phone then

hang up the phone as if dropping the call. The unit will hold the call until

you pick up the line again.

Using with RCA 2540x, 1x & 2x phones

This mode is called "RCA Hold" mode. In this mode you can combine any of

these phones into one system and simply use the "Hold" button on the

phones to activate the message, then the unit will release when you pick up

the line again. NOTE: These phones "Beep" about every 8 seconds on hold

so the AD-30 will simply play your message along with the beeps; there is

NO way to get rid of the beeps.
