MORNSUN TM CP Series Quick Start Manual

ACTIVE HIGH PRECISION
ISOLATION AMPLIFIER
MILLIVOLT-CLASS POSITIVE AND NEGATIVE
SIGNAL INPUT & POSITIVE AND NEGATIVE
SIGNAL OUTPUT
PART NUMBER SYSTEM
TMXXXXCP
Pa ckag e
Positive an d n eg ative sign al
No distribu tion
Po we r su pp ly
Sign al ou tpu t
Sign al inp ut
m V class sig na l
Isolation tran sdu ce r

SELECTION GUIDE

Model
TM1630CP
TM2630CP
TM4630CP
TM5630CP
TM6630CP
TM7650CP
TM4530CP
TM5530CP
TM6530CP
Note: We could also offer customer design for special input and output as follow:
Power supply:24/15/12VDC;
Input signal:0~±10/±20/±30/±50/±75/±100mV;
Output signal: 0~±5V/±10V.

ELECTRICAL CHARACTERISTICS

Power Supply
Signal Input
Signal Output

TRANSMISSION CHARACTERISTICS

Zero Offset
Gain Error
Temperature Drift
The copyright and authority for the interpretation of the products are reserved by MORNSUN
——TMxxxxCP
RoHS
Power Supply
24V
24V
24V
24V
24V
12V
24V
24V
24V
Power supply
Input consumption
Power protection
Input signal
Input Impedance
Overload
Output signal
Load capacity
0.1%F.S.
0.1%F.S.
≥50mV: 0.0035%F.S./ ; ℃
<50mV: 0.0050%F.S./℃ (-25 ~ +71°C)

FEATURES

l Four-port isolation (Signal input,Signal output, power
supply and isolation power output)
l High accuracy (0.1% F.S.)
l High linearity (0.1% F.S.)
l Isolation voltage(2.5KVDC/60s)
l Extremely low temperature drift (35PPM/°C)Industry
standard(Operating temperature range:-25°C ~
71°C)
l High reliability(MTBF>500,000 hours)

GENERAL DESCRIPTION

The TMxxxxCP series isolation
millivolt-class positive and negative signal input and positive and
negative signal output. These modules, with a high efficiency
micro-power source built-in, can provide power for signal processing
circuit. In the three-wire and four-wire transmitter applications, our
products make customers' design simple and helpfully improve the
room-using ratio of PCB. Adopting electromagnetism isolation
technology, it is available to keep higher accuracy and extremely lower
temperature drift than photocoupler isolation. These modules have
three-port isolation(input, output and power supply),and the isolation
voltage between them is up to 2.5kVDC.
Input Signal Output Signal
±10mV
±20mV
±50mV
±75mV
±100mV
±200mV
±50mV
±75mV
±100mV
(Nominal power supply) ±5%
≤1W
Reverse protection
See product program
≥10MΩ (@m ax input signal)
≤10V
See product program
≥2KΩ
（
@max Output

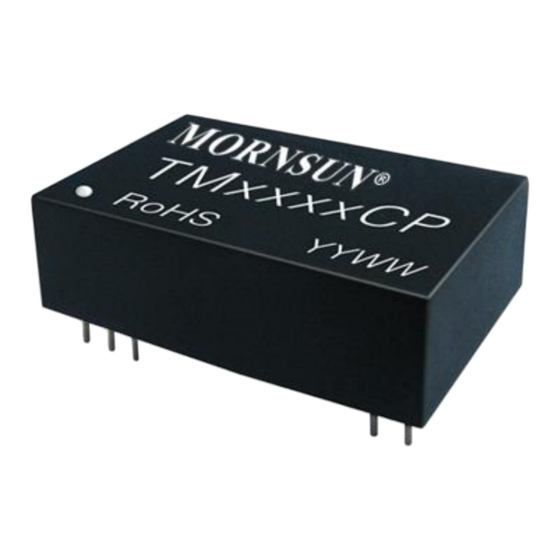

TMxxxxCP
amplifier modules
Channels
±5V
±5V
±5V
±5V
±5V
±5V
±10V
1
±10V
±10V
）
2013.05.08-A/4 Page 1 of 3
have a
1
1
1
1
1
1
1
1
