Bolt – Getting Started Guide October 27, 2019: WestcoastGPS
Bolt – Getting Started Guide
INTRODUCTION

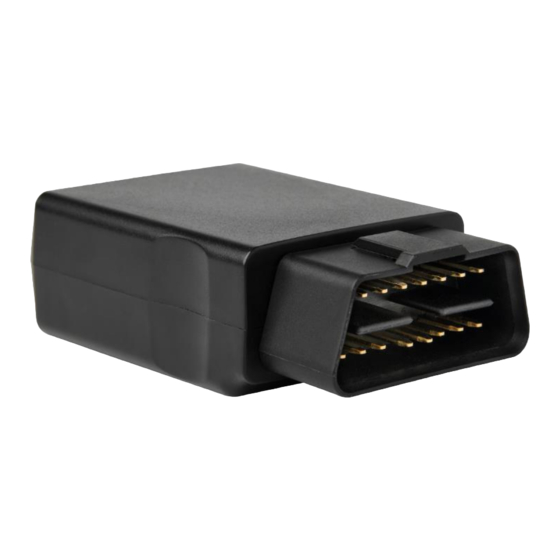

The Bolt is a new compact, plug and play, OBDII tracking device. It is available in 2G and 4G Cat-M1/Bn-
IoT versions.
The Bolt is very simple to install, drawing its power from a vehicle's OBDII port. While it draws its power
from the ODBII port the Bolt does not read OBDII diagnostic data. The bolt is designed to provide
extremely cost-effective tracking and includes the latest GPS and cellular technology to give excellent
performance at an entry level price.
See the product page
https://westcoastgps.com//Bolt-Datasheet-WCGPS.pdf
for more specifications.
You will receive a compact box containing the Bolt, typically the SIM card will already be installed, and
the housing will already be closed. Simply plug the Bolt into your vehicle's OBDII port and you are ready
to go. Should you be required to install the SIM card or swap in a replacement card see the instructions
on the next page.
1 |
P a g e

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bolt and is the answer not in the manual?

Questions and answers

Related Manuals for Westcoast GPS Bolt

Summary of Contents for Westcoast GPS Bolt

  • Page 1 Bolt – Getting Started Guide INTRODUCTION The Bolt is a new compact, plug and play, OBDII tracking device. It is available in 2G and 4G Cat-M1/Bn- IoT versions. The Bolt is very simple to install, drawing its power from a vehicle’s OBDII port. While it draws its power from the ODBII port the Bolt does not read OBDII diagnostic data.

  • Page 2: Closing The Housing

    SIM card yourself or the SIM card has to be replaced. The Bolt uses a Nano SIM card (form factor 4FF). The SIM holder is on the top of the control board which will have to be removed/lifted out of the bottom housing to insert/swap the SIM.

  • Page 3: Getting Online

    GPS aiding data. ▪ Get a GPS fix: the Bolt will attempt to get a GPS fix. You can speed this up by moving to an area with good GPS signal – outdoors with a clear view of the sky.
  • Page 4 Bolt – Getting Started Guide October 27, 2019: WestcoastGPS TRACKING YOUR ASSET There are two methods for tracking your assets, using the Telematics Guru app on your Android or Apple devices and/or by logging into the westcoastgps.com website with the credentials provided to you by WestcoastGPS.
  • Page 5 Bolt – Getting Started Guide October 27, 2019: WestcoastGPS The Tracking Platform is intuitive and easy to use. Navigate using the tabs across the top or by clicking on the balloons. If you need to return to this page simply click on the WestcoastGPS logo on the top left.

  • Page 6: Address Book

    Bolt – Getting Started Guide October 27, 2019: WestcoastGPS ADDRESS BOOK Alerts are an important component of managing your assets and to take advantage of Alerts you first have to do a few things, the most important being to set up your address book. Click on the “Address Button”...
  • Page 7 Bolt – Getting Started Guide October 27, 2019: WestcoastGPS GEOFENCES Setting up a Geo-fence is easy. From the main menu (which you can reach by clicking the WestCoastGPS logo on the top left corner) select Geo-fences as shown below: Begin typing an address and matching options will appear. Select the correct one as shown:...
  • Page 8 Bolt – Getting Started Guide October 27, 2019: WestcoastGPS Once you have clicked on your starting point the geo-fence shape will appear and you can adjust the shape by dragging any of the nodes shown by arrows below: Remember that at least three points must be defined to create an area. Be sure to click the starting point to close the shape.
  • Page 9 Bolt – Getting Started Guide October 27, 2019: WestcoastGPS ALERTS Setting up an Alert is easy. From the main menu (which you can reach by clicking the WestCoastGPS logo on the top left corner) select Alerts as shown below: Click on “New Alert Wizard”...
  • Page 10 Bolt – Getting Started Guide October 27, 2019: WestcoastGPS Follow the prompts to set up which asset (device) you want to use for the Alert – in this case the Bolt and the email address or addresses you want the Alert to be sent to.
  • Page 11 This guide introduces many of the Bolt and Tracking Platform features. If you have unique tracking needs, have any problems, or have questions related to using the Bolt, or any of our other products, please do not hesitate to contact us at info@westcoastgps.com...
