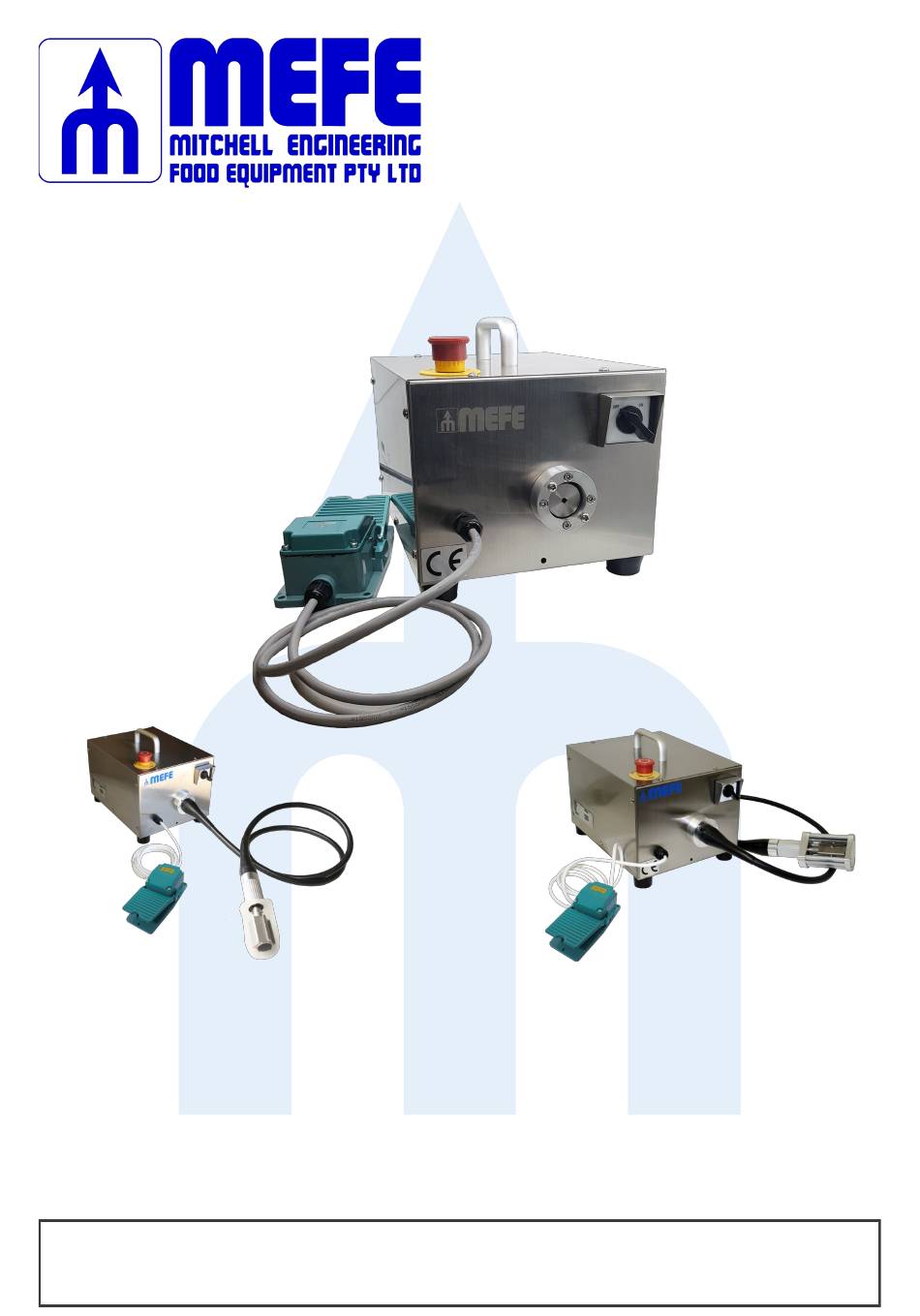

- Page 1 Operation Manual Electric Scaler / Scraper / Shaver CAT 200BC / CAT 200BCEPS / CAT 200BCES Revision 6 MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 1 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au Free AU 1800 669 006...
-
Page 2: Table Of Contents
3.8 Starting Up and Stopping ..................8 4. Instructions for Use ......................8 4.1 General Instructions ....................8 4.2 CAT 200BC Scaling Fish ..................... 9 4.3 CAT 200BCEPS Animal Scraping ................9 4.4 CAT 200BCES Animal Shaving ................... 9 4.5 Cleaning and Washing ....................9 4.6 Maintenance ...................... -
Page 3: Introduction
Declared A-weighted Emission Sound Pressure Level, IpAd, in dB re 20 μPa, at the operators position Values determined according to specific test code ISO 3746. MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 3 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au... -
Page 4: Machine Dimensions
This information however will enable the machine user to make a better evaluation of hazard and risk. 1.3 Machine Dimensions CAT 200BC / CAT 200BCEPS / CAT 200BCES 425mm 1715mm 165mm... -
Page 5: Labelled Diagram Of Parts
2.1 Direction of Rotation When viewed from the front, the SCALING/SHAVING/SCRAPING SPINDLE should rotate anti-clockwise MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 5 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au... - Page 6 Shaving / Scraping / 200BC3070 Shaver Hand piece Complete MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 6 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au Free AU 1800 669 006...
-
Page 7: Choosing The Appropriate Location
After connecting the power wires it is necessary to check that they are connected to the correct connection points. After checking this turn on the switch, step on the foot switch and check to see if the scale knife is rotating. MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 7... -
Page 8: Operation
• Check that the rubber tube is not kinked. • Do not touch the body of the machine during use. MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 8 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au... -
Page 9: After Use
Stop stepping on the foot switch to cease the knife. Then turn the switch off. 4. Instructions for Use 4.1 General Instructions CORRECT USE INCORRECT USE MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 9 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au... -
Page 10: Cat 200Bc Scaling Fish
4.2 CAT 200BC Scaling Fish Begin by placing the fish on a study surface/table. Using your left hand, take hold of the fish by its head. Hold the handle in your right hand and move it gently along the body of the fish, starting at the tail then towards the head. Make sure not to kink the rubber tube. -
Page 11: Cleaning And Washing
(a) Use a fine file to sharpen the teeth of the knife (b) Replace the knife Incorrect or insufficient scalding 6. Exploded Drawing Diagram MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 11 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au... - Page 12 200BC 20C Drive Flex Casing 1.5M Long 200BC18 Transmission Shaft 200BC 20E Drive Flex Casing 2M Long 200BC35 Handle Bush 200BC19 FLANGE Connecting Plate MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 12 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au...
-
Page 13: Spare Parts
200BC35 200BC29 200BC34 Handle—Side View Bush—Top View 200BC3070 Shaver Hand piece Complete 200BC30 200BC35 MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 13 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au Free AU 1800 669 006... - Page 14 Screw Transmission Shaft Switch Flange Emergency stop Flexible wire set Big Scale knife Option MEFE—Mitchell Engineering Food Equipment Pty Ltd Page 14 23 Storie Street Clontarf QLD 4019 Australia +617 3283 4536 www.mefe.com.au | info@mefe.com.au Free AU 1800 669 006...
