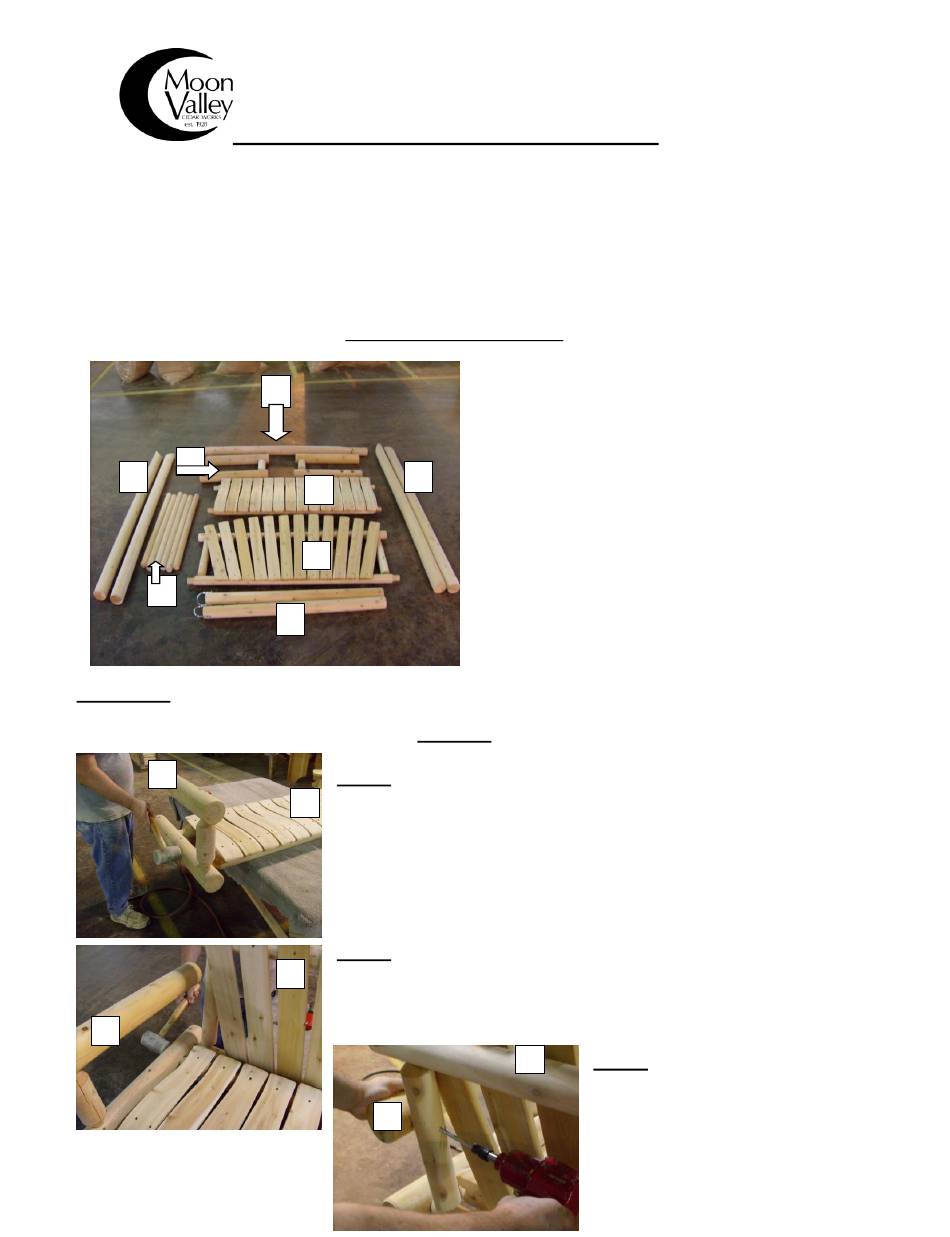

M-100 5' Lawn Swing Assembly Instructions
NOTE: Please check contents and read directions carefully before assembly. If any items are
missing or damaged, do not take the product back to the store. Call Moon Valley customer
service at 313-766-4950 and we will correct the problem as promptly and as efficiently as
possible. Also, checking or cracking of the logs is a natural part of the drying aspect of cedar.
This does not affect the structural integrity of the wood. This natural occurrence enhances the
F
C
E
Tools Needed: Rubber Mallet or Hammer, ½" Socket, 11mm Socket, Socket Wrench, Drill or Screwdriver, Tape
Measure
F
F
rustic beauty of the product.
5' Lawn Swing Components
D
C
A
B
G
Assembly
Step 1: Attach both swing arm assemblies (F) to swing seat (A).
Align the two doweled ends of swing seat (A) with the two holes
A
in the swing arm assembly (F). Tap arms into place using
rubber mallet or hammer. If using a hammer, be sure to pad
impact area to avoid damage to the product.
Step 2: Attach pre-assembled seat back (B) to remaining holes at
the rear of arm assemblies (F). Tap arms into place with rubber
B
mallet or hammer.
F
(1) Pre-Assembled Seat (A)
(1) Pre-Assembled Seat Back (B)
(4) Swing Legs (C)
(1) Swing Frame Top Pole (w/ attached hooks) (D)
(6) 35" Braces (E)
(2) Swing Arm Units (F)
(2) Swing Hangers w/metal attachments (G)
3 ½"Lag Bolts
see attached hardware sheet
5" Lag Bolts
see attached hardware sheet
4" Lag Bolts
see attached hardware sheet
7 ½" Machine Bolts
see attached hardware sheet
5/16" Washers
see attached hardware sheet
5/16" Nuts
see attached hardware sheet
2" Screws
see attached hardware sheet
¼" Washers
see attached hardware sheet
Square-Head Drill Bit
see attached hardware sheet
Step 3: Place the back at an
B
angle comfortable for the user
and use 3 ½" lag bolts to
secure the arms (F) to the seat
back (B) as shown in the
photo. Use 5/16" washers
when inserting lag bolts.
Advertisement
Table of Contents
Related Manuals for Moon Valley M-100
Summary of Contents for Moon Valley M-100
- Page 1 NOTE: Please check contents and read directions carefully before assembly. If any items are missing or damaged, do not take the product back to the store. Call Moon Valley customer service at 313-766-4950 and we will correct the problem as promptly and as efficiently as possible.
- Page 2 Step 4: Attach swing hangers (G) to arm assemblies (F) using 5” lag bolts. Align pre-drilled holes on swing hanger (G) and fasten at 11 ½” in from front of arm rest and 12 ¾” in from front of lower arm rest(F). Step 5: Install 2”...
- Page 3 Moon Valley customer service at 313-766- 4950. Thank you for your Moon Valley purchase and we hope that you enjoy your Lawn Swing. To view other Moon Valley products, please contact your local dealer or visit us at www.moonvalleycedarworks.com.
- Page 4 NOTE: Please check contents and read directions carefully before assembly. If any items are missing or damaged, do not take the product back to the store. Call Moon Valley customer service at 313-766-4950 and we will correct the problem as promptly and as efficiently as possible.
- Page 5 In order to maintain the stained items, it is recommended to wash and dry the areas then re-apply a coat of stain. Moon Valley supplies their stain in quart cans which can be purchased from your local dealer.
