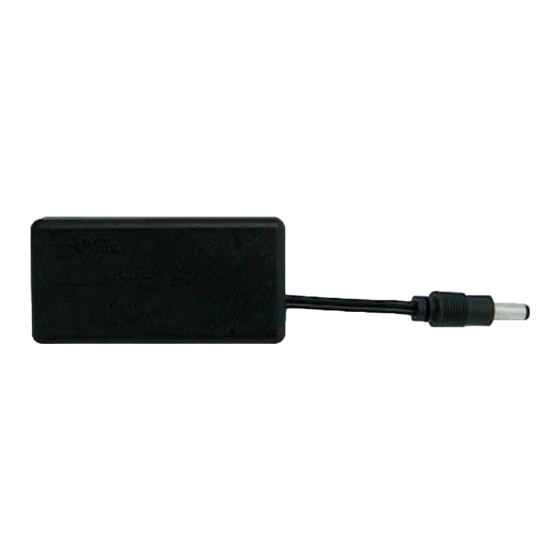

The RF-LPS is a low power RF controlled switch which draws only 90µA! Primarily intended as a remote
controlled device for battery saving applications, the RF-LPS is designed to remotely connect and dis-
connect the (battery) power supply to a connected device. The RF-LPS is used in conjunction with the
2CH-REML two channel RF remote transmitter. Pressing the GREEN button on the remote will cause
the RF-LPS to pass the external (battery) power supply of the connected device, turning it ON. Pressing
the RED button interrupts the external (battery) power to the connected device, turning it OFF. The RF-
LPS is constantly powered by two internal Lithium-Ion batteries lasting up to sixteen months. The RF-
LPS is ideal as a power saving (retrofit) interface for applications that are usually constantly powered, but
are not being used for continuous duty.
Features
• Low current consumption (typically 90µA)
• Long battery life: continuous operation up to
16 months off internal batteries
• Switches any supply from 5V
• Can switch external loads up to 400mA
• For higher currents, a relay may be used to
switch the power supply
• Simple series connection between load
power supply and load device
• Works in conjunction with the 2CH-REML
handheld RF remote radio transmitter
• Operates on 433.92MHz
• Receiver has -94dBm sensitivity
• Open Field Range of up to 400 feet
• 8 bit selectable address
Without the RF-LPS, the remote device is constantly on, drawing maximum current
ON
OFF
ABACOM Technologies, Inc.
*90µA* Low Power RF Controlled Switch
to 35V
dc
dc
Supply
Supply

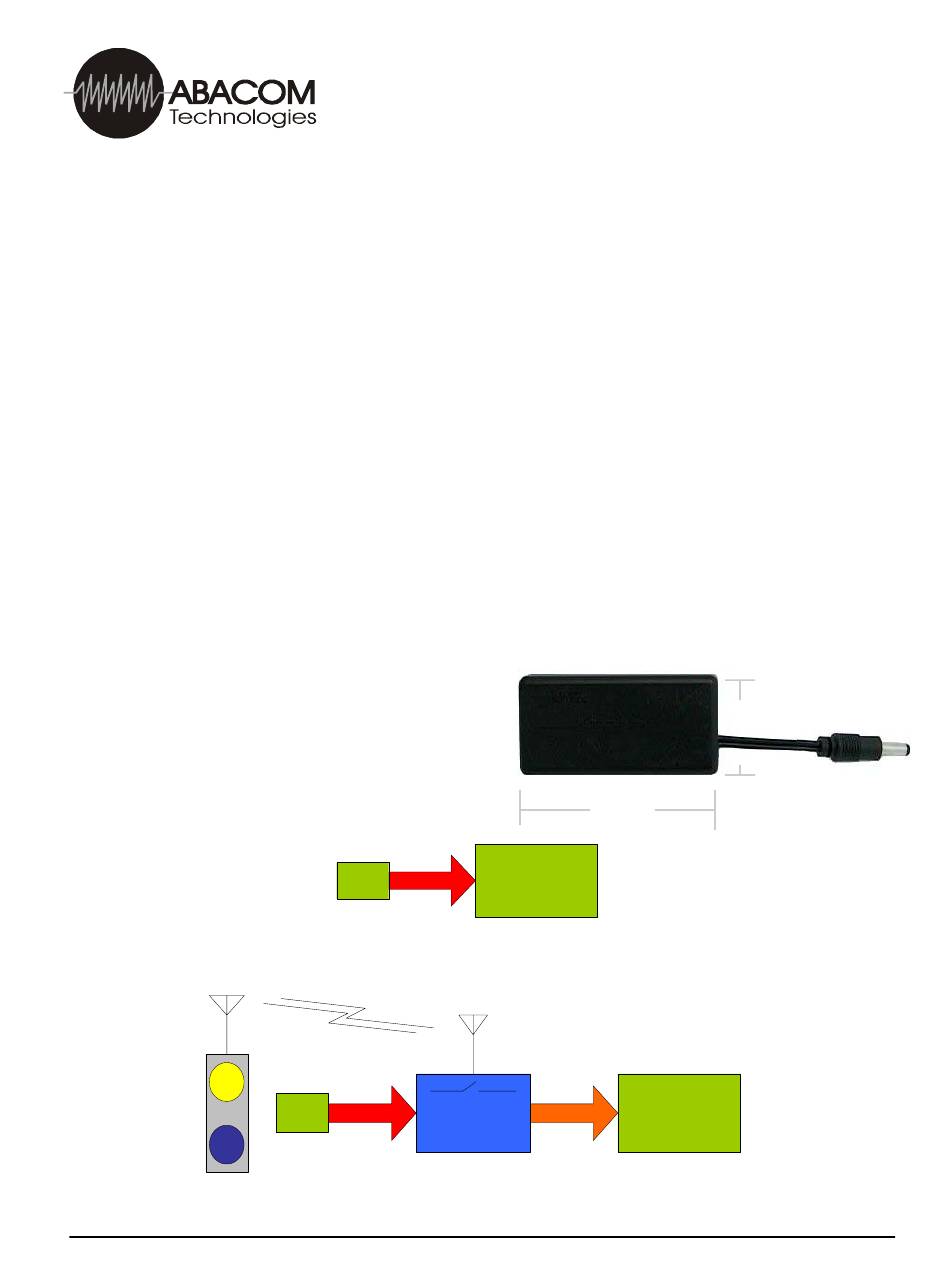

With the RF-LPS, the supply is switched to the load via RF remote control.
When OFF, the supply drain is only 90 microamps !
•
383 Bering Ave • Etobicoke • ON • M8Z 3B1 • Tel +1(416)236-3858 • Fax +1(416)236-8866
www.abacom-tech.com
Typical Applications
• Low power remote switch
• Switch devices ON/OFF in areas which are
difficult to reach
• Conserve battery power in remote locations
Height: 20mm
80mm
External Device
RF-LPS
Load Supply O/P
External Device/Load
40mm
.
