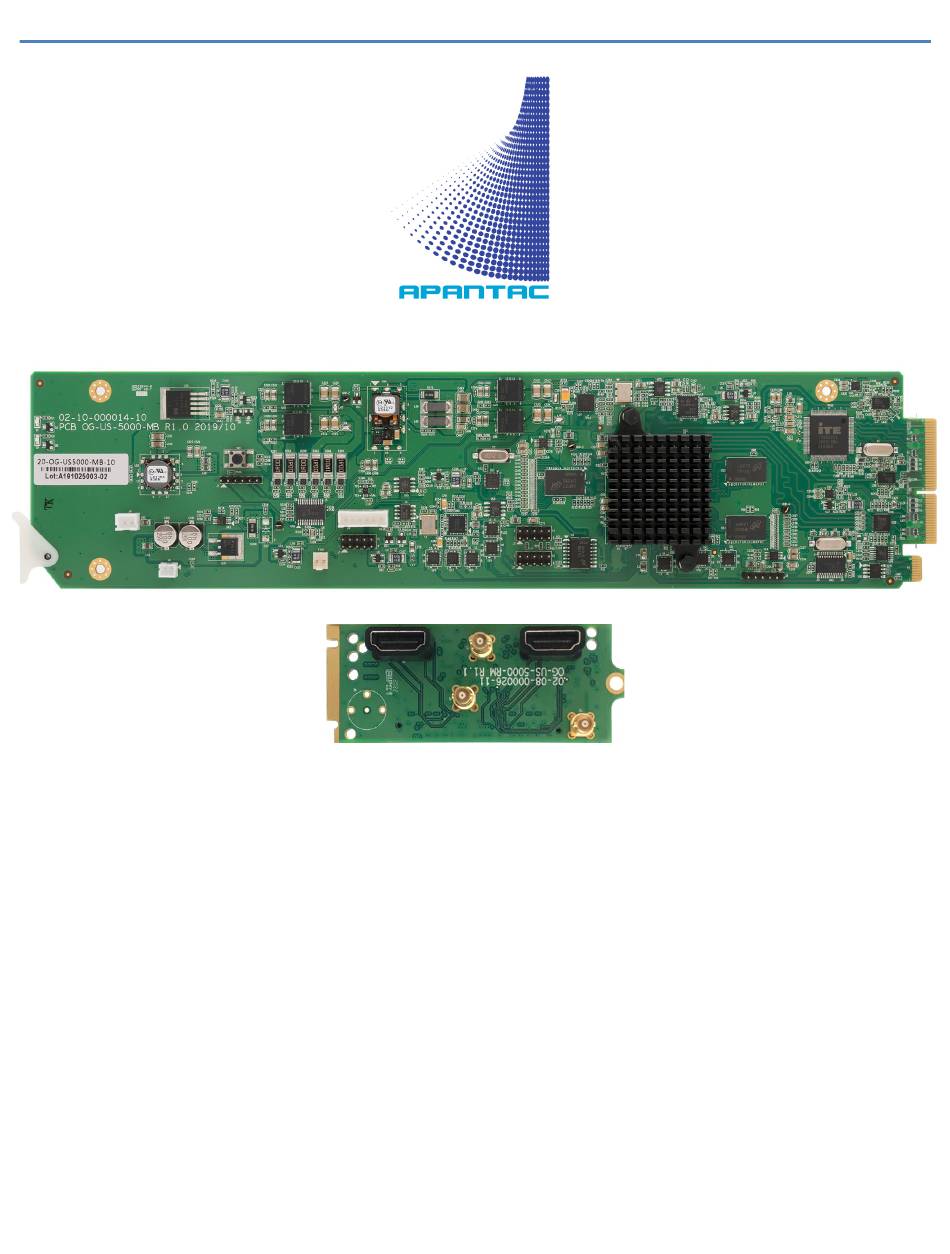

OG-US-5000 User Manual Contents: 1 x OG-US-5000-MB, main board 1 x OG-US-5000-RM, rear module 1 x 75 ohm Terminator 1 x Screw and washer APANTAC LLC www.apantac.com...
Connect an HDMI video source to the HDMI video input connector with any UHD/4K HDMI cable. Notes: • The OG-US-5000 video input is not auto-detecting. The unit must be configured to identify which video input source is to be processed (HDMI or SDI). •...
OG-US-5000 User Manual Indicators: SDI Input Status Indicator: • Blinking-green* when the OG-US-5000 has recognized and locked on to the SDI video input signal. • Solid green, no signal recognition. HDMI Input Status Indicator: • Blinking-green* when the OG-US-5000 has recognized and locked on to the HDMI video input signal.
The openGear frame’s control card communicates to the individual openGear cards via the frame’s internal CANBUS (Controlled Area Network). CANBUS communicates to the frame’s slots and all control and configuration of the OG-US-5000 cards is through the Dashboard- CANBUS channels.
‘Software Rev’, ‘FPGA Version’, and ‘Firmware Rev’ items indicate the currently installed firmware of the OG-US-5000. These values should appear as dates similar to shown above. If they show as ‘0’ or not at all, this may indicate a hardware failure, power cycle the card and check whether firmware numbers are restored.
Input Signal: Indicates whether the OG-US-5000 has detected and locked-on to the incoming video signal (either SDI input or HDMI input, as configured). SDI Output: Indicates whether the OG-US-5000 is generating an SDI video signal on the outputs. Requires a successful Input Video Signal lock.
OG-US-5000 User Manual Configuration Tab: Mode: The OG-US-5000’s video input is not auto-detecting. The card must be configured for which input to pro- cess. The mode choices are: • SDI to SDI conversion; chooses the SDI video input signal for conversion to both HDMI and SDI outputs.
Genlock: The OG-US-5000 model includes the feature of locking the output video signal timing to the openGear frame’s refer- ence signal. This feature can be Enabled or Disabled. (Also refer to the Signal tab section) Notes: ...
OG-US-5000 User Manual Display Tab: Extended Display ID (EDID): The HDMI video input port of the US-5000 includes a programmable EDID. DVI and HDMI sources will read this EDID and detect the US-5000 as a monitor. The US-5000 EDID can be set to the generic, factory set EDID or it can copy the EDID of any monitor attached to its HDMI output.
Note: to utilize Ethernet networking directly to the Apantac OG-US-5000 the openGear frame must have an ‘Advanced Networking’ control card. This control card includes an internal Ethernet switch in addition to the openGear’s standard CANBUS communications utilized by the Dashboard software.
For instance; if you connect the source to a monitor it may display fine because it is producing a signal appropriate for that monitor. When you move the source cable from that monitor to the OG-US-5000 it may very well change the signal it is outputting because it is now seeing a different EDID.
OG-US-5000 User Manual Specifications: Input HDMI or SDI Output HDMI and SDI SDI Output YUV 422, 10-Bit HDMI Output RGB 444, 8-bit Genlock Analog black burst via the openGear frame Control Dashboard SDI video ports HD-BNC (high density BNC connector size)
Apantac LLC (herein after referred to as “Apantac”) warrants to the original purchaser of the products manufactured by Apantac (the “Product,”) will be free from defects in material and workmanship for a period of three (3) year from the date of shipment of the Product to the purchaser.
