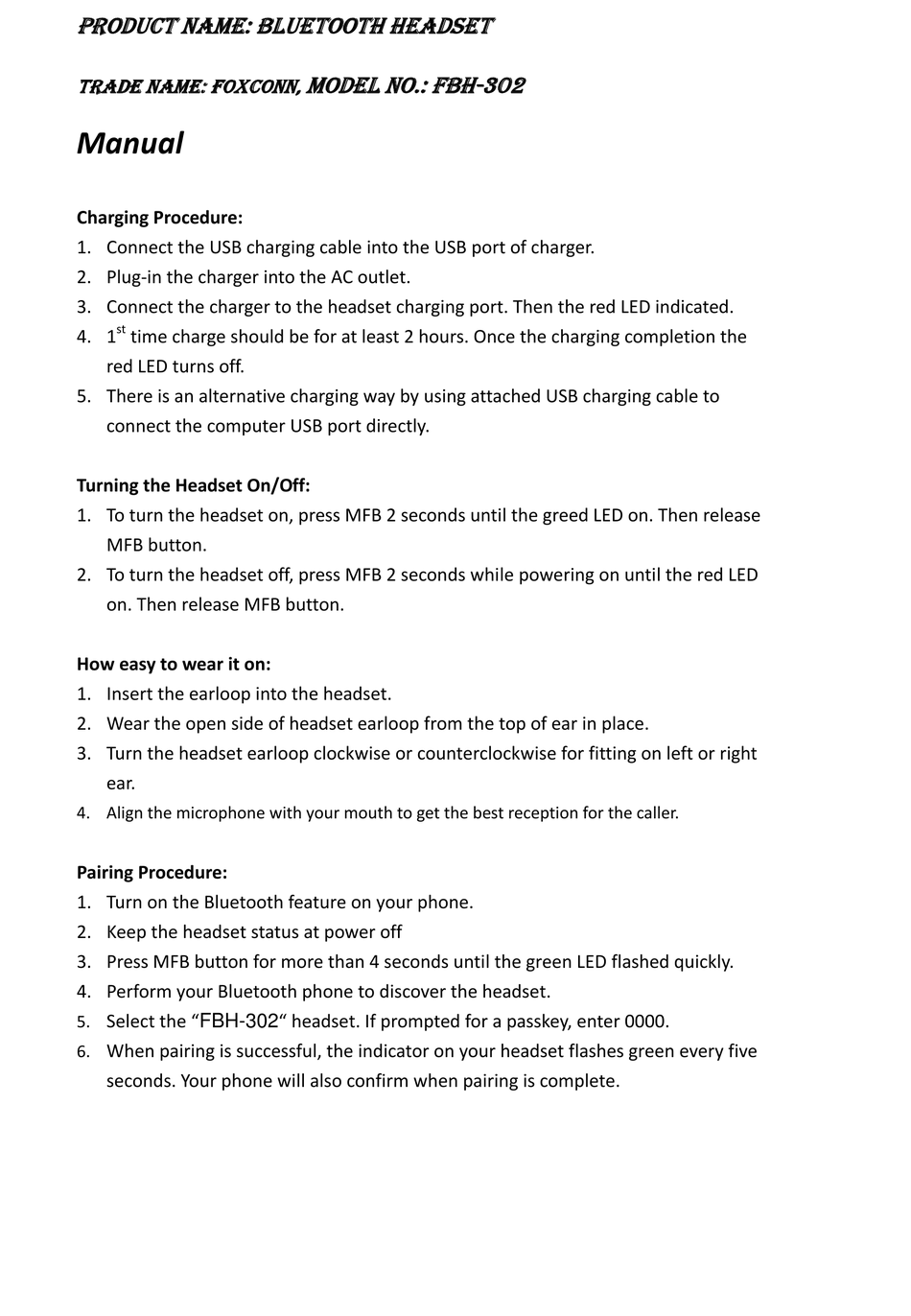

Foxconn FBH-302 Manual

PRODUCT NAME: BLUETOOTH HEADSET
TRADE NAME: FOXCONN,
Manual
Charging Procedure:
1. Connect the USB charging cable into the USB port of charger.
2. Plug‐in the charger into the AC outlet.
3. Connect the charger to the headset charging port. Then the red LED indicated.
st
4. 1 time charge should be for at least 2 hours. Once the charging completion the
red LED turns off.
5. There is an alternative charging way by using attached USB charging cable to
connect the computer USB port directly.
Turning the Headset On/Off:
1. To turn the headset on, press MFB 2 seconds until the greed LED on. Then release
MFB button.
2. To turn the headset off, press MFB 2 seconds while powering on until the red LED
on. Then release MFB button.
How easy to wear it on:
1. Insert the earloop into the headset.
2. Wear the open side of headset earloop from the top of ear in place.
3. Turn the headset earloop clockwise or counterclockwise for fitting on left or right
ear.
4. Align the microphone with your mouth to get the best reception for the caller.
Pairing Procedure:
1. Turn on the Bluetooth feature on your phone.
2. Keep the headset status at power off
3. Press MFB button for more than 4 seconds until the green LED flashed quickly.
4. Perform your Bluetooth phone to discover the headset.
Select the "FBH-302" headset. If prompted for a passkey, enter 0000.
5.
When pairing is successful, the indicator on your headset flashes green every five
6.
seconds. Your phone will also confirm when pairing is complete.
MODEL NO.: FBH-302
