Frequency
Pressure Range
Temperature Range
Operating Humidity
Operating Temperature
Storage Temperature
Mounting the Tire with Transmitter on Wheel Rim
1. Fasten Transmitter on the Wheel Rim
1st.
2nd.
Note：It is recommended that the location of each transmitter be
3rd.
TPMS_TX

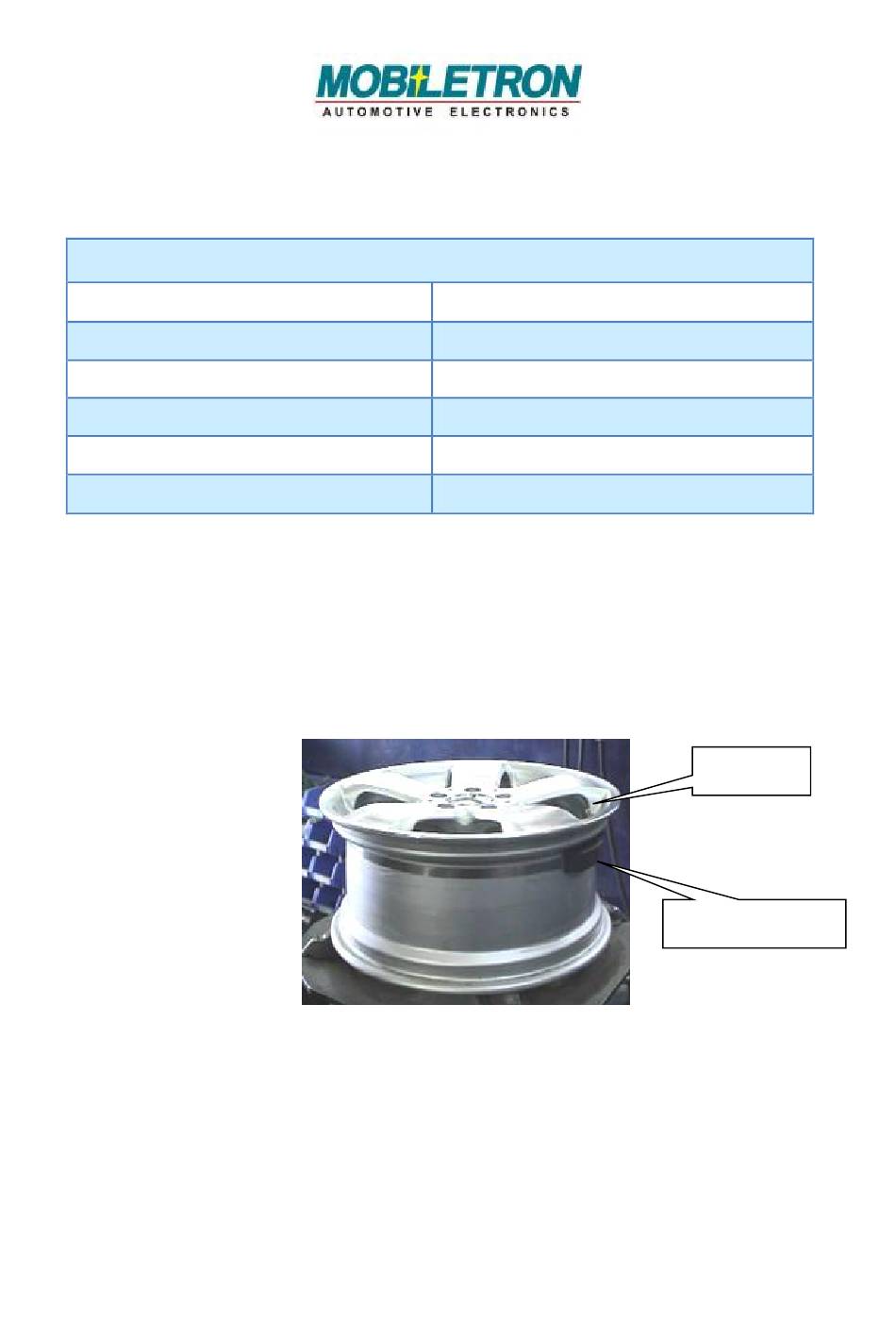

TX026 User's Manual
Specification
Pass Clamping Strap through Transmitter。
Position the Transmitter in the lowest area of the
concave center well near the valve。
recorded to avoid possible damage when tires need to be
removed。
Attach the Clamping Strap end to the clamp by
advancing the Worm Gear Clamp with a socket driver
or screwdriver ； tighten the Clamping Strap until
secured.。
433.92 MHz
100~1500 kPa
-40 ~125℃
Max. 95%
-40 ~105℃
-40 ~125℃
Valve
Transmitter
